VTrak Quick Start Guide
The rear rail slides inside the front rail. The rails are riveted fitted together
and use no adjustment screws. The rails are marked "Left front" and Right
front."
3. Attach the mounting rail assemblies to the outside of the rack posts, using
the supplied screws & cage nuts.
Be sure the front rail support is on the bottom facing inward.
Press rail flanges flush against rack posts to assure correct alignment before
you tighten the screws & cage nuts.
Tighten the screws & cage nuts.
4. Place the VTrak subsystem onto the rails.
This step requires at least two persons.
5. Secure the VTrak subsystem to the rack through the upper hole in each
handle, using the supplied screws & cage nuts.

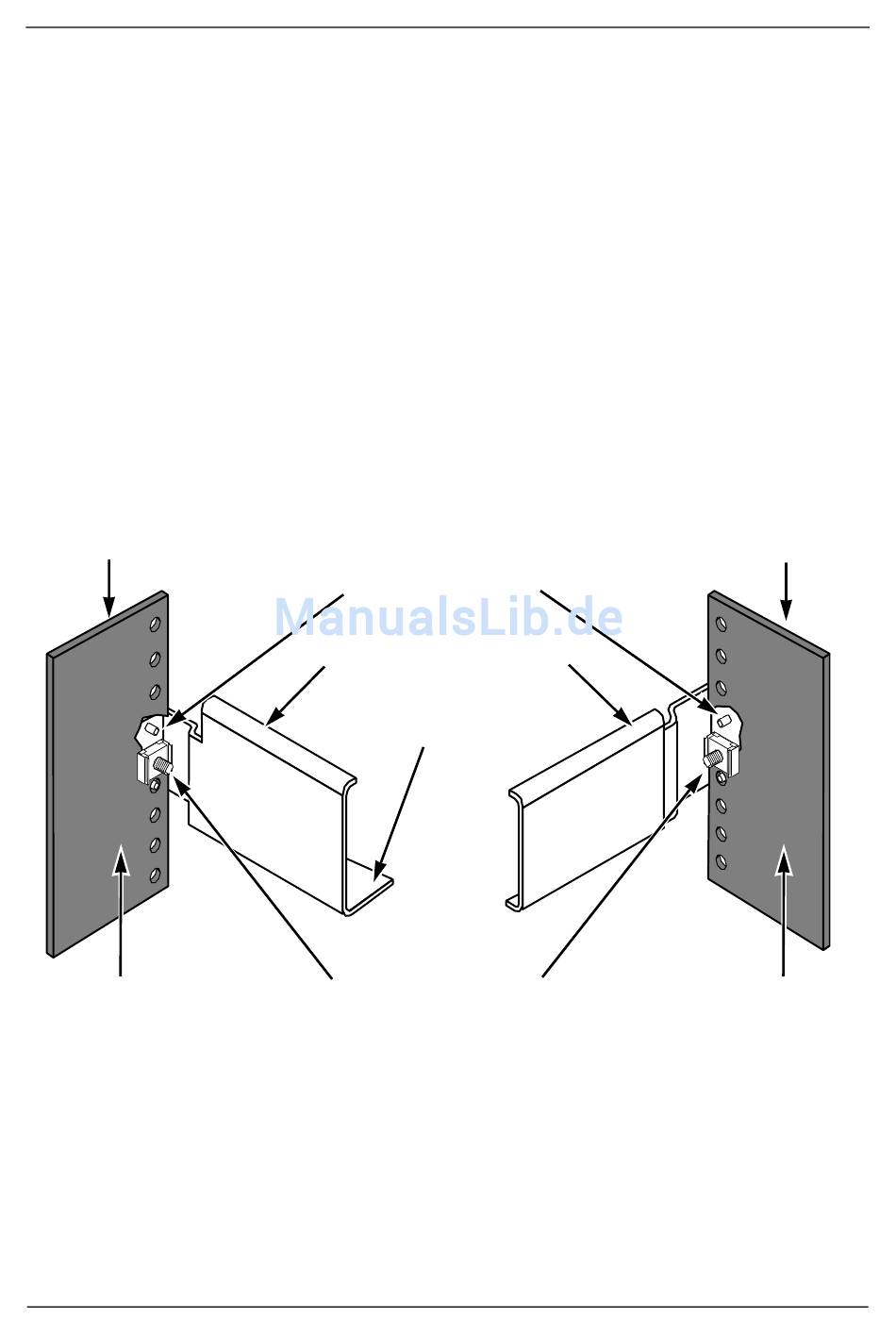

Figure 2. Rack mount assembly diagram
Rack front post
Inside of post
Note that only the front rail has a support for the subsystem.
6. Remove the drive carriers from their packing and install them into the drive
bays of the VTrak enclosure. See Figure 3 on the next page.
7. Plug in the power supply cords.
Alignment pins
two on each flange
Front rail
Support for
subsystem
Attaching screws & cage nuts
(included)
6
Rear rail
Rack rear post
Inside of post
