Promise Technology VTrak E-Class Series Kurzanleitung Seite 25

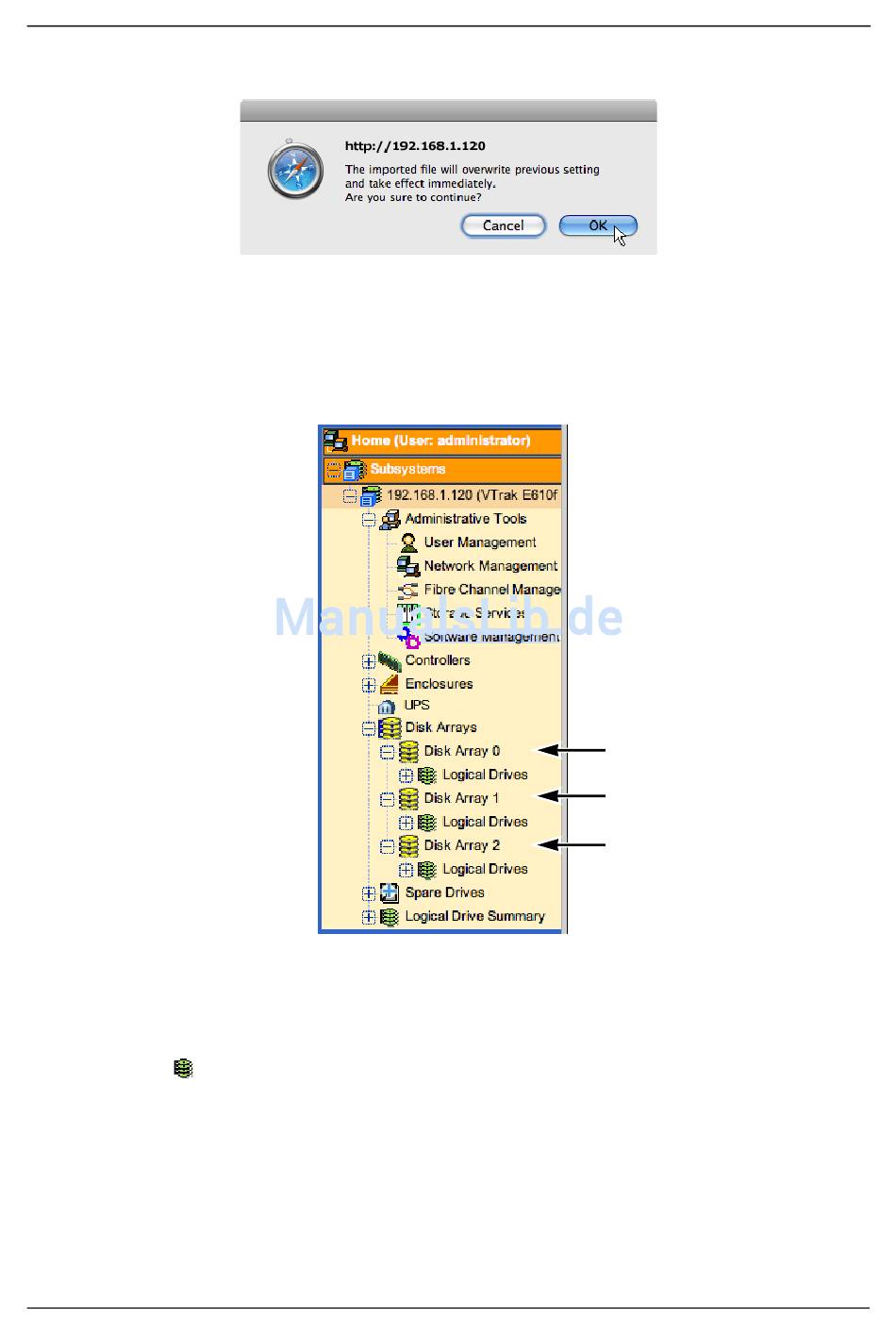

Figure 24 Warning box
The configuration script takes about 30 to 45 seconds to upload and run.
When the script is done, new disk arrays and logical drives appear in
Tree View.
Figure 25 An example of Tree View after running a configuration script
The exact appearance of Tree View depends upon how you set up your
system and which script you chose.
Your VTrak system is now configured and ready to use.
Click Logical Drives Summary in Tree View to see the full representation
of your new logical drives.
Task 6: Configuring the VTrak
25
Disk arrays
and logical
drives have
been added
