Task 4: Powering On the System

There is a specific sequence to follow when you power on your VTrak and Mac
system. See Figure 12 below or Figure 13 on the next page.
Power on your system components in the following sequence:
1. All VTrak J-Class expansion chassis
2. The VTrak E-Class subsystem
3. The Mac system
The VTrak takes a few minutes to fully boot-up and become available to the Mac
system.

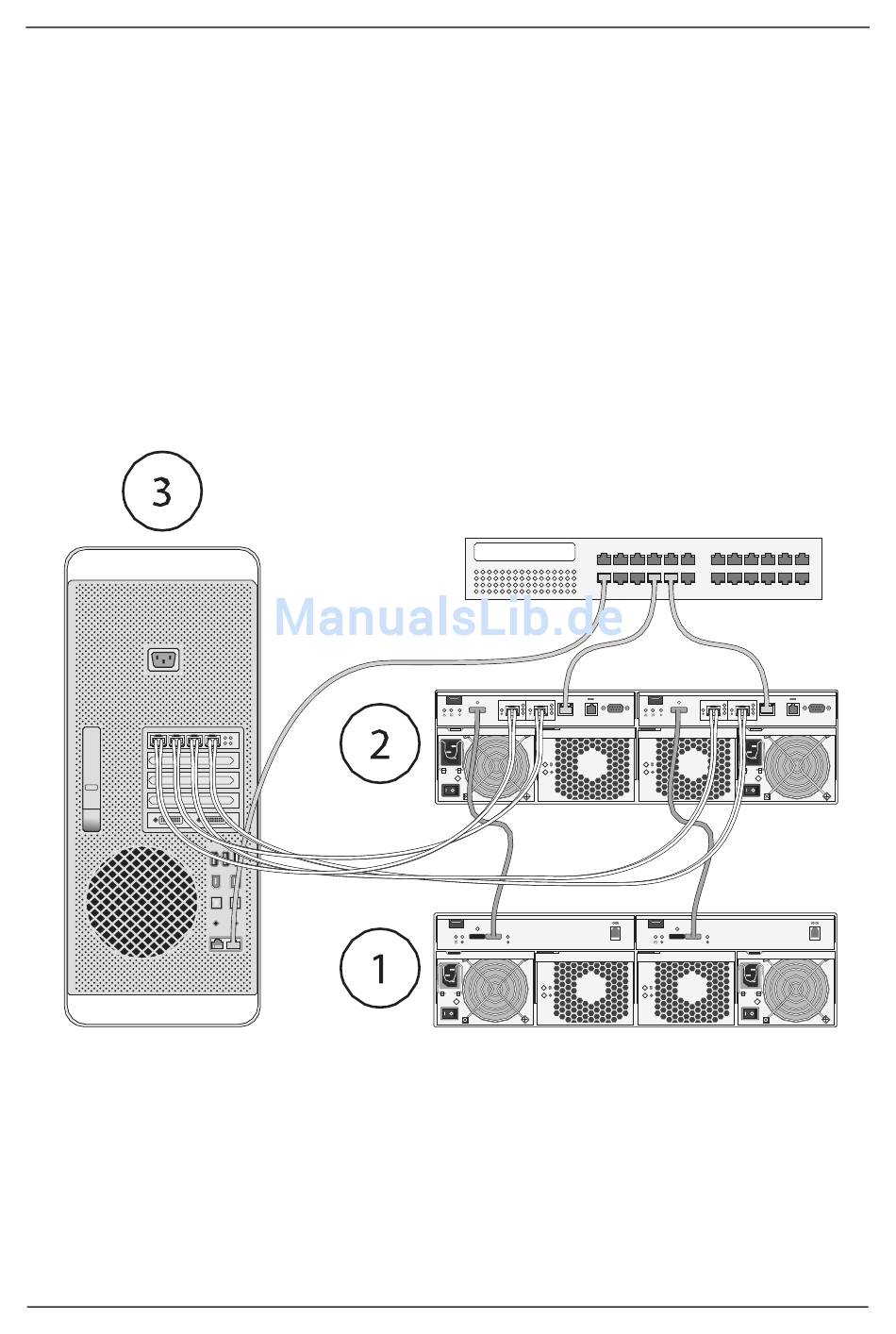

Figure 12 VTrak and Mac power-on sequence, dual controller
