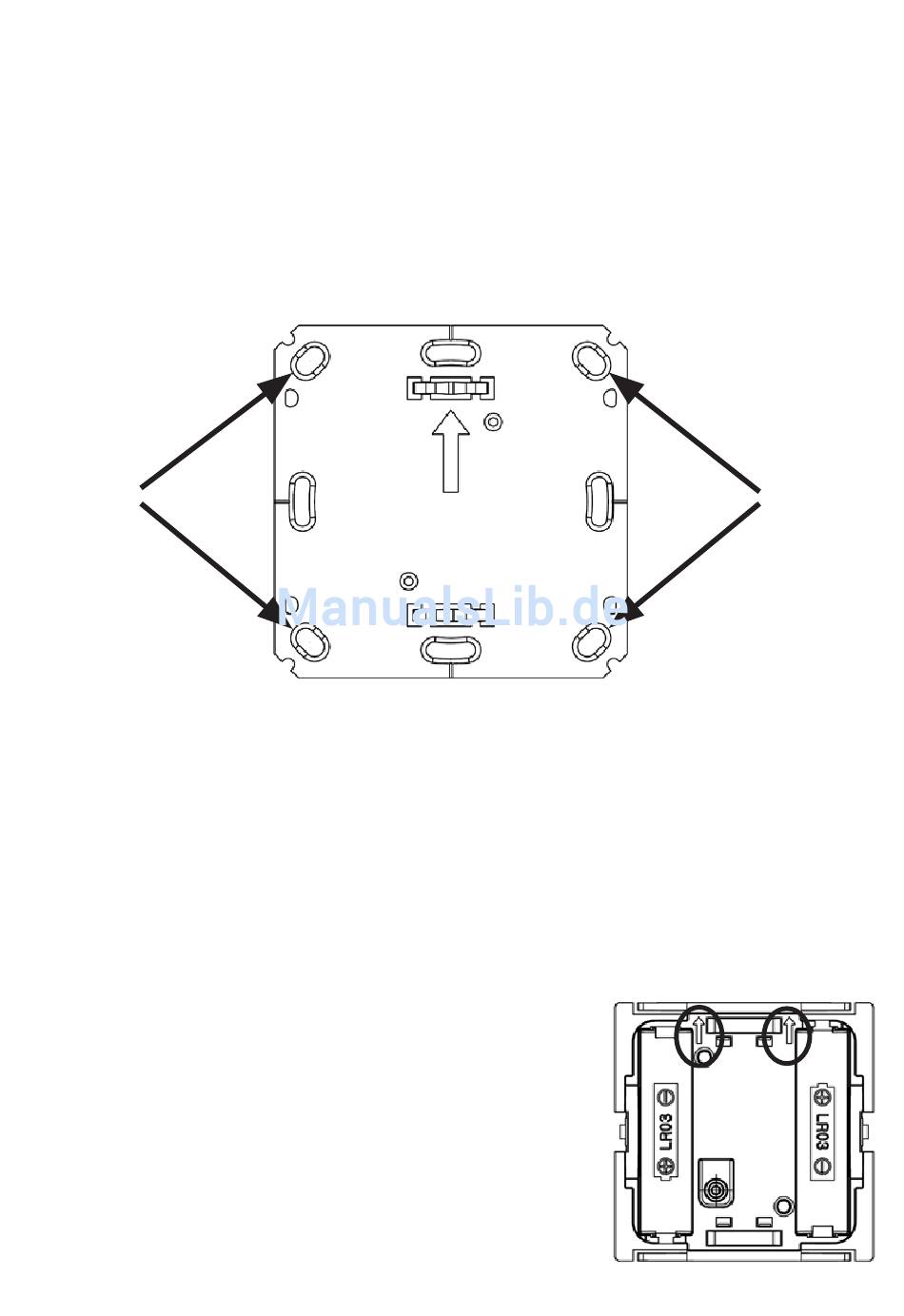

• Position the mounting plate on the desired site on the
wall. Make sure that the arrow on the mounting plate is
pointing upwards.
• Use a pen to mark the positions of 2 bore holes A (dia-
gonally opposite) in the mounting plate on the wall. The
bore holes B can be used for installation with a flush-
mounting box.
A
• If you are working with a stone wall, drill the marked two
5 mm holes and insert the plugs supplied. If you are wor-
king with a wooden wall, you can pre-drill 1.5 mm holes
to make screws easier to insert.
• Use the screws and plugs supplied to fasten the moun-
ting plate to the wall.
• Attach the wall thermostat with the frame on the moun-
ting plate. Make sure that the arrows
on the back side of the wall thermo-
stat point upwards and that the clips
on the mounting plate latch into the
openings on the wall thermostat.
B
B
A
