You can either use screws or adhesive strips to mount the
wall thermostat to a wall in the frame supplied or integrate
it into an existing switch (please refer to sec. 9).

Adhesive strip mounting:

• Choose a site for installation. The surface on which you
are mounting the wall thermostat must be clean, dry
and greaseless.

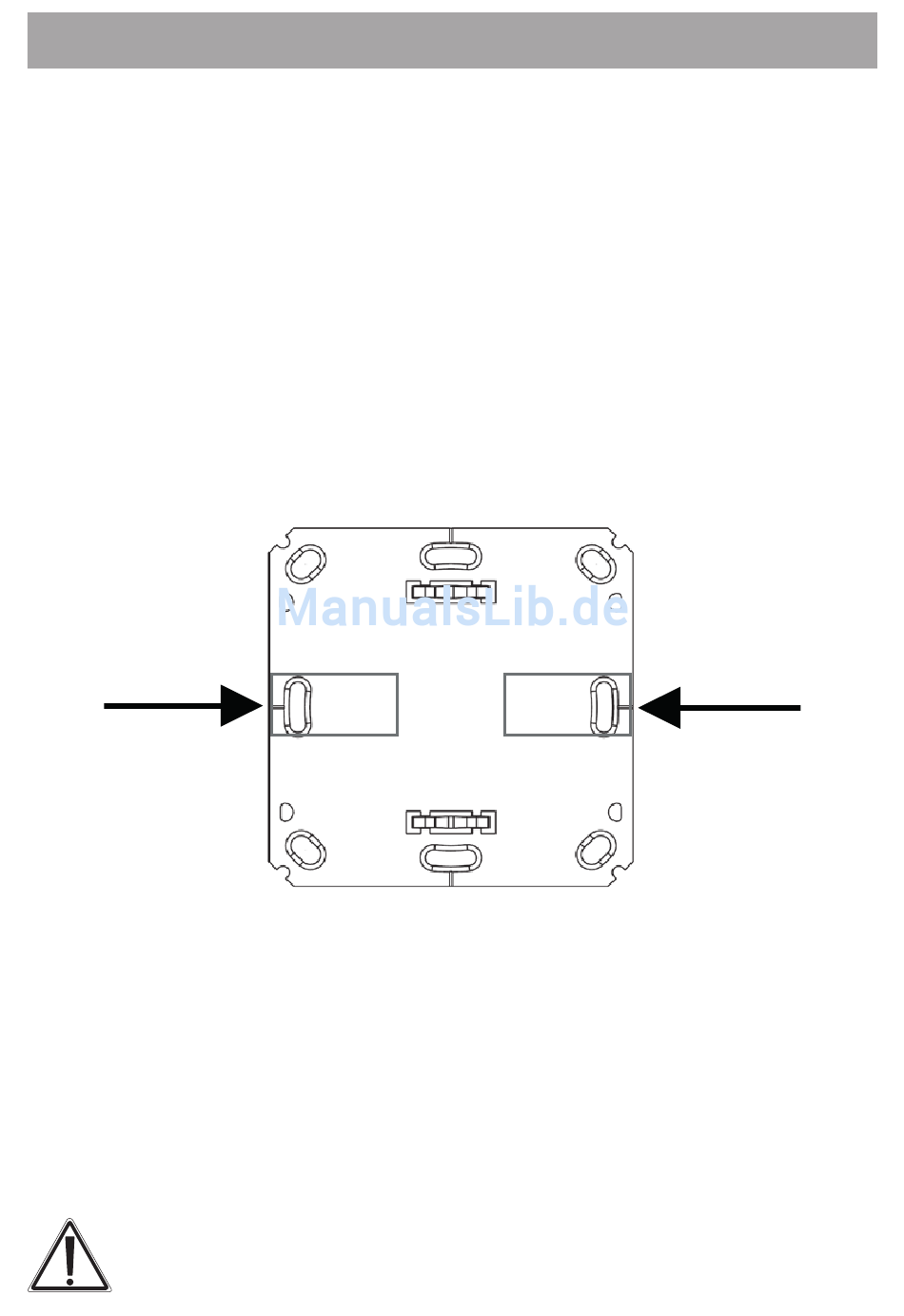

• For mounting of the assembled wall thermostat, attach
the adhesive strips to the back side of the mounting plate.
You should be able to read the letters on the back side
(according to figure).
• Remove the protective film from the adhesive strip.
• Press the assembled wall thermostat with the back side
to the wall in the position where it should subsequent-
ly be attached.

Screw mounting:

• Choose a site for installation.
Make sure that electrical lines in the wall will not be
damaged.
34
8. Mounting
