Installation
Monitor 1
CON
Mouse Speaker
Line In
Keyb.

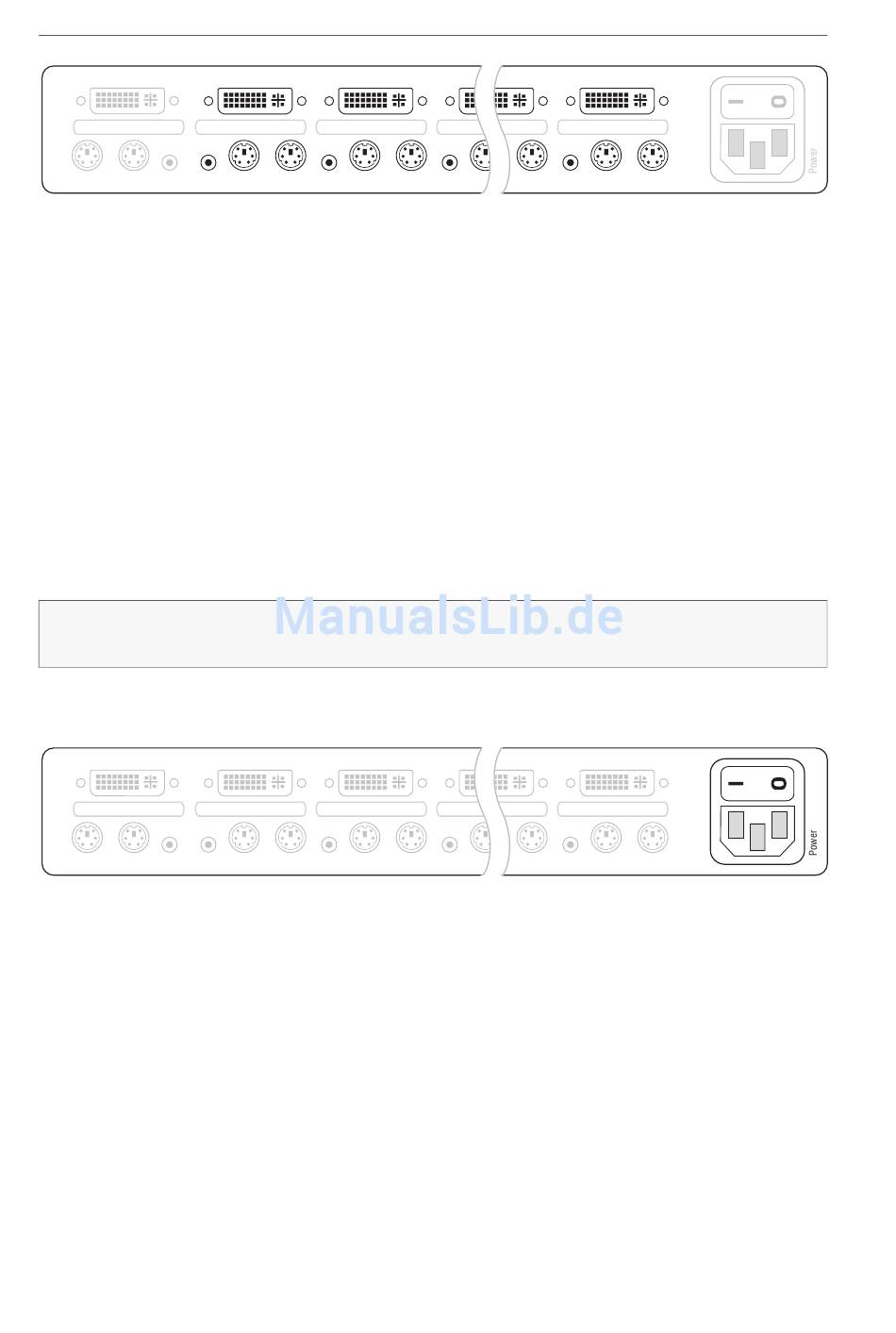

Figure 3: Interfaces to connect the computers
If you want to put out the computer's audio signals over the speakers con-
Line In:
nected to the KVM switch, use one of the audio connection cables (Audio-M/M) to
connect the computer's Line Out interface to this interface.
Use the purple plug of a Twin-PS/2 cable to connect the computer's purple
Keyb.:
PS/2 socket (keyboard) to this interface.
Mouse:
Use the green plug of a Twin-PS/2 cable to connect the computer's green PS/2
socket (mouse) to this interface.
If the computer provides a DVI-D video output, use a digital video cable
DVI-I CPU:
(DVI-D-DL-M/M). If the computer has an analog VGA output, use an analog video
cable (VGA-M/DVI-A-M).
Connect the computer's (first) video output to this interface.
NOTE:
If you purchased the multi-channel variant of the KVM switch, connect the
computer's second video output to the
Connecting the power supply
Monitor 1
CON
Keyb.
Mouse Speaker
Line In
Figure 4: Interface to connect the power supply
Connect the power cable (PowerCable-2 Standard) to a power socket and the
Power:
Power socket of the KVM switch.
5 · G&D DVIMUX8-OSD-PS/2
DVI-I CPU 1
DVI-I CPU 2
CPU 1
CPU 2
Line In
Keyb.
Mouse
Keyb.
DVI-I CPU 1
DVI-I CPU 2
CPU 1
CPU 2
Keyb.
Mouse
Line In
Keyb.
DVI-I CPU 7
CPU 7
Line In
Line In
Mouse
Keyb.
Mouse
DVI-I CPU x.2
interface.
DVI-I CPU 7
CPU 7
Mouse
Line In
Keyb.
Mouse
Line In
DVI-I CPU 8
CPU 8
Keyb.
Mouse
DVI-I CPU 8
CPU 8
Keyb.
Mouse
