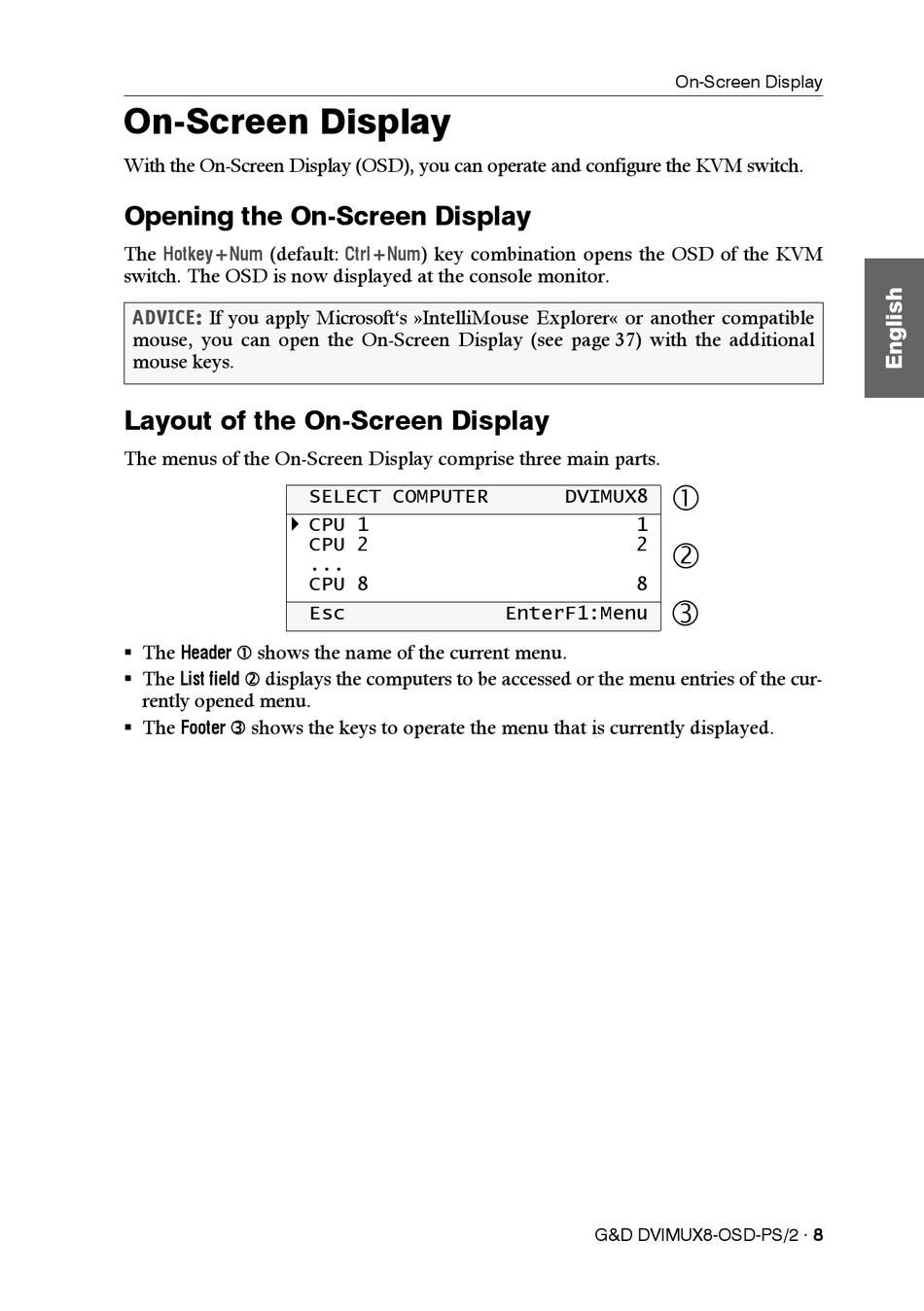

On-Screen Display
With the On-Screen Display (OSD), you can operate and configure the KVM switch.
Opening the On-Screen Display
The
Hotkey+Num
(default:
switch. The OSD is now displayed at the console monitor.
ADVICE:
If you apply Microsoft's »IntelliMouse Explorer« or another compatible
mouse, you can open the On-Screen Display (see page 37) with the additional
mouse keys.
Layout of the On-Screen Display
The menus of the On-Screen Display comprise three main parts.
CPU 1
The
Header
shows the name of the current menu.
The
List field
displays the computers to be accessed or the menu entries of the cur-
rently opened menu.
The
Footer
shows the keys to operate the menu that is currently displayed.
Ctrl+Num
) key combination opens the OSD of the KVM
SELECT COMPUTER
CPU 2
...
CPU 8
Esc
On-Screen Display
DVIMUX8
1
2
8
EnterF1:Menu
G&D DVIMUX8-OSD-PS/2 · 8
