17.2. Save rule
Save: Save current rule.
Use: Load the selected rule in the list as the testing rule.
Remove: Remove the selected rule in the list.
.
18. How to Record and Play a Waveform
Wave Record function can record the input current wave. You can set the interval between recorded
frames and get better analysis effect with playback and storage function. The limit of the saved file
size is 4000 M. It will save the initial trig status, the time base, voltage division, horizontal trigger
position and zero position of each frame during recording.
Click to show Function menu, choose "Record".

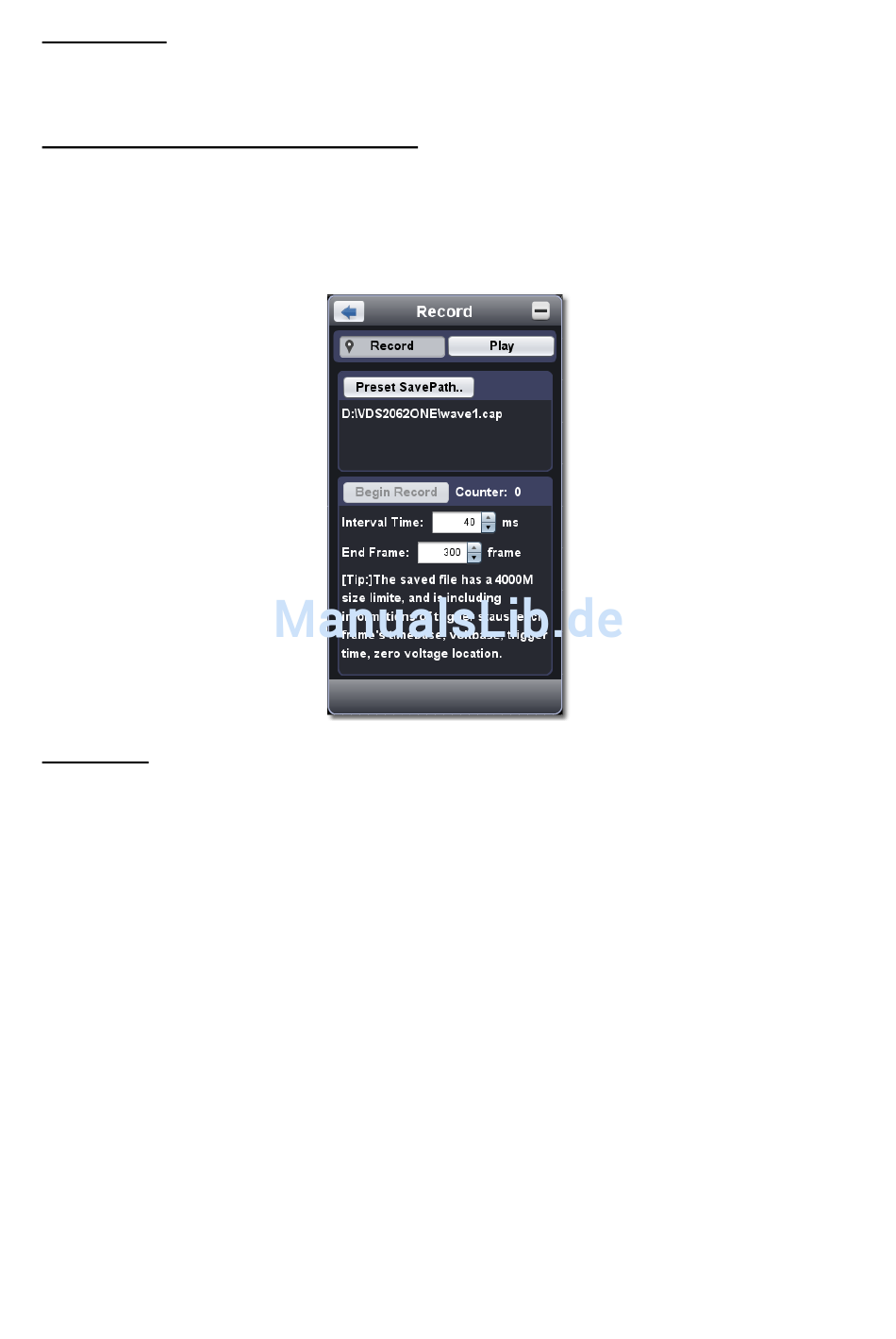

18.1. Record
1. Choose "Record" tab on the top.
2. Click "Preset Save Path" to specify the save location. Waveform files have the suffix".cap".
3. Set "Interval Time" and "End Frame". Interval Time refers to the interval between recorded frames.
Interval Time ranges from 0 to 100000 ms and increment by 10 ms.
4. Make the waveform in Run status.
5. Click "Begin Record". Counter starts to count the frame number.
6. Click "End Record" to stop recording, or wait until the Counter reaches the End Frame.
Note:
1. Waveforms of two channels can be recorded simultaneously.
2. You can turn on/off the channels while recording. Only channels turned on can be recorded. If a
channel is turned off while recording, there will be no waveform of this channel after the frame
when stopped.
