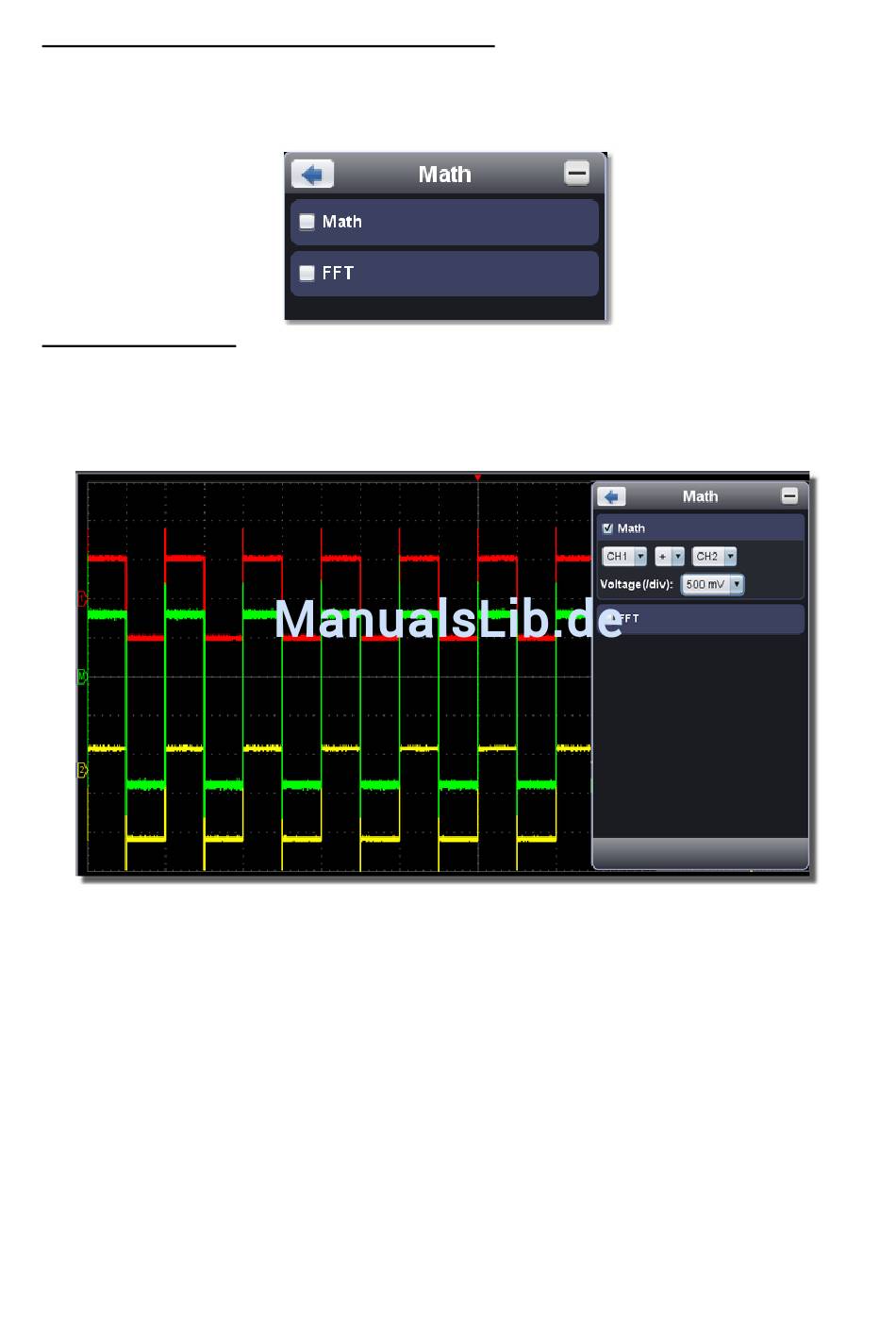

14. Use Mathematical Manipulation Function
The Mathematical Manipulation function is used to show the results of the addition, multiplication,
division and subtraction operations between Channel1 and Channel 2, and the FFT operation of
Channel 1 or Channel 2.
Math of dual waveform
1. Turn on CH1 and CH2
2. Click to show Function menu, choose "Math". Check "Math".
3. Choose the factors and operator. Select the voltage division of M. The software transforms the
waveforms data of the two factors into selected voltage division of M and calculate. The green
calculated waveform M is displayed in the screen.
-92-
