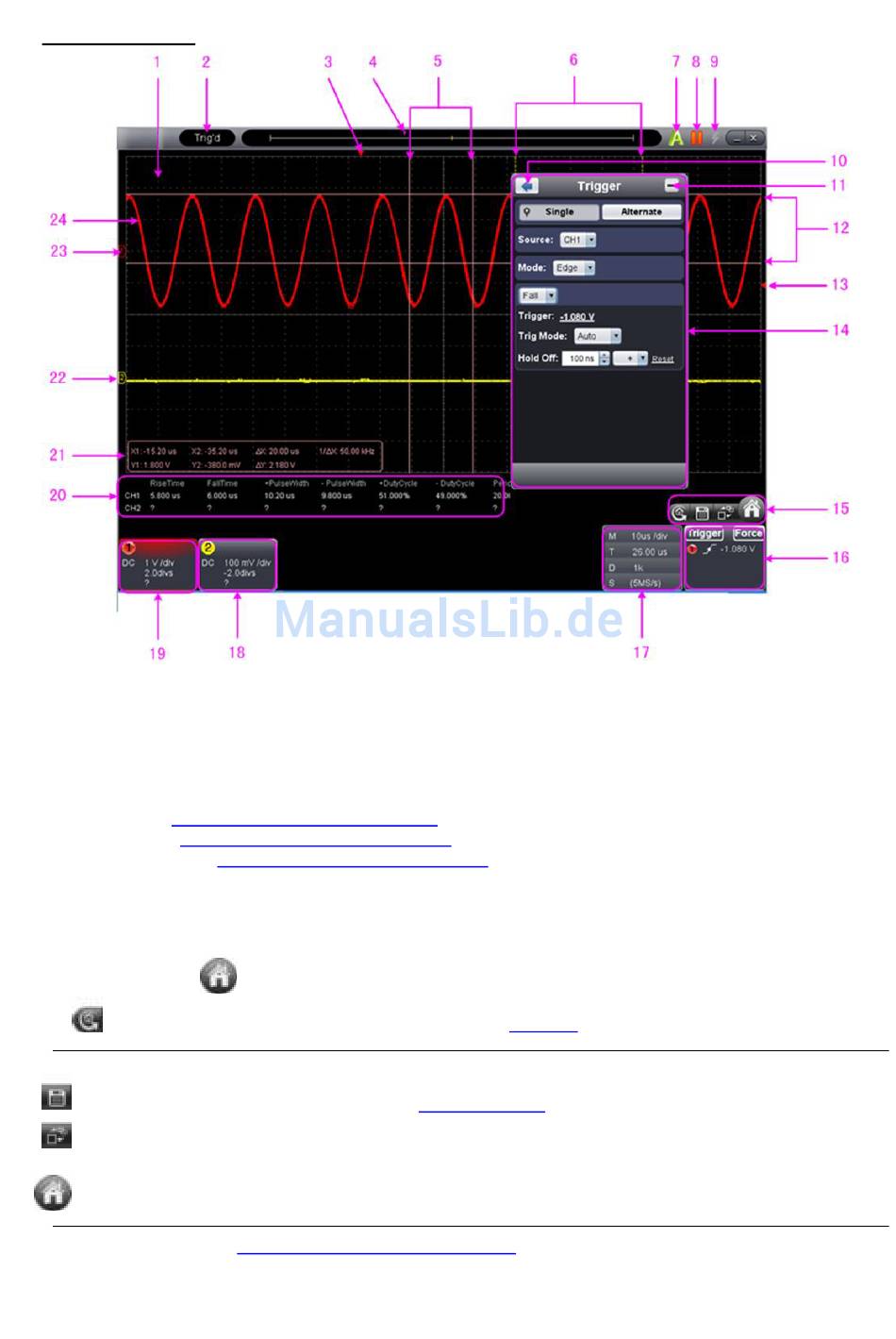

7. User Interface
1. Waveform Display Area
2. Display status, click to choose "Disconnect", "Install USB Driver" or "Connect LAN". Refer to the
instruction of the status after this list.
3. The red pointer indicates the horizontal position for the trigger
4. The pointer indicates the trigger position in the internal memory
5. Measure time with cursors
6. The two yellow dotted lines indicate the size of the viewing expanded window
7. Auto set, see 20.How to Use Executive Buttons
8. Run/Stop, see 20. How to Use Executive Buttons
9. Single Trigger, see
10. Back to Home menu
11. Hide the menu
12. Measure voltage with cursors
13. The red pointer shows the trigger level position for CH1 (yellow for CH2). It can be dragged up and
down.
14. Function menu,
15. Shortcut icon of resetting to factory settings, see
Shortcut icon of exporting waveform, see
Swith Three View/One View. In the Three View display mode, the left top is XP mode window
the right top is FFT window
Show/hid function menu
16. Trigger window, see
20. How to Use Executive Buttons
click to show/hide
8.4. How to Set the Trigger System
"Default"
"Pause&Export"
