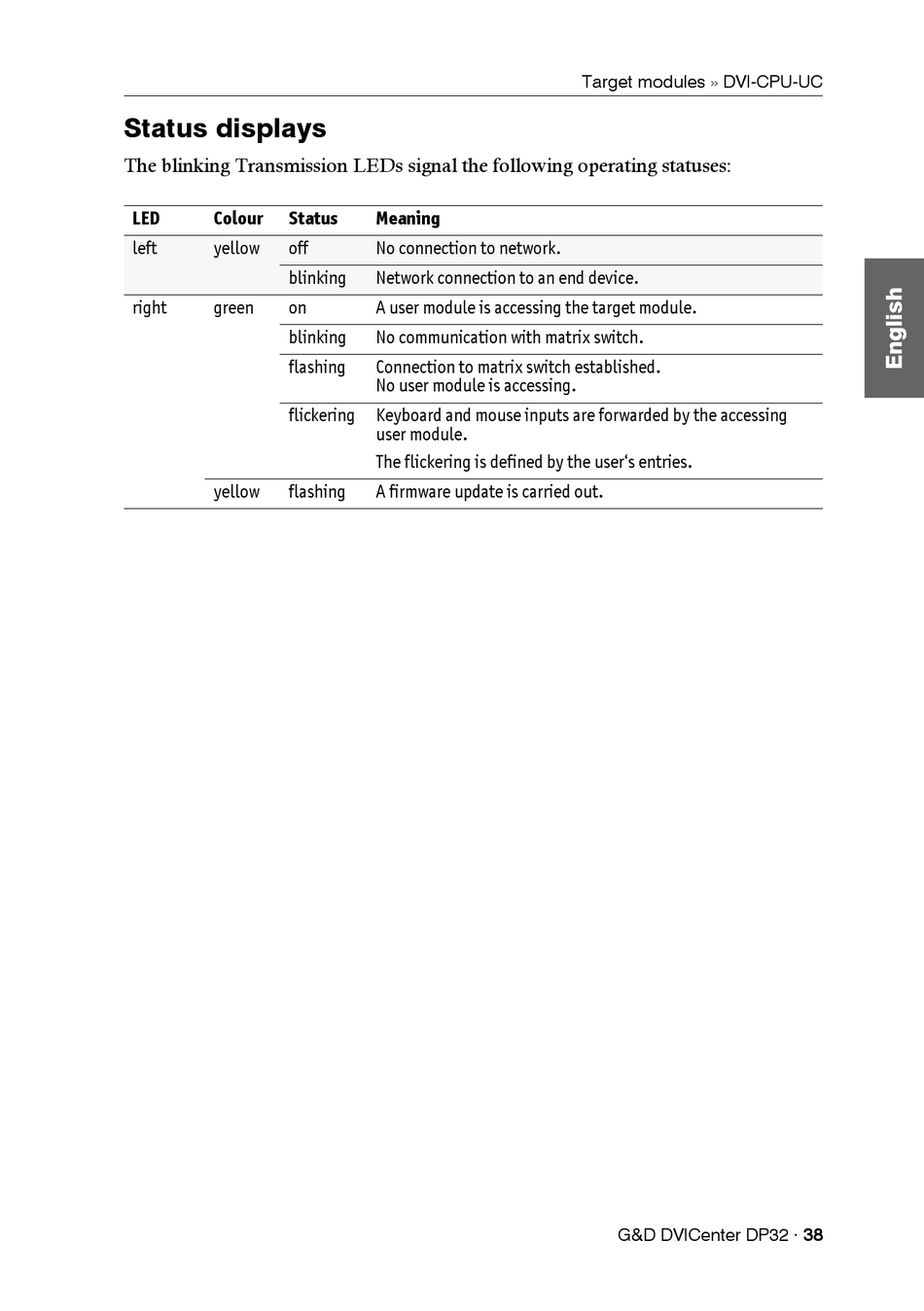

Status displays

The blinking Transmission LEDs signal the following operating statuses:
LED Colour Status
left yellow off
blinking
right green on
blinking
flashing
flickering
yellow flashing
Meaning
No connection to network.
Network connection to an end device.
A user module is accessing the target module.
No communication with matrix switch.
Connection to matrix switch established.
No user module is accessing.
Keyboard and mouse inputs are forwarded by the accessing
user module.
The flickering is defined by the user's entries.
A firmware update is carried out.
