1.29 Logic switch

The logic switch is a virtual switch which consists of two switches plus
a mathematical Iogicl relationship. The logic switch is used to control
turning on or turning off of some functions. The logic switch is used to
control turning on or turning off of some functions two switches control
one function. There are 3 sets of logic switches (LsW1,LsW2, Lsw3). Select
switches from SWA to SWH to combine the logic switch. The logic relati-
onship includes And , Or and Xor . The combination is as follows:
Switch
Switch 1 Switch 2
off off
off off
on on
on on

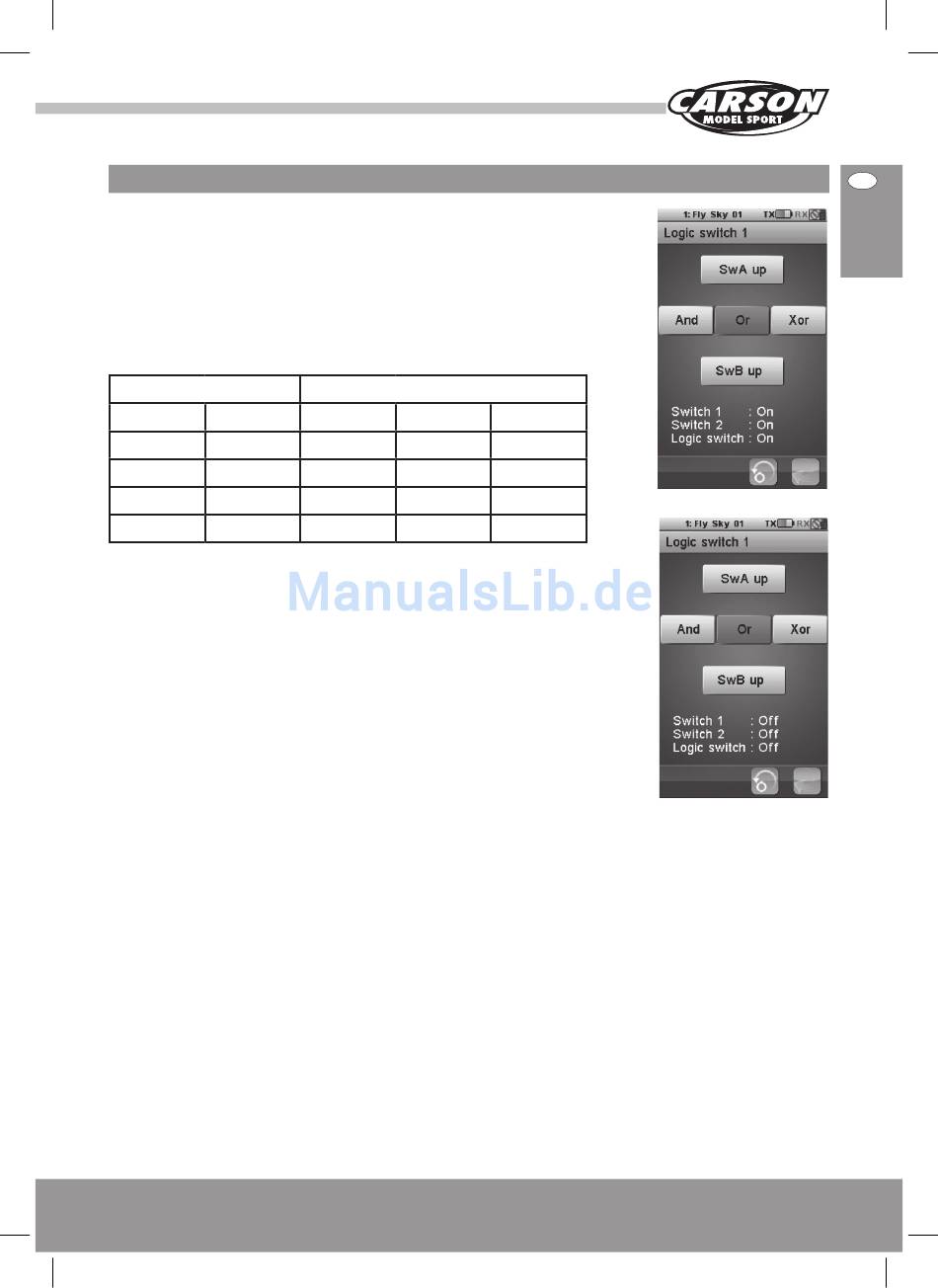

As shown in the picture 21 .27: Select SWA up and SWB up and the logic
relationship is set to or. SW1, Sw2 and logic switch are displayed in real
time. SWA is used to lower the Wheels and logic SW1 is to cut the engine.
To accomplish this you need to access the auxilary channels screen. So,
if SWA and SWB pushed down at the same time, the engines will be cut.
CARSON Reflex Stick Ultimate Touch 500501002
logic relationship
and or
off off
off on
off on
on on
Xor
off
on
on
off
GB
Pic. 21.27
Pic. 21.28
