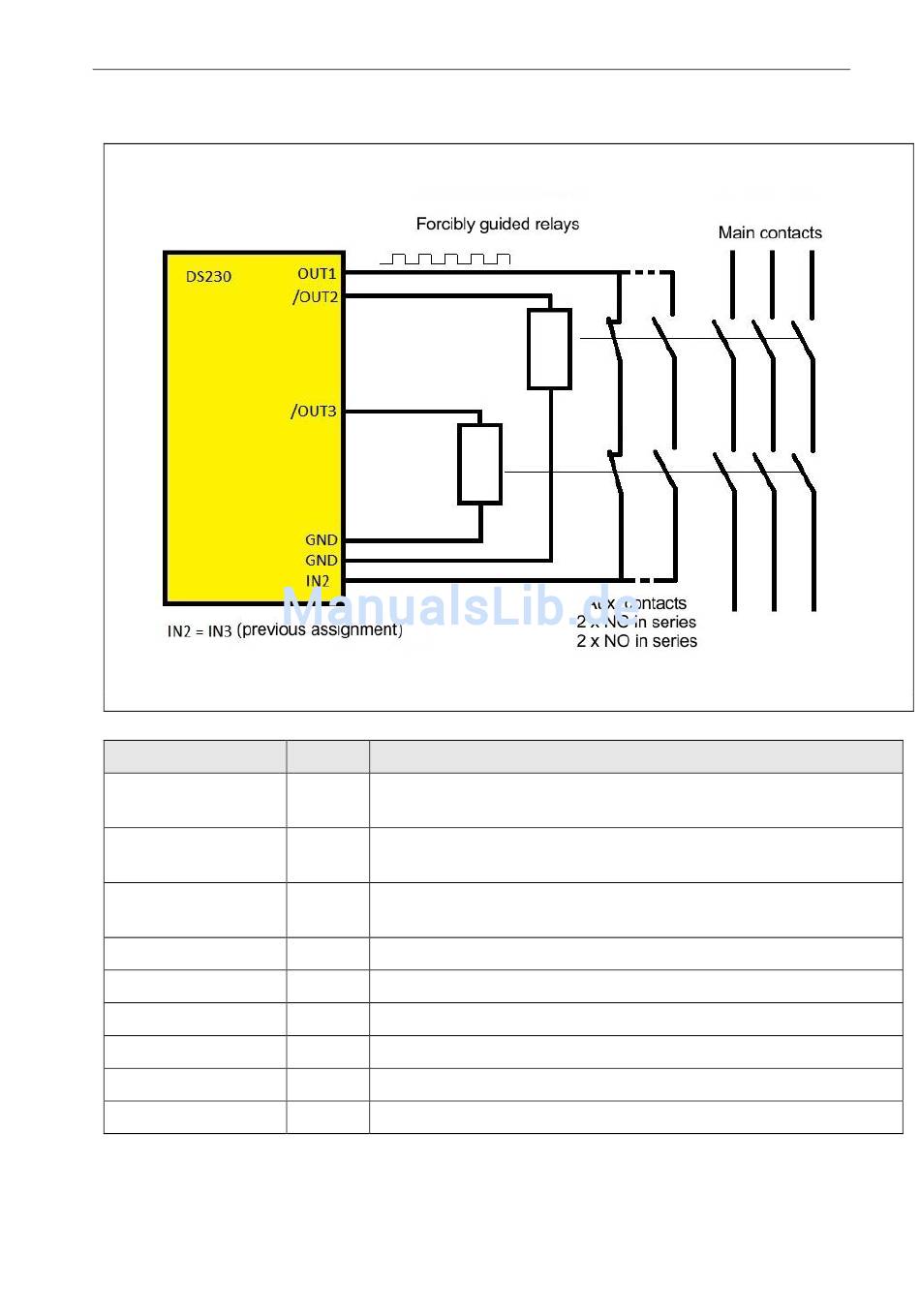

15.4. EDM: 2 Relays, 2 Outputs, 1 Input (NC, NO)

Parameter
Switch Mode
OUT1
Switch Mode
OUT2
Switch Mode
OUT3
Read Back OUT
IN2 Function
IN2 Config
Input Mode
Read Back Delay
Output Mode
Doc. # R60719
Setting Description
9 OUT1 to generate clock signal
0 OUT2 to signal over speed
0 OUT3 to detect over speed
0/6 Inversion yes or no, depending on type of aux. contact
18/19 Adaption to OUT2 or OUT3 (over speed)
12 Adaption to clock output OUT1 [X10/4]
2 4 single inputs for free use
0,050 Delay 50 ms to obviate contact bouncing
0 Inverse operation
EDM Function
EN - 129
