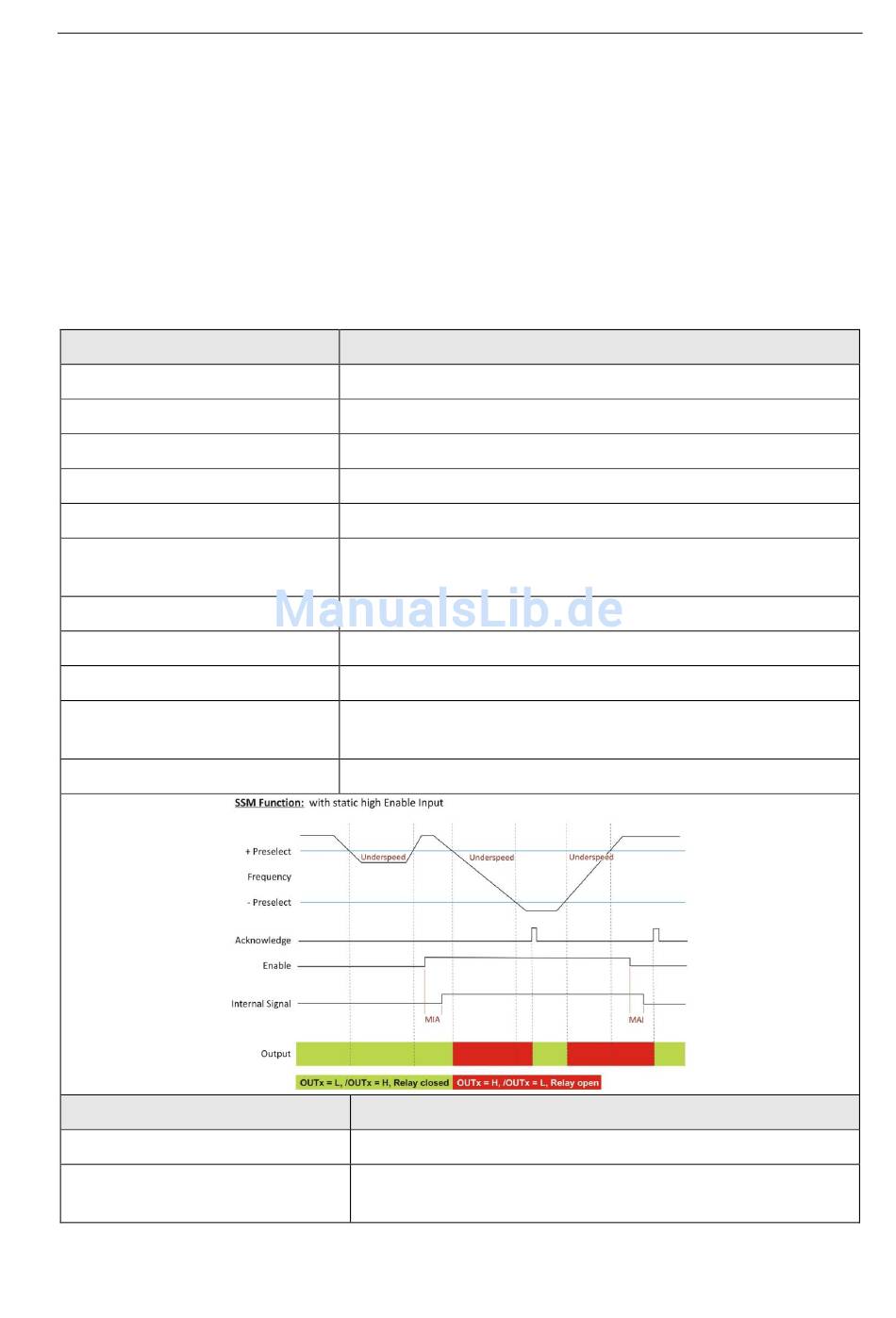

SSM via Input (Switch Mode = 15)
11.18.
With parameter setting "Switch Mode" = 15, an SSM function is assigned to the
output. The function is triggered by under speed, independent of the direction of
rotation. The function requires an enable input signal which must be assigned
by parameter Matrix.
A lock function can be set separately, which can be acknowledged by a further
input.
Acknowledgement is only possible with frequencies higher than under speed, or
with the enable signal deactivated.
Relevant Parameters
Switch Mode XXXX
Matrix XXXX
MIA-Delay XXXX
MAI-Delay XXXX
Lock Output
Output Mode
Preselect XXX. L/H
*IN* Function
*IN* Config
Input Mode
GPI Err Time
Relevant input functions
Enable (Function: 21)
Clear lock function (function:
1-6)
Doc. # R60719
Remark
= 15
use only inputs, but no feedback outputs
= 0 (can also be set according to need)
= 0 (can also be set according to need)
for lock function use only range 0-31
homogenous or inverse (affects the Safety Integrity
Level SIL)
switching point
input function
switching behavior (dynamically, statically)
input configuration (affects the Safety Integrity Level
SIL)
Max. permissible delay time during illegal conditions
Remark
activates the function
when lock function is active only
Monitoring Functions
EN - 101
