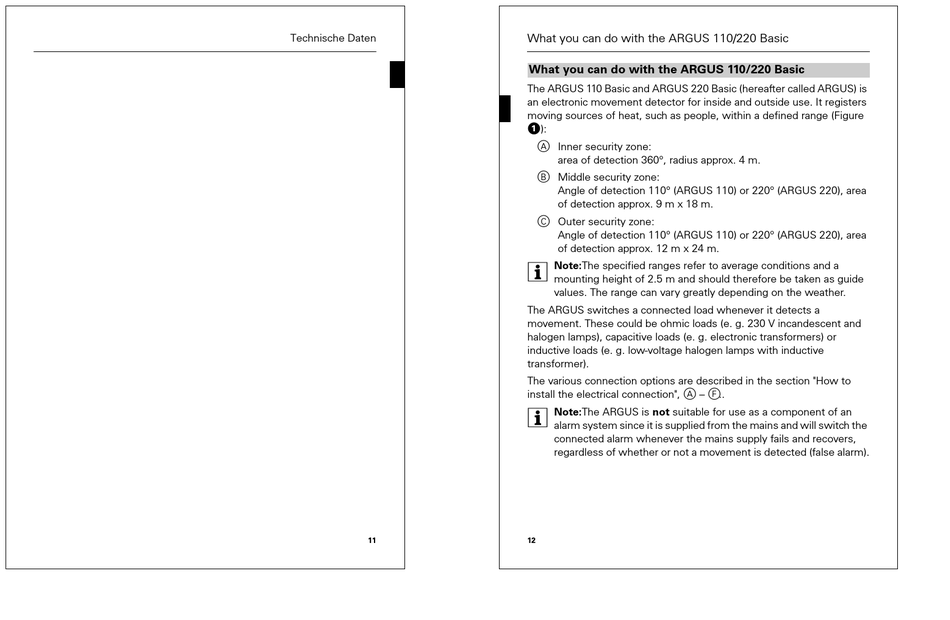

What you can do with the ARGUS 110/220 Basic
What you can do with the ARGUS 110/220 Basic
The ARGUS 110 Basic and ARGUS 220 Basic (hereafter called ARGUS) is
an electronic movement detector for inside and outside use. It registers
moving sources of heat, such as people, within a defined range (Figure
!):
A Inner security zone:
area of detection 360°, radius approx. 4 m.
B Middle security zone:
Angle of detection 110° (ARGUS 110) or 220° (ARGUS 220), area
of detection approx. 9 m x 18 m.
C Outer security zone:
Angle of detection 110° (ARGUS 110) or 220° (ARGUS 220), area
of detection approx. 12 m x 24 m.
Note:The specified ranges refer to average conditions and a
|
mounting height of 2.5 m and should therefore be taken as guide
values. The range can vary greatly depending on the weather.
The ARGUS switches a connected load whenever it detects a
movement. These could be ohmic loads (e. g. 230 V incandescent and
halogen lamps), capacitive loads (e. g. electronic transformers) or
inductive loads (e. g. low-voltage halogen lamps with inductive
transformer).
The various connection options are described in the section "How to
install the electrical connection", A – F ..
| Note:The ARGUS is not suitable for use as a component of an
alarm system since it is supplied from the mains and will switch the
connected alarm whenever the mains supply fails and recovers,
regardless of whether or not a movement is detected (false alarm).
12
