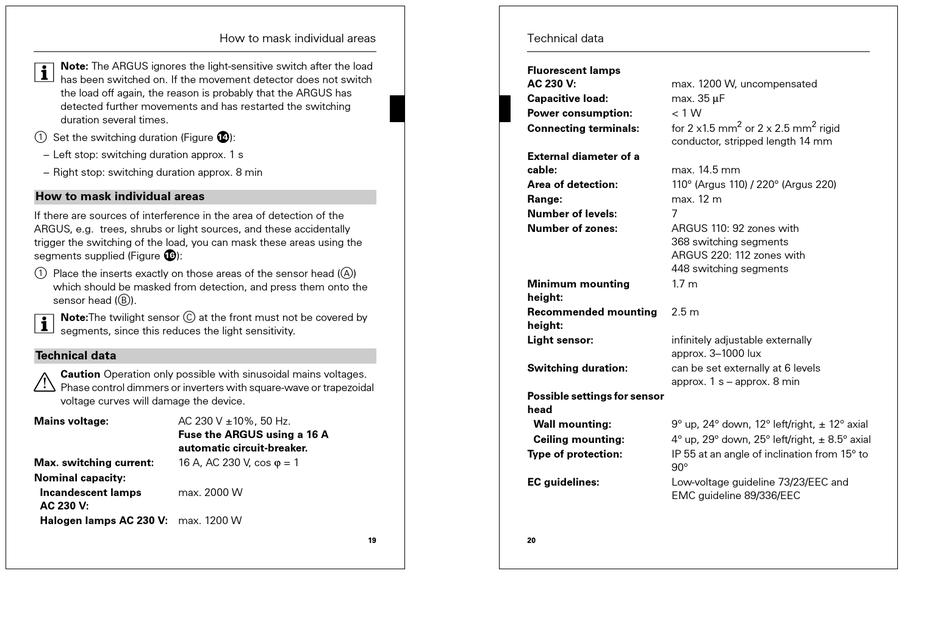

Note: The ARGUS ignores the light-sensitive switch after the load
has been switched on. If the movement detector does not switch
the load off again, the reason is probably that the ARGUS has
detected further movements and has restarted the switching
duration several times.
1 Set the switching duration (Figure ;):
– Left stop: switching duration approx. 1 s
– Right stop: switching duration approx. 8 min
How to mask individual areas
If there are sources of interference in the area of detection of the
ARGUS, e.g. trees, shrubs or light sources, and these accidentally
trigger the switching of the load, you can mask these areas using the
segments supplied (Figure _):
1 Place the inserts exactly on those areas of the sensor head (A)
which should be masked from detection, and press them onto the
sensor head (B).
Note:The twilight sensor C at the front must not be covered by
|
segments, since this reduces the light sensitivity.
Technical data
½
Caution Operation only possible with sinusoidal mains voltages.
Phase control dimmers or inverters with square-wave or trapezoidal
voltage curves will damage the device.
Mains voltage:
AC 230 V ±10%, 50 Hz.
Fuse the ARGUS using a 16 A
automatic circuit-breaker.
16 A, AC 230 V, cos ϕ = 1
Max. switching current:
Nominal capacity:
Incandescent lamps
max. 2000 W
AC 230 V:
Halogen lamps AC 230 V: max. 1200 W
How to mask individual areas
19
Technical data
Fluorescent lamps
AC 230 V:
max. 1200 W, uncompensated
max. 35 µF
Capacitive load:
Power consumption:
< 1 W
Connecting terminals:
for 2 x1.5 mm
conductor, stripped length 14 mm
External diameter of a
cable:
max. 14.5 mm
Area of detection:
110° (Argus 110) / 220° (Argus 220)
Range:
max. 12 m
Number of levels:
7
Number of zones:
ARGUS 110: 92 zones with
368 switching segments
ARGUS 220: 112 zones with
448 switching segments
Minimum mounting
1.7 m
height:
Recommended mounting
2.5 m
height:
Light sensor:
infinitely adjustable externally
approx. 3–1000 lux
Switching duration:
can be set externally at 6 levels
approx. 1 s – approx. 8 min
Possible settings for sensor
head
Wall mounting:
9° up, 24° down, 12° left/right, ± 12° axial
Ceiling mounting:
4° up, 29° down, 25° left/right, ± 8.5° axial
Type of protection:
IP 55 at an angle of inclination from 15° to
90°
EC guidelines:
Low-voltage guideline 73/23/EEC and
EMC guideline 89/336/EEC
20
2
2
or 2 x 2.5 mm
rigid
