6 Technical data

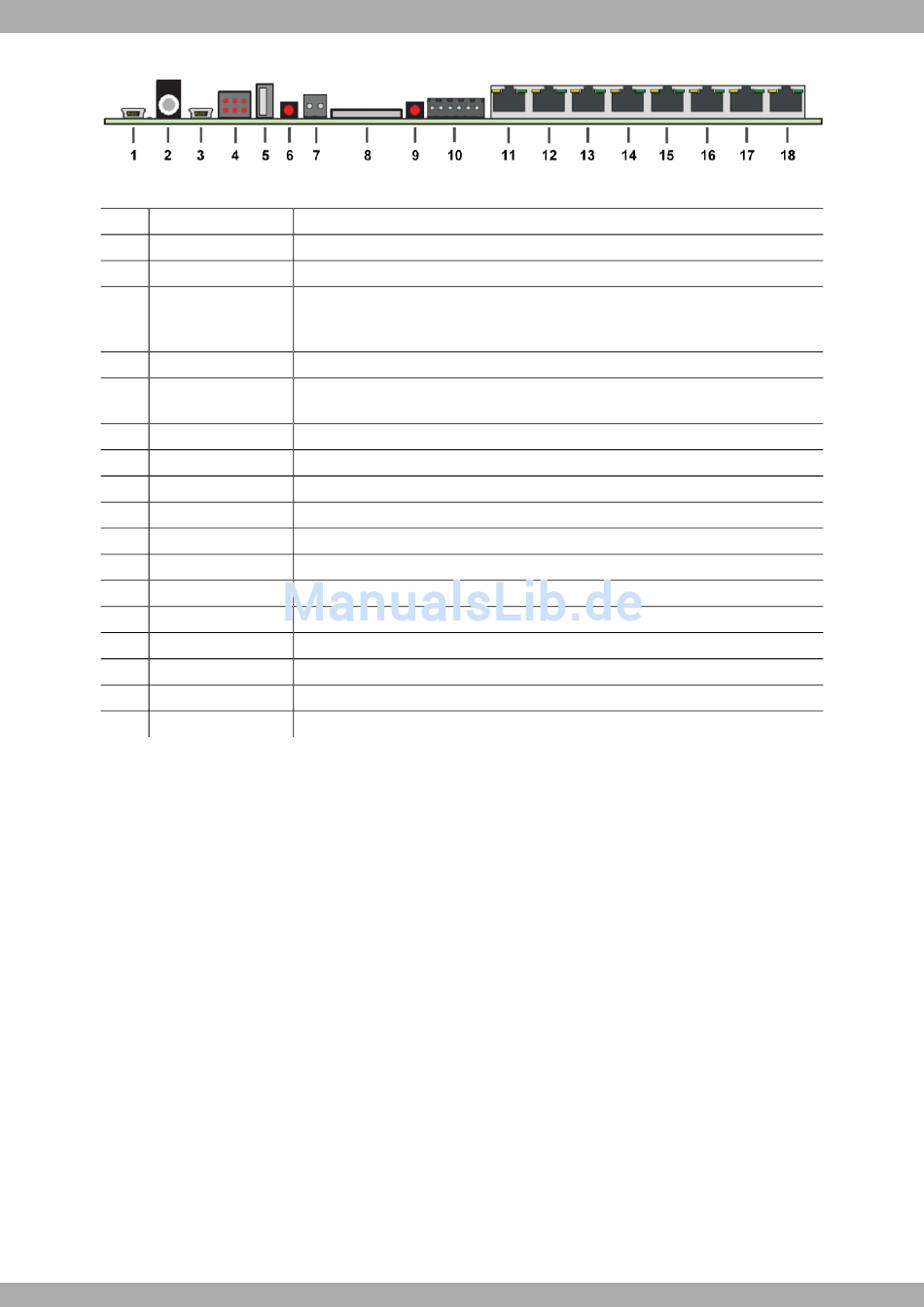

Fig. 5: Basic module connections
1 Serial 1
2 Audio in / out
3 Serial 2
4 LED status
(rack-mounted sys-
tem)
5 USB
6 Maintenance
7 System GND terminal Functional earth connection for safe operation (wall-mounted system)
8 SD card
9 Reset
10 Contacts
11 Contacts
12 Option
13 ETH 1
14 ETH 2
15 ETH 3
16 ETH 4
17 ETH 5
18 Option
32
Serial interface RS232
Jack for external and internal audio signals
Serial interface RS232
LED display
USB connector
Key for module replacement during operation (hot plug, only intended for the rack-
mounted system)
Card for data storage
Reset button
Switch contact
Switch contact
Currently without function
10/100/1000 Base T Ethernet interface
10/100/1000 Base T Ethernet interface
10/100/1000 Base T Ethernet interface
10/100/1000 Base T Ethernet interface
10/100/1000 Base T Ethernet interface
Currently without function
