ENGLISH

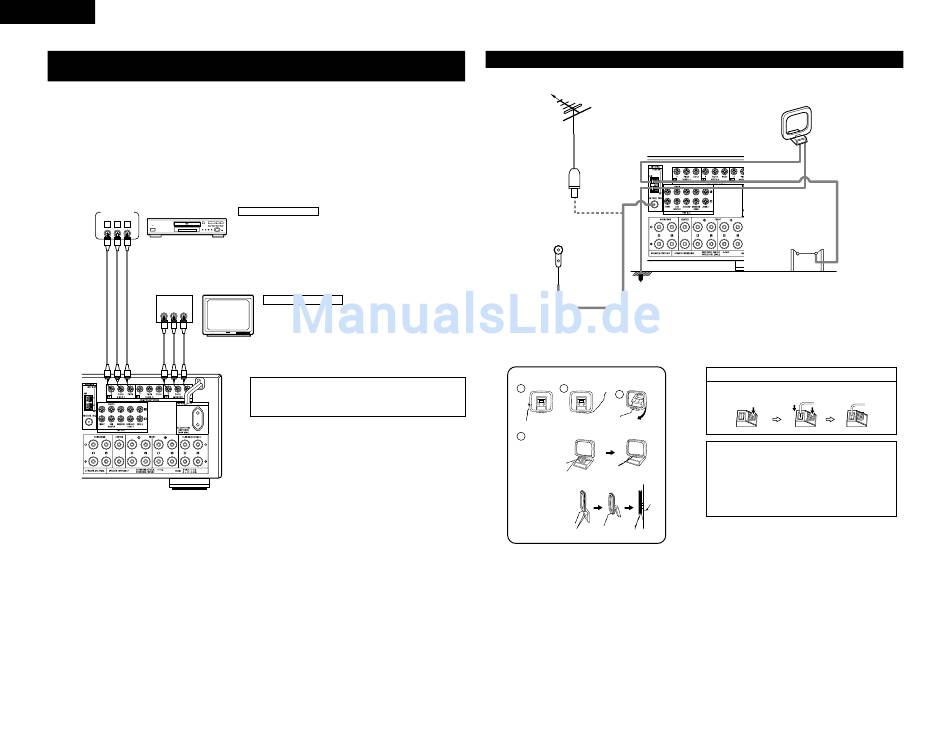

Connecting the Video Components equipped with Color Difference
(Component - Y, P /C , P /C
R R B
• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not output to the VIDEO output jack
(yellow) or the S-Video output jack.
• Some video sources with component video outputs are labeled Y, C
terms all refer to component video color difference output.
• The function assigned to the component video input can be changed at the system setup. For details, see
"Setting the Video In Assignment" on page 13.
• The AVR-2803's on-screen display signals are not output from the color difference (component) video output
jacks (MONITOR OUT).
DVD player
COMPONENT
VIDEO OUT
B
Y C C
B R
COMPONENT
VIDEO IN
Y C C
B R
6
) Video Jacks
B
, C , or Y, P , P , or Y, R-Y, B-Y. These
B R b r
Connecting a DVD player
DVD IN jacks
• Connect the DVD player's color difference (component) video output jacks
(COMPONENT VIDEO OUTPUT) to the COMPONENT VIDEO-1 IN jack using 75
Ω/ohms coaxial video pin-plug cords.
• In the same way, another video source with component video outputs such as
a TV or DBS tuner, etc., can be connected to the VIDEO-2 color difference
(component) video jacks.
Monitor TV
Connecting a monitor TV
MONITOR OUT jack
• Connect the TV's color difference (component)
video input jacks (COMPONENT VIDEO INPUT)
to the COMPONENT MONITOR OUT jack using
75 Ω/ohms coaxial video pin-plug cords.
• The color difference input jacks may be indicated differently on some
TVs, monitors or video components ("C , C
R B
"Pr, Pb and Y", etc.). For details, carefully read the operating instructions
included with the TV or other component.
Connecting the antenna terminals
75 Ω/ohms
COAXIAL
CABLE
FM INDOOR
ANTENNA
(Supplied)
• An F-type FM antenna cable plug can be connected directly.
AM loop antenna assembly
1 2
and Y", "R-Y, B-Y and Y",
Remove the vinyl tie
and take out the
connection line.
4
a. With the
antenna on
top any
stable
surface.
b. With the
antenna
attached to
a wall.
Installation hole Mount on wall, etc.
DIRECTION OF
BROADCASTING AM LOOP
ANTENNA
STATION
(Supplied)
FM ANTENNA
GROUND
Connect to the AM
antenna terminals.
1. Push the
3
lever.
Bend in the reverse
direction.
NOTES:
• Do not connect two FM antennas
simultaneously.
Mount
• Even if an external AM antenna is used, do
not disconnect the AM loop antenna.
• Make sure AM loop antenna lead terminals
do not touch metal parts of the panel.
AM OUTDOOR
ANTENNA
Connection of AM antennas
2. Insert the 3. Return the
conductor. lever.
