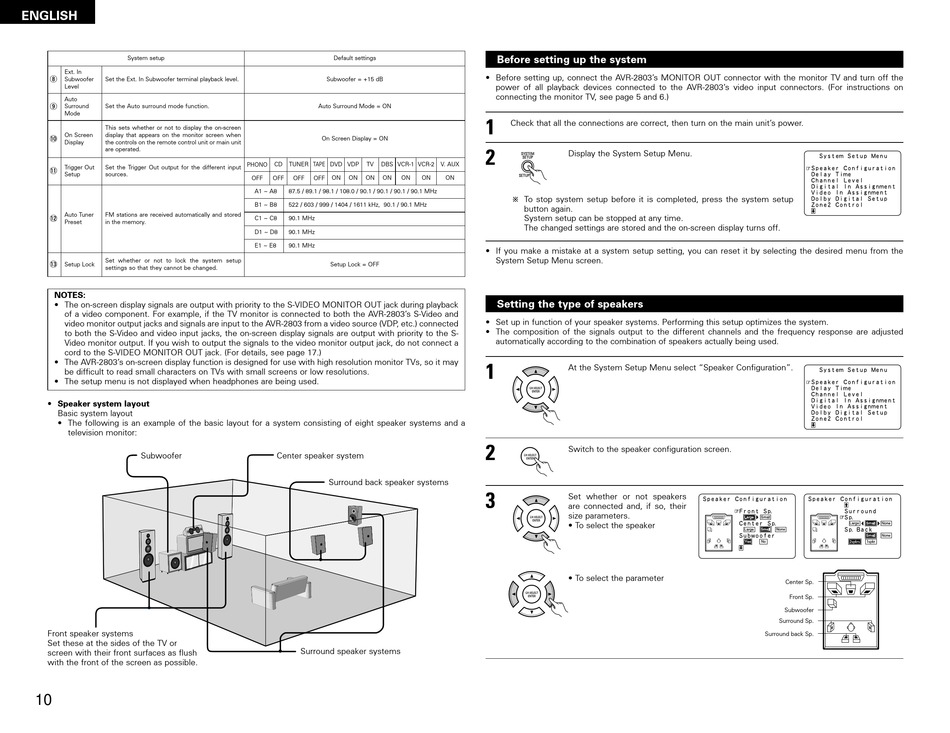

Denon AVR-2803 Bedienungsanleitung Seite 10

ENGLISH
System setup
Ext. In
i
Subwoofer Set the Ext. In Subwoofer terminal playback level.
Level
Auto
o
Surround Set the Auto surround mode function.
Mode
This sets whether or not to display the on-screen
On Screen display that appears on the monitor screen when
!0
Display the controls on the remote control unit or main unit
are operated.
Trigger Out Set the Trigger Out output for the different input
!1
Setup sources.
Auto Tuner FM stations are received automatically and stored
!2
Preset in the memory.
Set whether or not to lock the system setup
!3
Setup Lock
settings so that they cannot be changed.
NOTES:
• The on-screen display signals are output with priority to the S-VIDEO MONITOR OUT jack during playback
of a video component. For example, if the TV monitor is connected to both the AVR-2803's S-Video and
video monitor output jacks and signals are input to the AVR-2803 from a video source (VDP, etc.) connected
to both the S-Video and video input jacks, the on-screen display signals are output with priority to the S-
Video monitor output. If you wish to output the signals to the video monitor output jack, do not connect a
cord to the S-VIDEO MONITOR OUT jack. (For details, see page 17.)
• The AVR-2803's on-screen display function is designed for use with high resolution monitor TVs, so it may
be difficult to read small characters on TVs with small screens or low resolutions.
• The setup menu is not displayed when headphones are being used.
• Speaker system layout
Basic system layout
• The following is an example of the basic layout for a system consisting of eight speaker systems and a
television monitor:
Subwoofer
Front speaker systems
Set these at the sides of the TV or
screen with their front surfaces as flush
with the front of the screen as possible.
10
Default settings
Subwoofer = +15 dB
Auto Surround Mode = ON
On Screen Display = ON
PHONO CD TUNER TAPE DVD VDP TV DBS VCR-1 VCR-2
ON ON ON ON ON ON
OFF OFF OFF OFF
A1 ~ A8 87.5 / 89.1 / 98.1 / 108.0 / 90.1 / 90.1 / 90.1 / 90.1 MHz
B1 ~ B8 522 / 603 / 999 / 1404 / 1611 kHz, 90.1 / 90.1 MHz
C1 ~ C8 90.1 MHz
D1 ~ D8 90.1 MHz
E1 ~ E8 90.1 MHz
Setup Lock = OFF
Center speaker system
Surround back speaker systems
Surround speaker systems
Before setting up the system
• Before setting up, connect the AVR-2803's MONITOR OUT connector with the monitor TV and turn off the
power of all playback devices connected to the AVR-2803's video input connectors. (For instructions on
connecting the monitor TV, see page 5 and 6.)
1
Check that all the connections are correct, then turn on the main unit's power.
2
Display the System Setup Menu.
V. AUX
ON
To stop system setup before it is completed, press the system setup
button again.
System setup can be stopped at any time.
The changed settings are stored and the on-screen display turns off.
• If you make a mistake at a system setup setting, you can reset it by selecting the desired menu from the
System Setup Menu screen.
Setting the type of speakers
• Set up in function of your speaker systems. Performing this setup optimizes the system.
• The composition of the signals output to the different channels and the frequency response are adjusted
automatically according to the combination of speakers actually being used.
1
At the System Setup Menu select "Speaker Configuration".
2
Switch to the speaker configuration screen.
3
Set whether or not speakers
are connected and, if so, their
size parameters.
• To select the speaker
• To select the parameter
Center Sp.
Front Sp.
Subwoofer
Surround Sp.
Surround back Sp.
