1. INTRODUCTION
CONTROLS, CONNECTORS AND INDICATORS (Continued)

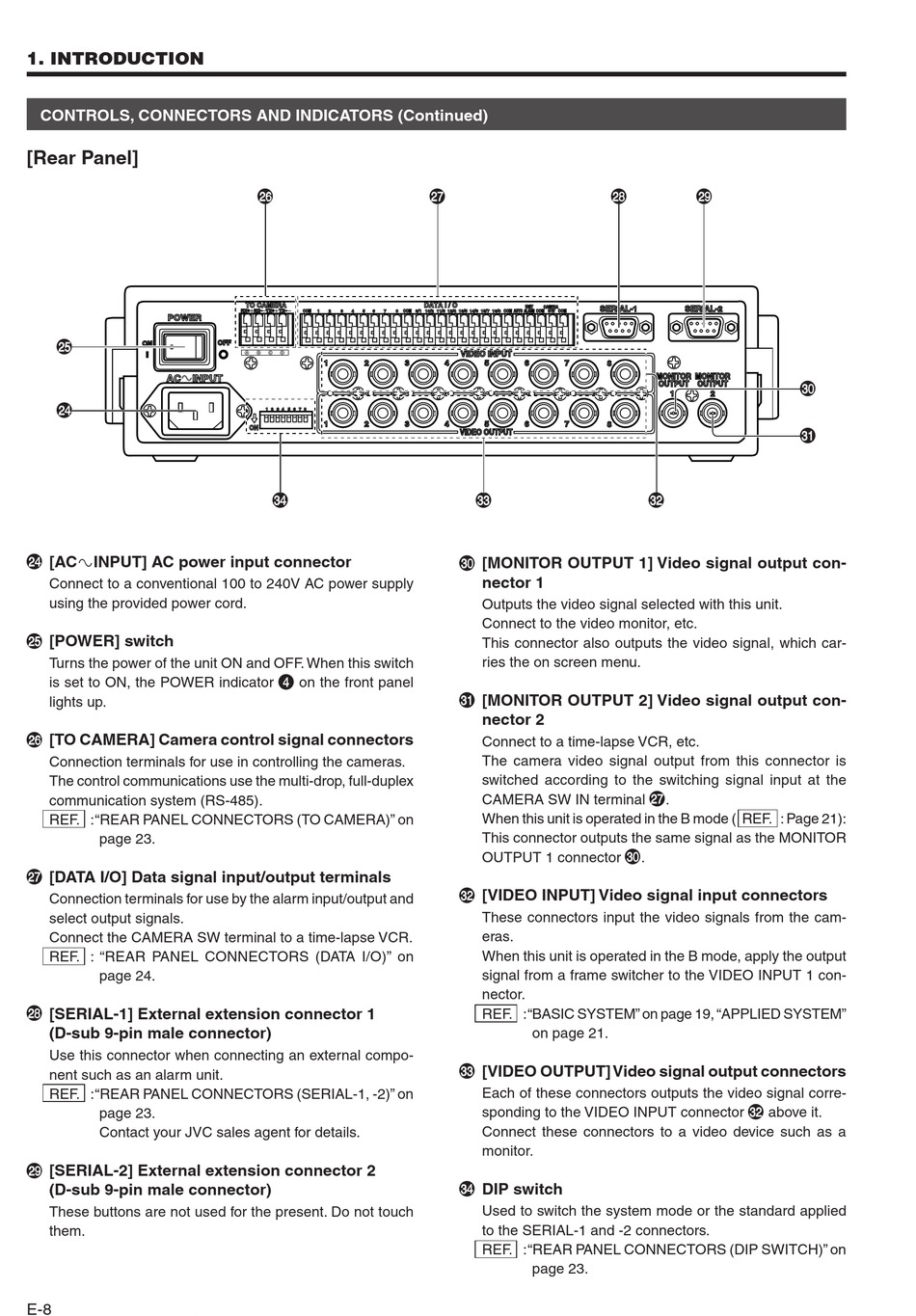

[Rear Panel]
POWER
fi
ON
`
AC INPUT
›
›
[AC ` INPUT] AC power input connector
Connect to a conventional 100 to 240V AC power supply
using the provided power cord.
fi
[POWER] switch
Turns the power of the unit ON and OFF. When this switch
is set to ON, the POWER indicator
lights up.
fl
[TO CAMERA] Camera control signal connectors
Connection terminals for use in controlling the cameras.
The control communications use the multi-drop, full-duplex
communication system (RS-485).
REF. :"REAR PANEL CONNECTORS (TO CAMERA)" on
page 23.
‡
[DATA I/O] Data signal input/output terminals
Connection terminals for use by the alarm input/output and
select output signals.
Connect the CAMERA SW terminal to a time-lapse VCR.
REF. : "REAR PANEL CONNECTORS (DATA I/O)" on
page 24.
°
[SERIAL-1] External extension connector 1
(D-sub 9-pin male connector)
Use this connector when connecting an external compo-
nent such as an alarm unit.
REF. :"REAR PANEL CONNECTORS (SERIAL-1, -2)" on
page 23.
Contact your JVC sales agent for details.
·
[SERIAL-2] External extension connector 2
(D-sub 9-pin male connector)
These buttons are not used for the present. Do not touch
them.
E-8
fl
TO CAMERA TO CAMERA
RX + RX TX + TX
RX RX- TX TX- COM COM 1 2 3 4 5 6 7
OFF
1 2
1 2 3 4 5 6 7 8
1 2
ON
¢
4
on the front panel
‡
DATA I / O DATA I / O
UNIT UNIT CAMERA CAMERA
8 COM COM 9/1 9/1 10/2 10/2 11/3 11/3 12/4 12/4 13/5 13/5 14/6 14/6 15/7 15/7 16/8 16/8 COM COM AUTO AUTO ALARM COM COM SW SW COM COM
VIDEO INPUT
3 4 5 6 7
3 4 5 6 7
VIDEO OUTPUT
£
‚
[MONITOR OUTPUT 1] Video signal output con-
nector 1
Outputs the video signal selected with this unit.
Connect to the video monitor, etc.
This connector also outputs the video signal, which car-
ries the on screen menu.
¡
[MONITOR OUTPUT 2] Video signal output con-
nector 2
Connect to a time-lapse VCR, etc.
The camera video signal output from this connector is
switched according to the switching signal input at the
CAMERA SW IN terminal
When this unit is operated in the B mode ( REF. : Page 21):
This connector outputs the same signal as the MONITOR
OUTPUT 1 connector
™
[VIDEO INPUT] Video signal input connectors
These connectors input the video signals from the cam-
eras.
When this unit is operated in the B mode, apply the output
signal from a frame switcher to the VIDEO INPUT 1 con-
nector.
REF. :"BASIC SYSTEM" on page 19, "APPLIED SYSTEM"
on page 21.
£
[VIDEO OUTPUT] Video signal output connectors
Each of these connectors outputs the video signal corre-
sponding to the VIDEO INPUT connector
Connect these connectors to a video device such as a
monitor.
¢
DIP switch
Used to switch the system mode or the standard applied
to the SERIAL-1 and -2 connectors.
REF. :"REAR PANEL CONNECTORS (DIP SWITCH)" on
page 23.
° ·
SERIAL-1 SERIAL-2
8
MONITOR MONITOR
OUTPUT OUTPUT
1 2
8
™
‡
.
‚
.
™
above it.
‚
¡
