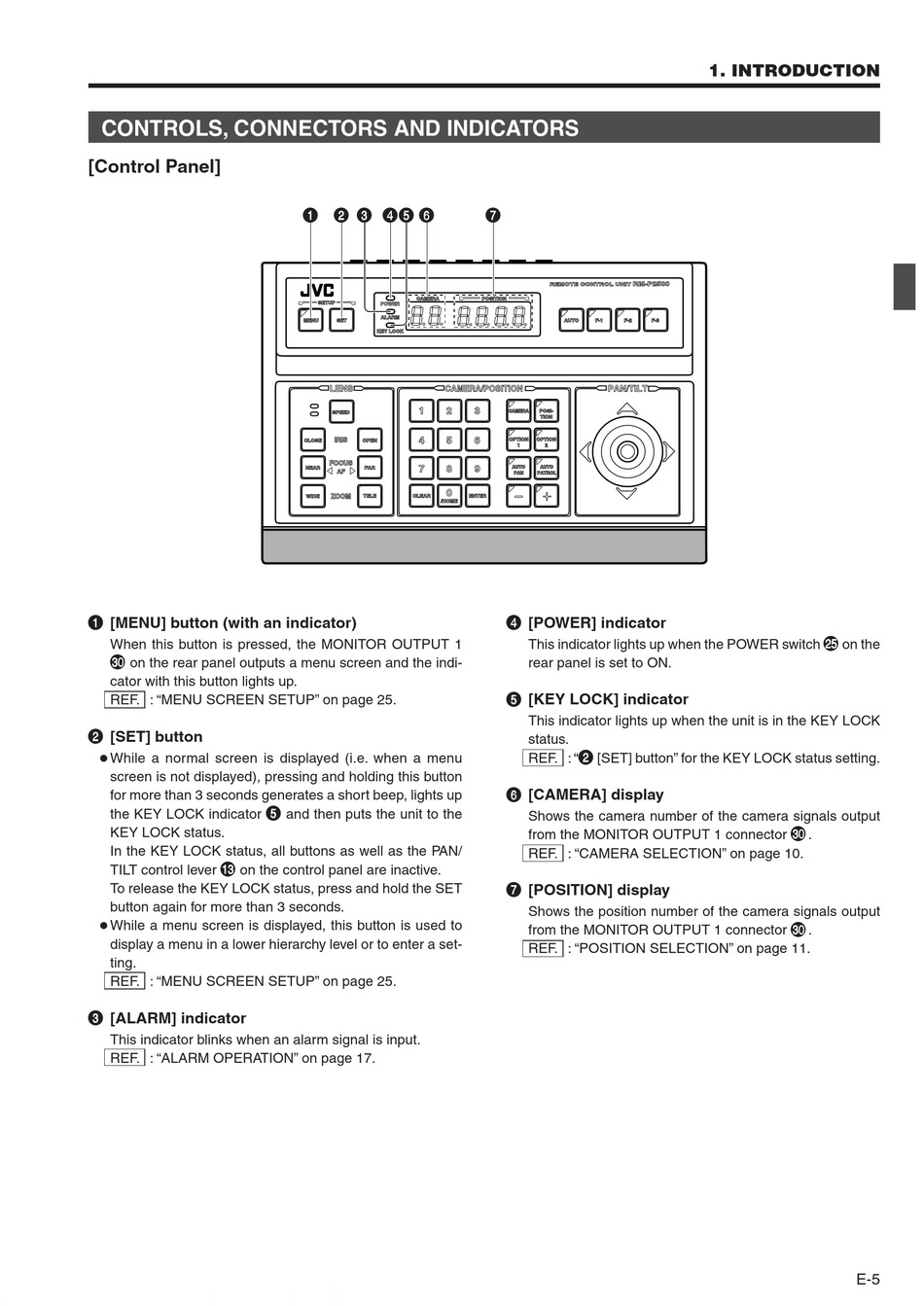

CONTROLS, CONNECTORS AND INDICATORS

[Control Panel]
1
[MENU] button (with an indicator)
When this button is pressed, the MONITOR OUTPUT 1
‚
on the rear panel outputs a menu screen and the indi-
cator with this button lights up.
REF. : "MENU SCREEN SETUP" on page 25.
2
[SET] button
● While a normal screen is displayed (i.e. when a menu
screen is not displayed), pressing and holding this button
for more than 3 seconds generates a short beep, lights up
the KEY LOCK indicator
KEY LOCK status.
In the KEY LOCK status, all buttons as well as the PAN/
#
TILT control lever on the control panel are inactive.
To release the KEY LOCK status, press and hold the SET
button again for more than 3 seconds.
● While a menu screen is displayed, this button is used to
display a menu in a lower hierarchy level or to enter a set-
ting.
REF. : "MENU SCREEN SETUP" on page 25.
3
[ALARM] indicator
This indicator blinks when an alarm signal is input.
REF. : "ALARM OPERATION" on page 17.
1 2 3 4 5 6
CAMERA CAMERA
SETUP SETUP
POWER
ALARM
MENU MENU SET SET
KEY LOCK
LENS
1
SPEED SPEED
4
IRIS IRIS
CLOSE CLOSE OPEN OPEN
FOCUS FOCUS
7
NEAR NEAR FAR FAR
AF AF
WIDE WIDE ZOOM ZOOM TELE TELE CLEAR CLEAR
5
and then puts the unit to the
7
REMOTE CONTROL UNIT REMOTE CONTROL UNIT
POSITION POSITION
AUTO AUTO F-1 F-1
CAMERA/POSITION CAMERA/POSITION PAN/TILT
2 3
CAMERA CAMERA POSI- POSI-
TION TION
5 6
OPTION OPTION OPTION OPTION
1 2
8 9 AUTO AUTO AUTO AUTO
PAN PAN PATROL PATROL
0
ENTER ENTER
/HOME /HOME
4
[POWER] indicator
This indicator lights up when the POWER switch
rear panel is set to ON.
5
[KEY LOCK] indicator
This indicator lights up when the unit is in the KEY LOCK
status.
2
REF. : " [SET] button" for the KEY LOCK status setting.
6
[CAMERA] display
Shows the camera number of the camera signals output
from the MONITOR OUTPUT 1 connector
REF. : "CAMERA SELECTION" on page 10.
7
[POSITION] display
Shows the position number of the camera signals output
from the MONITOR OUTPUT 1 connector
REF. : "POSITION SELECTION" on page 11.
