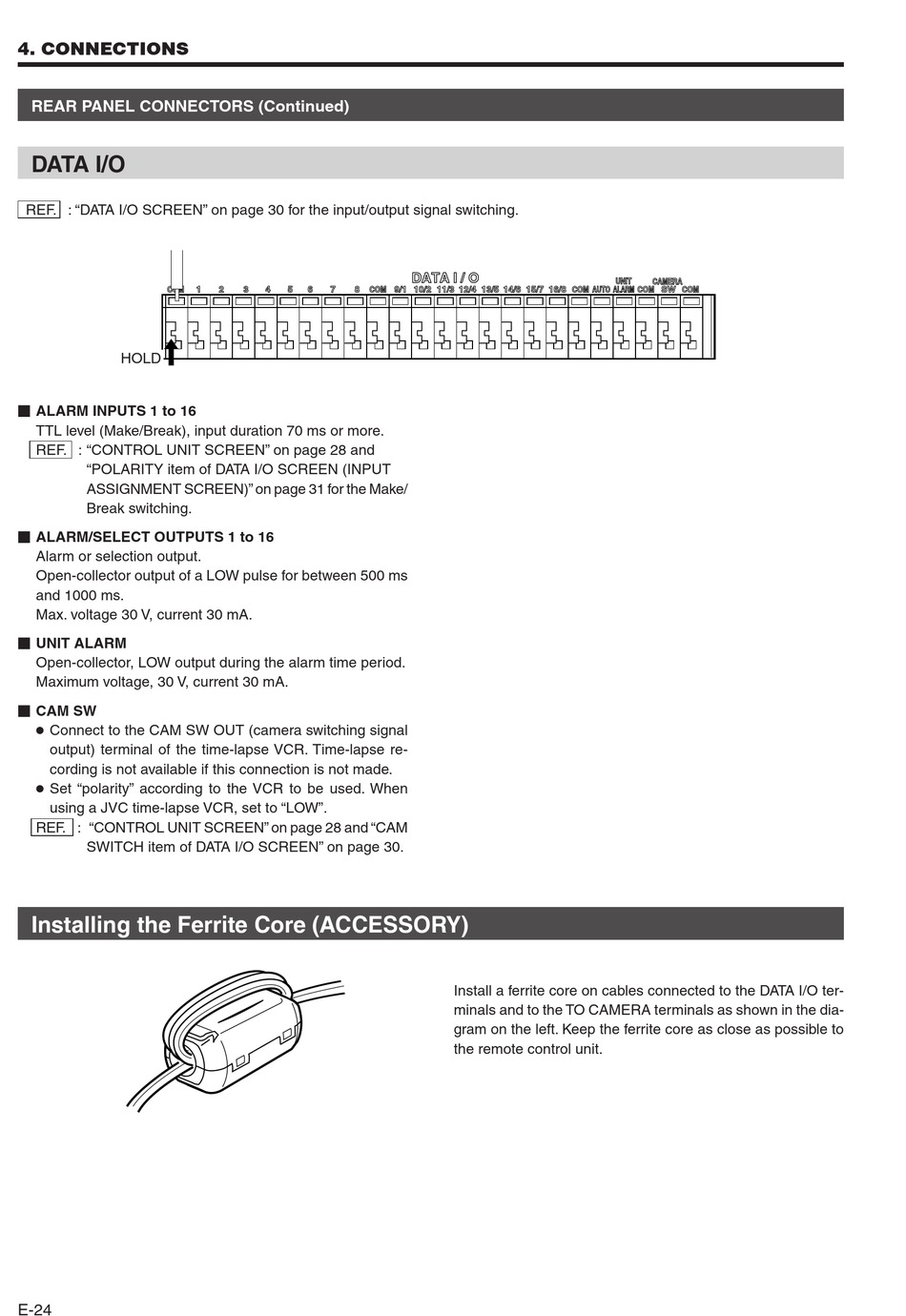

4. CONNECTIONS
REAR PANEL CONNECTORS (Continued)
DATA I/O
REF. : "DATA I/O SCREEN" on page 30 for the input/output signal switching.
COM
HOLD
ALARM INPUTS 1 to 16
TTL level (Make/Break), input duration 70 ms or more.
REF. : "CONTROL UNIT SCREEN" on page 28 and
"POLARITY item of DATA I/O SCREEN (INPUT
ASSIGNMENT SCREEN)" on page 31 for the Make/
Break switching.
ALARM/SELECT OUTPUTS 1 to 16
Alarm or selection output.
Open-collector output of a LOW pulse for between 500 ms
and 1000 ms.
Max. voltage 30 V, current 30 mA.
UNIT ALARM
Open-collector, LOW output during the alarm time period.
Maximum voltage, 30 V, current 30 mA.
CAM SW
● Connect to the CAM SW OUT (camera switching signal
output) terminal of the time-lapse VCR. Time-lapse re-
cording is not available if this connection is not made.
● Set "polarity" according to the VCR to be used. When
using a JVC time-lapse VCR, set to "LOW".
REF. : "CONTROL UNIT SCREEN" on page 28 and "CAM
SWITCH item of DATA I/O SCREEN" on page 30.
Installing the Ferrite Core (ACCESSORY)
E-24
1 2 3 4 5 6 7 8
DATA I / O
COM 9/1 10/2 11/3 12/4 13/5 14/6 15/7 16/8 COM
Install a ferrite core on cables connected to the DATA I/O ter-
minals and to the TO CAMERA terminals as shown in the dia-
gram on the left. Keep the ferrite core as close as possible to
the remote control unit.
UNIT CAMERA
AUTO ALARM ALARM COM SW COM
