6. OTHER

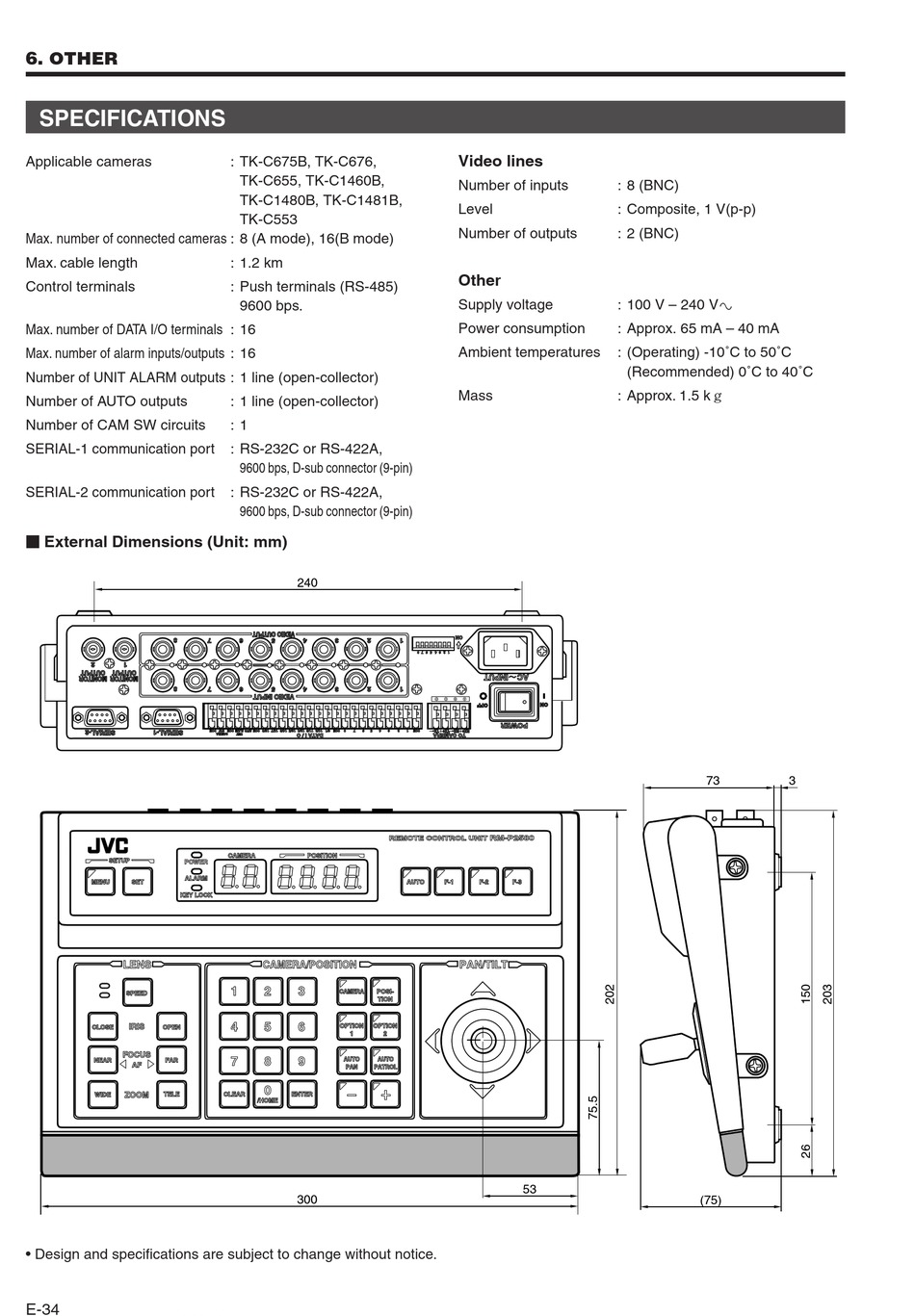

SPECIFICATIONS

Applicable cameras
Max. number of connected cameras : 8 (A mode), 16(B mode)
Max. cable length
Control terminals
Max. number of DATA I/O terminals : 16
Max. number of alarm inputs/outputs : 16
Number of UNIT ALARM outputs : 1 line (open-collector)
Number of AUTO outputs
Number of CAM SW circuits
SERIAL-1 communication port
SERIAL-2 communication port
External Dimensions (Unit: mm)
SETUP
POWER WER
ALARM ALARM
MENU SET
KEY LOCK KEY LOCK
LENS
SPEED
IRIS
CLOSE OPEN
FOCUS
NEAR FAR
AF
WIDE ZOOM TELE
• Design and specifications are subject to change without notice.
E-34
: TK-C675B, TK-C676,
TK-C655, TK-C1460B,
TK-C1480B, TK-C1481B,
TK-C553
: 1.2 km
: Push terminals (RS-485)
9600 bps.
: 1 line (open-collector)
: 1
: RS-232C or RS-422A,
9600 bps, D-sub connector (9-pin)
: RS-232C or RS-422A,
9600 bps, D-sub connector (9-pin)
240
REMOTE CONTROL UNIT
CAMERA POSITION
CAMERA/POSITION CAMERA/POSITION
1 2 3
CAMERA CAMERA POSI-
TION
4 5 6
OPTION OPTION
1 2
7 8 9
AUTO AUTO AUTO AUTO
PAN PAN PATROL PATROL
0
CLEAR ENTER
/HOME
300
Video lines
Number of inputs
Level
Number of outputs
Other
Supply voltage
Power consumption
Ambient temperatures
Mass
RM-P2580
AUTO F-1 F-2 F-3
PAN/TILT
53
: 8 (BNC)
: Composite, 1 V(p-p)
: 2 (BNC)
: 100 V – 240 V`
: Approx. 65 mA – 40 mA
: (Operating) -10˚C to 50˚C
(Recommended) 0˚C to 40˚C
: Approx. 1.5 kn
73 3
(75)
