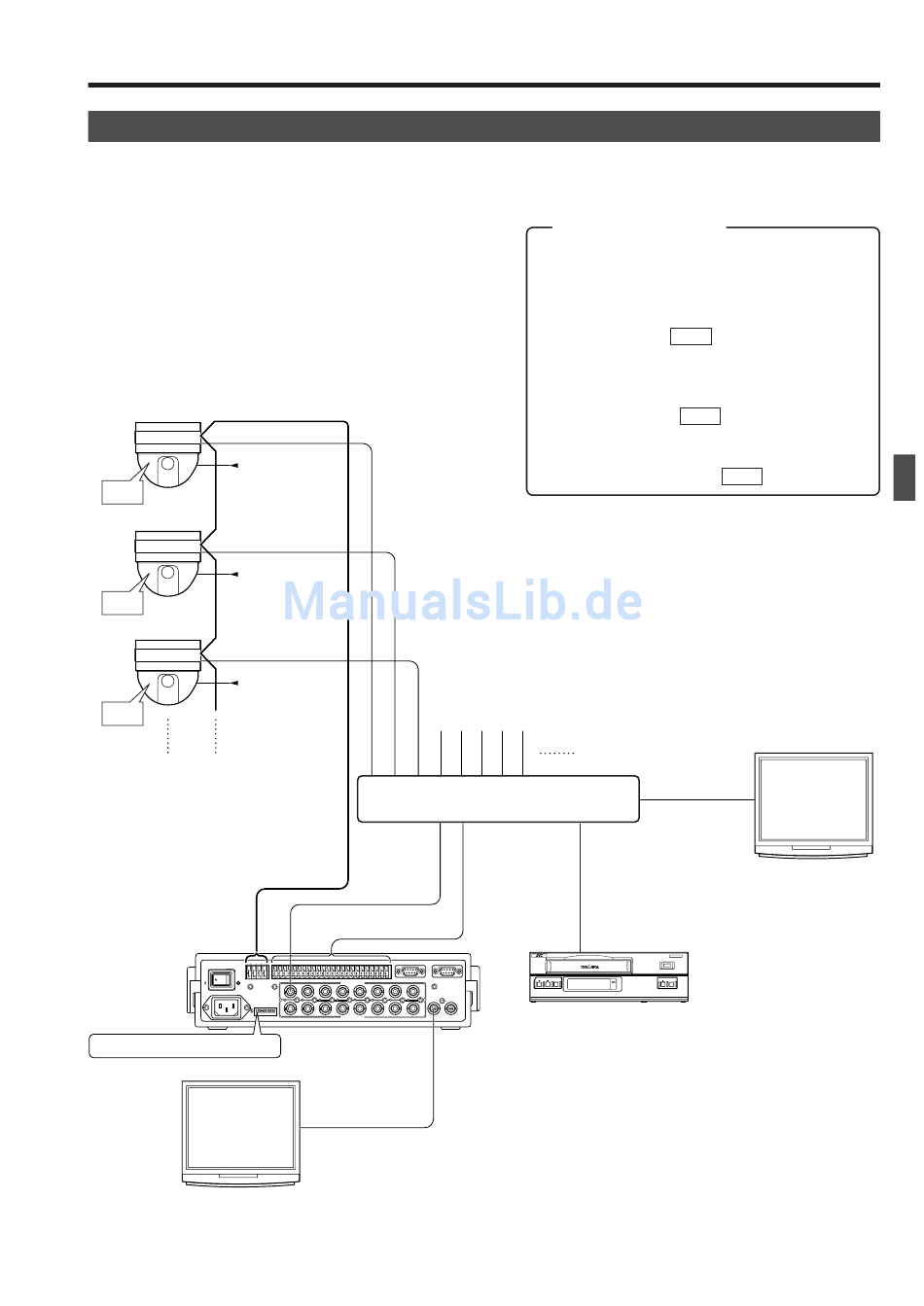

APPLIED SYSTEM (B MODE)

This system accepts the connection of up to 16 cameras.
The video is recorded by means of a switcher, etc.
Read the "Instruction Manual" for each piece of equipment to be
connected before performing the connection.
Contact your JVC sales agent for the switcher, etc. details.
CAMERA 1
AC24V
ID:1
CAMERA 2
AC24V
ID:2
CAMERA 3
AC24V
ID:3
TO
CAMERA
TO CAMERA TO CAMERA
RX RX+ RX RX- TX TX+ TX TX-
POWER
ON OFF
AC ` INPUT
1 2 3
ON
Set Pin 1 to "ON" for B Mode.
MASTER MONITOR
1 2 3
V. OUT
VIDEO INPUT 1
DATA I / O DATA I / O
UNIT UNIT CAMERA CAMERA
SERIAL-1 SERIAL-1
COM COM 1 2 3 4 5 6 7 8 COM 9/1 COM 9/1 10/2 10/2 11/3 11/3 12/4 12/4 13/5 13/5 14/6 14/6 15/7 15/7 16/8 16/8 COM COM AUTO AUTO ALARM ALARM COM COM SW SW COM COM
VIDEO INPUT VIDEO INPUT
1 2 3 4 5 6 7 8
MONITOR MONITOR
OUTPUT OUTPUT
1
4 5 6 7 8
1 2 3 4 5 6 7 8
VIDEO OUTPUT VIDEO OUTPUT
RM-P2580
MONITOR
OUTPUT 1
V.IN
Setting Procedure
1.
Connect all the equipment.
(All of the cameras must be synchronized)
2.
Set the system mode selection to B Mode, and set
the rear DIP Switch1 to "ON".
3.
To set a camera ( REF. : Instruction Manual of the
camera being used)
· Match the ID with the VIDEO INPUT number.
· Set to MULTIDROP and DUPLEX
4.
Preset positions ( REF. : page 27)
5.
Operational setting values can be changed as re-
quired.
· P/T SPEED: 8 STEPS ( REF. : page 29)
4 5 6 7 8
SWITCHER, etc
VCR
OUTPUT
VIDEO
IN
SERIAL-2 SERIAL-2
REC STOP REC
CHECK
OPERATE
MONITOR MONITOR
OUTPUT OUTPUT
2
TIMELAPSE VCR
4. CONNECTIONS
MONITOR
V. OUT V.IN
REC
EJECT OPERATE
E-21
