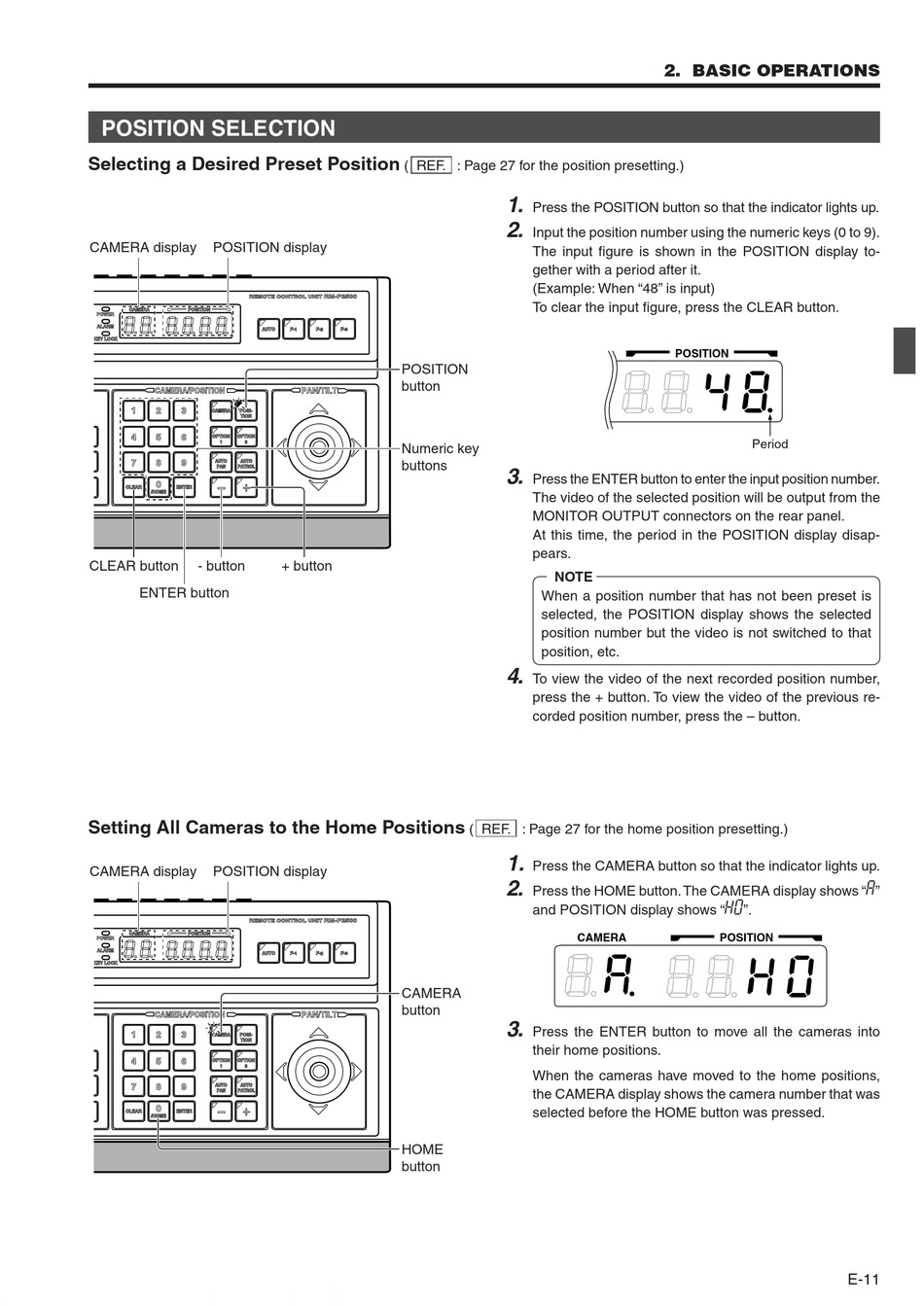

POSITION SELECTION

Selecting a Desired Preset Position
CAMERA display
CAMERA POSITION
SETUP
POWER WER
ALARM ALARM
MENU SET
KEY LOCK KEY LOCK
LENS CAMERA/POSITION
1 2 3
SPEED
4 5 6
IRIS
CLOSE OPEN
FOCUS
7 8 9
NEAR FAR
AF
0
ZOOM TELE CLEAR ENTER
WIDE
/HOME
CLEAR button - button
ENTER button
Setting All Cameras to the Home Positions
CAMERA display
CAMERA CAMERA POSITION POSITION
SETUP
POWER
ALARM
MENU SET
KEY LOCK KEY LOCK
LENS CAMERA/POSITION
1 2 3
SPEED
4 5 6
IRIS
CLOSE OPEN
FOCUS
7 8 9
NEAR FAR
AF
0
WIDE ZOOM TELE CLEAR CLEAR ENTER ENTER
/HOME /HOME
POSITION display
REMOTE CONTROL UNIT REMOTE CONTROL UNIT RM-P2580 RM-P2580
AUTO F-1 F-2 F-3
PAN/TILT
CAMERA CAMERA POSI-
TION
OPTION OPTION
1 2
AUTO AUTO AUTO AUTO
PAN PAN PATROL PATROL
+ button
POSITION display
RM-P2580
REMOTE CONTROL UNIT REMOTE CONTROL UNIT
AUTO AUTO F-1 F-1 F-2 F-2 F-3 F-3
PAN/TILT
CAMERA CAMERA POSI- POSI-
TION TION
OPTION OPTION OPTION OPTION
1 2
AUTO AUTO AUTO
PAN PAN PATROL
( REF. : Page 27 for the position presetting.)
1.
Press the POSITION button so that the indicator lights up.
2.
Input the position number using the numeric keys (0 to 9).
The input figure is shown in the POSITION display to-
gether with a period after it.
(Example: When "48" is input)
To clear the input figure, press the CLEAR button.
POSITION
button
Numeric key
buttons
3.
Press the ENTER button to enter the input position number.
The video of the selected position will be output from the
MONITOR OUTPUT connectors on the rear panel.
At this time, the period in the POSITION display disap-
pears.
NOTE
When a position number that has not been preset is
selected, the POSITION display shows the selected
position number but the video is not switched to that
position, etc.
4.
To view the video of the next recorded position number,
press the + button. To view the video of the previous re-
corded position number, press the – button.
( REF. : Page 27 for the home position presetting.)
1.
Press the CAMERA button so that the indicator lights up.
2.
Press the HOME button. The CAMERA display shows "
and POSITION display shows "
CAMERA
button
3.
Press the ENTER button to move all the cameras into
their home positions.
When the cameras have moved to the home positions,
the CAMERA display shows the camera number that was
selected before the HOME button was pressed.
HOME
button
