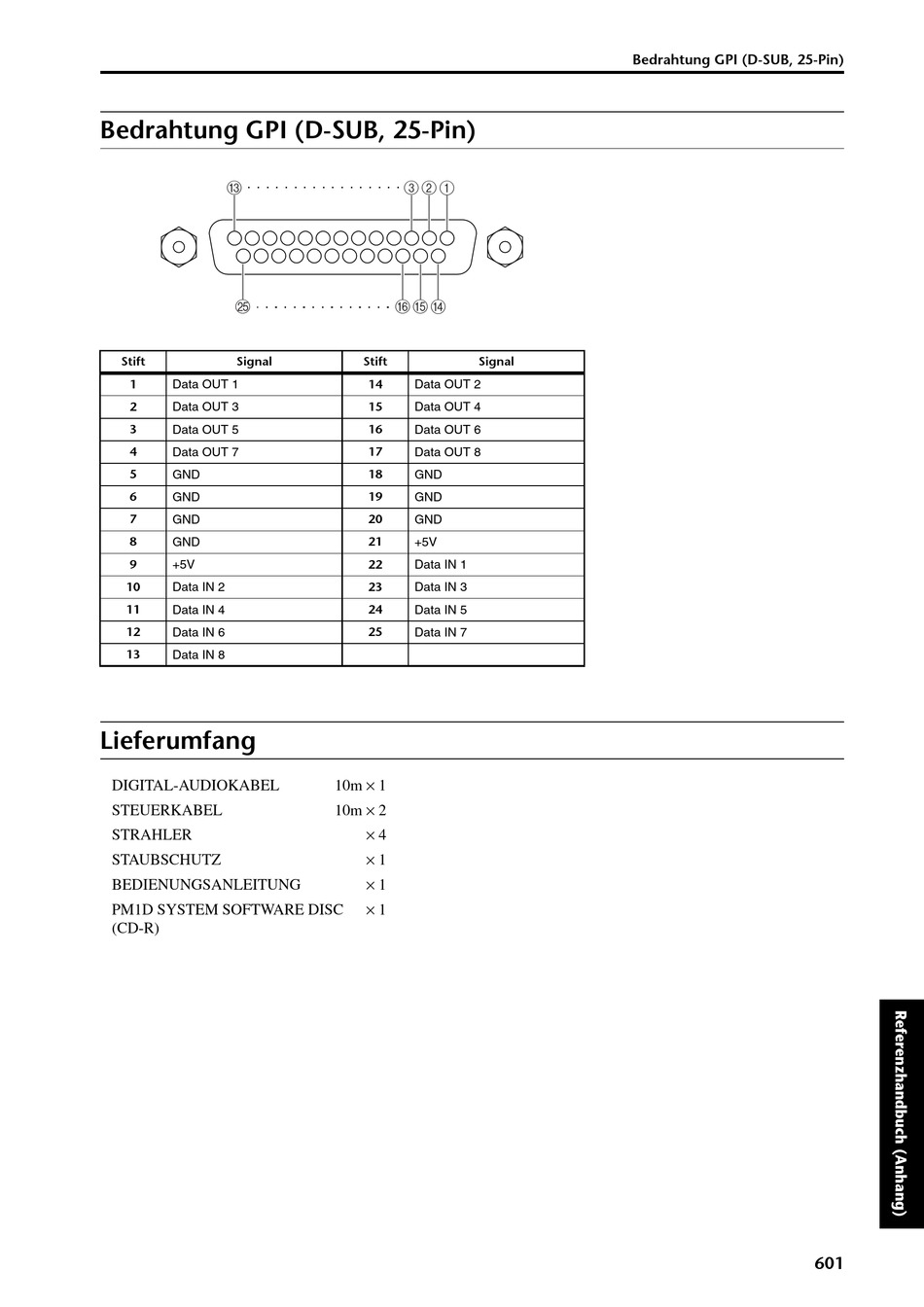

Bedrahtung GPI (D-SUB, 25-Pin)

M
Y
Stift Signal
1
Data OUT 1
2 Data OUT 3
3 Data OUT 5
4
Data OUT 7
5
GND
6
GND
7
GND
8 GND
9 +5V
10 Data IN 2
11
Data IN 4
12
Data IN 6
13
Data IN 8

Lieferumfang

DIGITAL-AUDIOKABEL
STEUERKABEL
STRAHLER
STAUBSCHUTZ
BEDIENUNGSANLEITUNG
PM1D SYSTEM SOFTWARE DISC
(CD-R)
3 2 1
P O N
Stift Signal
14
Data OUT 2
15 Data OUT 4
16 Data OUT 6
17
Data OUT 8
18
GND
19
GND
20
GND
21 +5V
22 Data IN 1
23 Data IN 3
24
Data IN 5
25
Data IN 7
10m × 1
10m × 2
× 4
× 1
× 1
× 1
Bedrahtung GPI (D-SUB, 25-Pin)
601
