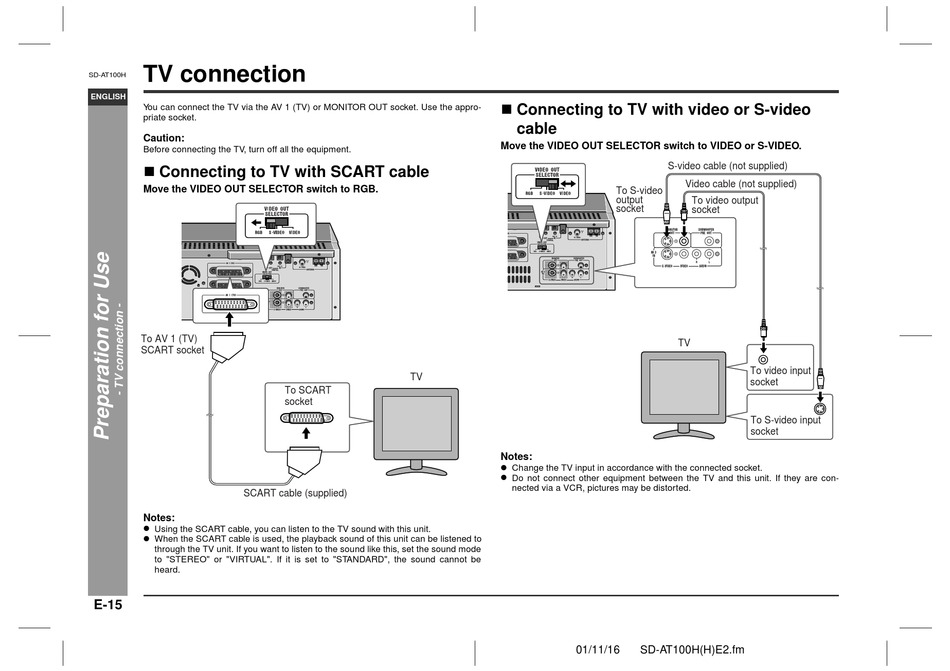

TV connection

SD-AT100H
ENGLISH
You can connect the TV via the AV 1 (TV) or MONITOR OUT socket. Use the appro-
priate socket.
Caution:
Before connecting the TV, turn off all the equipment.
„ Connecting to TV with SCART cable
Move the VIDEO OUT SELECTOR switch to RGB.
To AV 1 (TV)
SCART socket
SCART cable (supplied)
Notes:
z Using the SCART cable, you can listen to the TV sound with this unit.
z When the SCART cable is used, the playback sound of this unit can be listened to
through the TV unit. If you want to listen to the sound like this, set the sound mode
to "STEREO" or "VIRTUAL". If it is set to "STANDARD", the sound cannot be
heard.
E-15
TV
To SCART
socket
„ Connecting to TV with video or S-video
cable
Move the VIDEO OUT SELECTOR switch to VIDEO or S-VIDEO.
S-video cable (not supplied)
To S-video
output
socket
TV
Notes:
z Change the TV input in accordance with the connected socket.
z Do not connect other equipment between the TV and this unit. If they are con-
nected via a VCR, pictures may be distorted.
01/11/16 SD-AT100H(H)E2.fm
Video cable (not supplied)
To video output
socket
To video input
socket
To S-video input
socket
