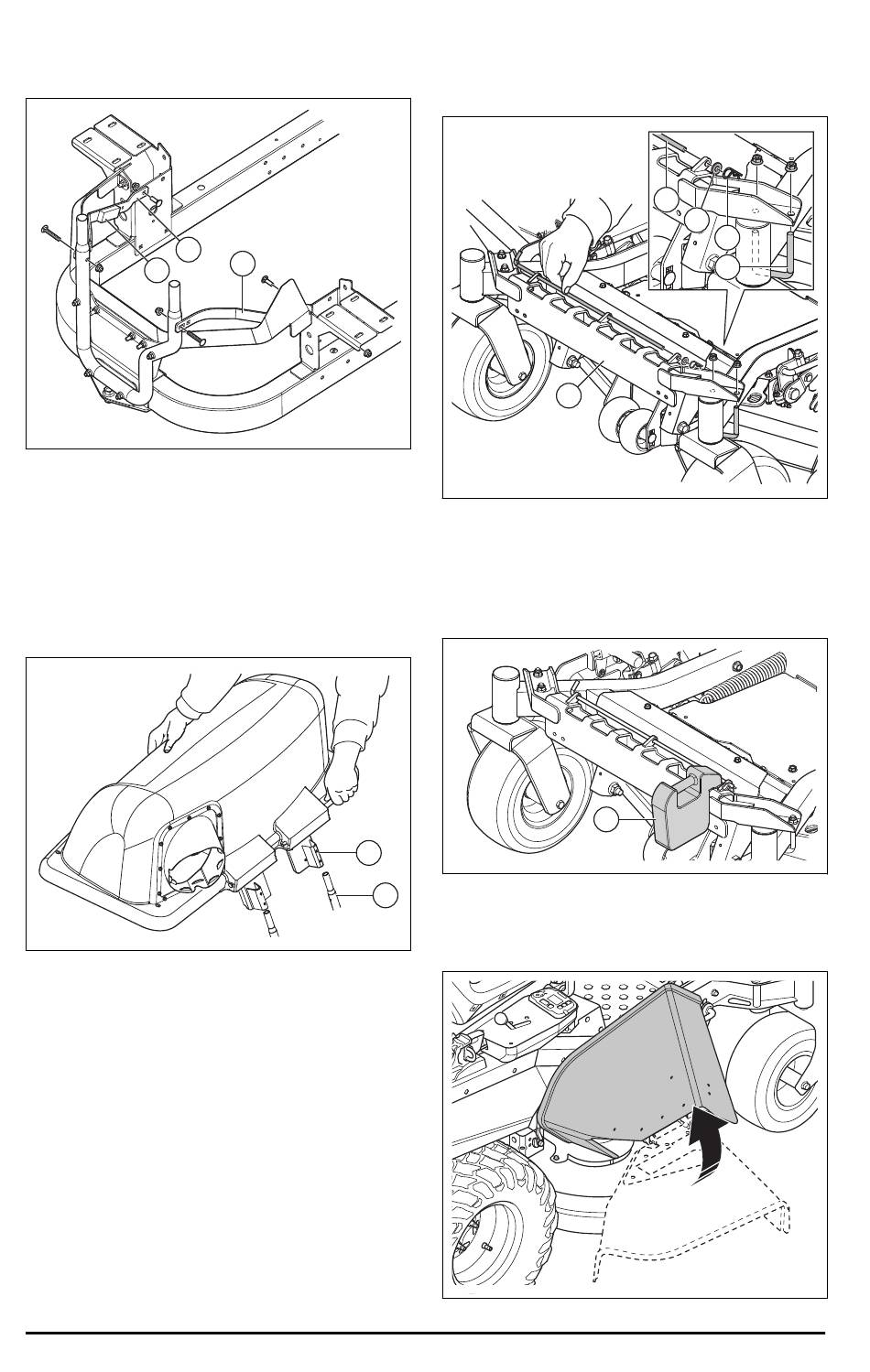

6. Install the straps (I) and (J) to the collector
bracket and the tank brackets with 4 5/16"-18 x
1" carriage bolts and locknuts.
I
K
7. Clean the surface of the strap (I) and attach the
foam strip (K).
8. Make sure that all bolts are tightened.
To install the collector hood
1. Install the collector bracket. Refer to
the collector bracket on page 7 .
2. Align the brackets (A) of the collector hood with
the ends of the collector bracket (B).
3. Put the collector hood down onto the collector
bracket until it is safely attached.
To install the bags
1. Tilt the collector hood.
2. Put the 3 bags on the bracket below the collector
hood.
8
J
To install
A
B
To install the weight mount bracket
1. Install the weight mount bracket (A) on the front
frame.
A
2. Install the U-bolt (B) on the frame and the
bracket with the 2 locknuts.
3. Remove the pin (C) the washer (D) and the rod
(E).
4. Install the weight (F) on the weight mount
bracket.
F
5. Install the pin (C) the washer (D) and the rod (E).
To install the side discharge chute
1. Lift the side discharge cover.
E
D
C
B
