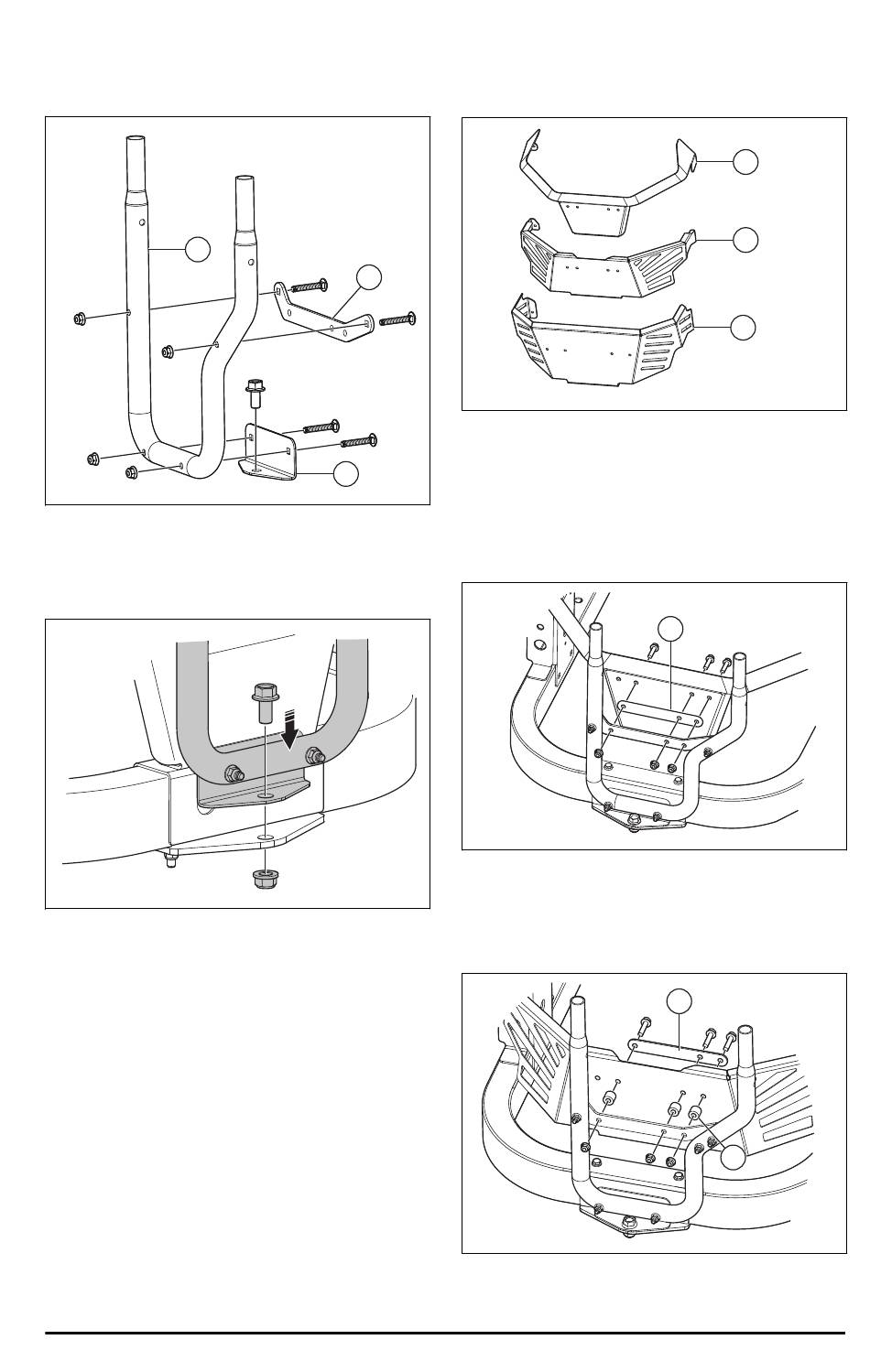

To install the collector bracket
1. Install the 1/2"-13 x 1" hex head flange bolt bolt
through the lower bracket (C).
A
2. Install the upper bracket (B) and the lower
bracket (C) on the collector bracket (A) with the 4
x 5/16"-16 x 2" carriage bolts and locknuts.
3. Put the collector bracket (A) on the hitch plate on
the product.
4. Install the 1/2" locknut on the bolt on the lower
bracket.
2651 - 002 - 04.04.2025
5. Install the collector bracket and spacer plate on
the rear guard (D, E or F) with 3 bolts and
locknuts. If there are no holes on the rear guard
to install the bolts, you must drill the holes:
B
a) Put the upper bracket (B) on the rear guard
b) Drill 3 holes in the rear guard. Use a 5 cm/16
C
c) For type (D) rear guard, install the collector
d) For type (E) rear guard, install the collector
and make a mark for the 3 lower holes.
in. drill bit.
bracket with 3 x 5/16" -18 x 1 1/4" hex head
flange bolts. Install the spacer (G) between
the rear guard and the collector bracket.
G
bracket with 3 x 5/16" -18 x 1 1/2" hex head
flange bolts. Install the spacer tubes between
the rear guard and the collector bracket.
Install the spacer (G) on the opposite side of
the rear guard.
G
D
E
F
H
