6 Commissioning
6.5 Attaching the wire guide
6.5.1 Standard model
NOTICE
• New wire guide liners that have not yet been used must be shortened to the actual length of the cable assembly.
• Each time the wire guide is changed (liner, PA liner), make sure to consult the product information in the instruction
leaflets provided.
• Strip the wire guide 15 mm on the torch side after shortening it.
1
4
1 Sleeve
2 Excess length a

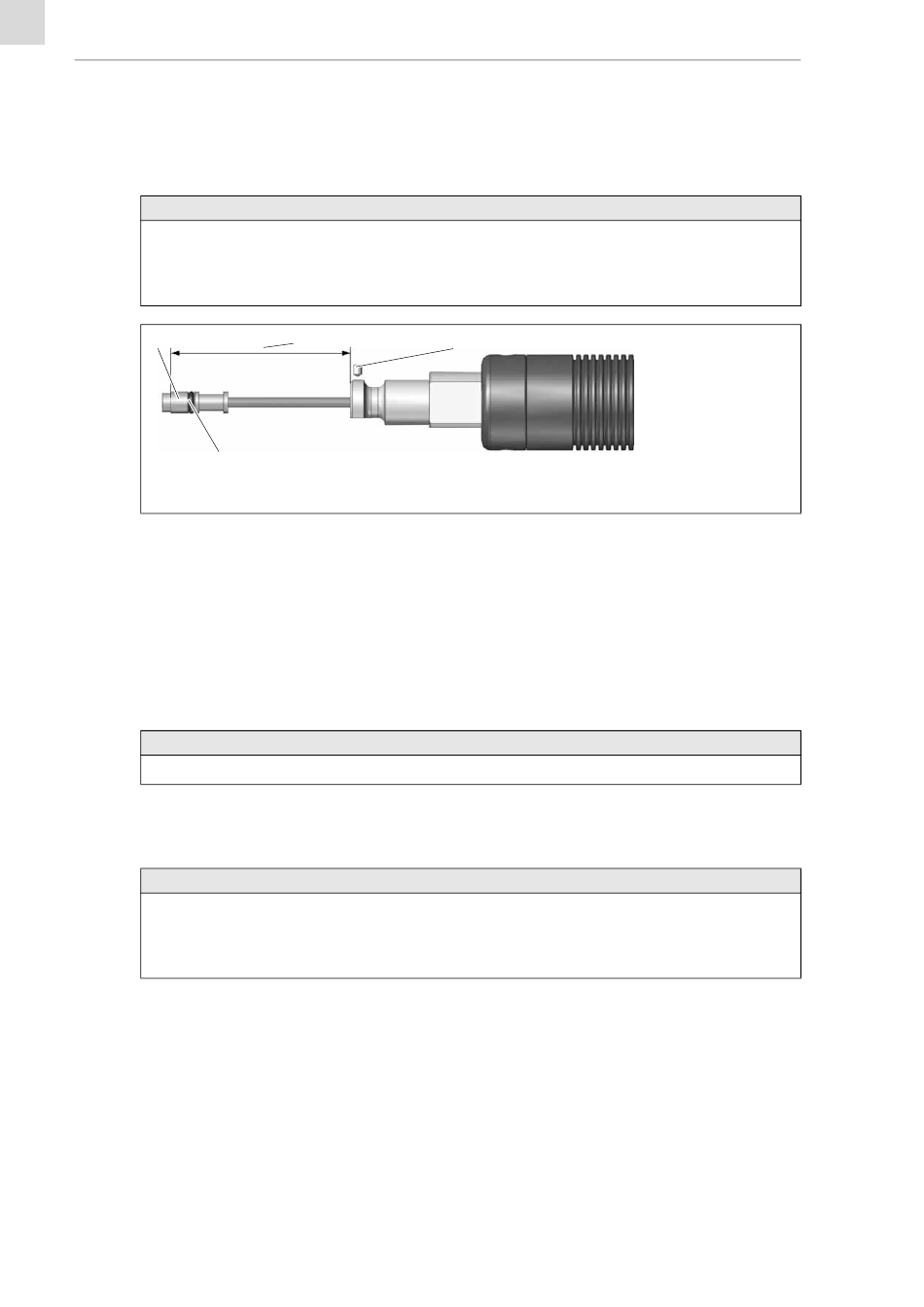

Fig. 17 Determining the excess length of the wire guide
1 Equip the cable assembly with torch neck and wear parts.
2 Insert the wire guide until it reaches the stop in the cable assembly.
3 Determine excess length a (2).
4 Shorten the wire guide on the front side by dimension a (2). Shorten it so that it is slightly tight after installation.
5 Insert the wire guide in the cable assembly until it reaches the stop and secure with set screw M4 × 5 (3).
Observe the following:
 9.2 Cleaning the wire guide on page EN-25
NOTICE
• In this section, the wire guide assembly includes one set screw (3). It is not included in other machine connections.
6.5.2 Wire brake model
The torch neck for the wire brake model must be equipped with a special neckliner.
NOTICE
• New wire guide liners that have not yet been used must be shortened to the actual length of the cable assembly.
• Each time the wire guide is changed (liner, PA liner), make sure to consult the product information in the instruction
leaflets provided.
• Strip the wire guide 15 mm on the torch side after shortening it.
EN - 20
2
a
3
3 Set screw ISO 4027 – M4 × 5
4 O-ring
