Abicor Binzel iSTM mini Bedienungsanleitung Seite 35

iSTM mini
®
iSTM mini for ABIROB G with wire brake
1 2
1 Protective cap
2 Cover

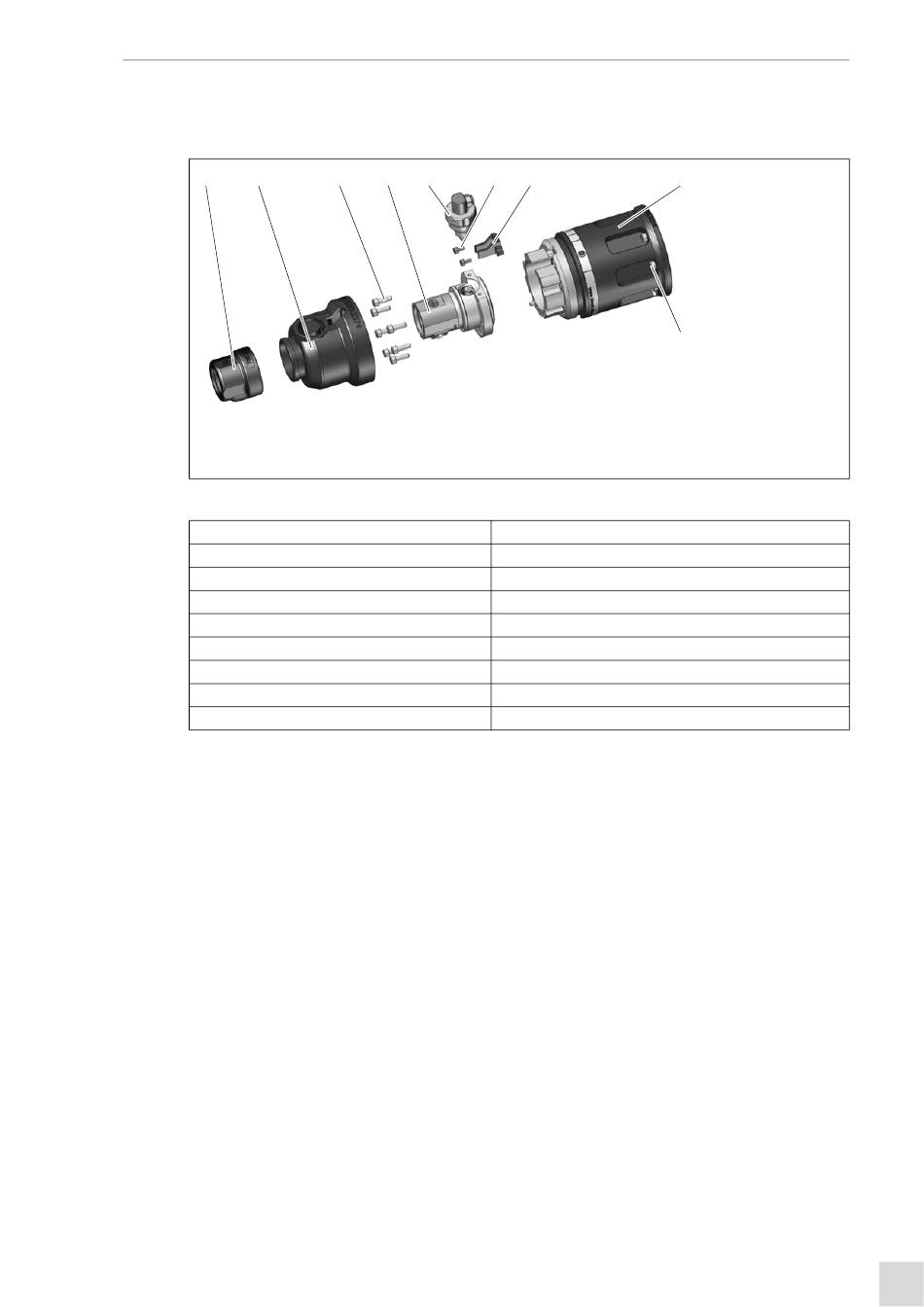

Fig. 5 Scope of delivery of iSTM mini for ABIROB
• Robot mount for iSTM mini
• Cable assembly for iSTM mini
• Rear cover
• Front cover
• Protective cap
• Cover
• Liner
• Straight push-in fitting
• Shielding gas hose Ø 6 mm
Tab. 9 Scope of delivery of iSTM mini for ABIROB
*Size and quantity of cylinder head screws depend on robot type.
BAL.0523.0 • 2019-10-17
3 4 5
3 Cylinder head screw M4 × 16
4 Connection module
5 Countersunk screw M3 × 5
6 7
6 Front cover
7 Cylinder head screw M3 × 6
8 Rear cover
®
G with wire brake
• 8 cylinder head screws M4 × 12*
• 7 cylinder head screws M4 × 16
• 2 cylinder head screws M3 × 6
• 2 countersunk screws M3 × 5
• Socket wrench AF11
• Düsofix silicone-free seal grease, 10 g tin
• Certificate of conformity
• Operating instructions
®
G with wire brake
4 Scope of delivery
8
9
9 iSTM mini
10 Cylinder head screw
M4 × 12
EN - 9
