6.2.2 Attaching the cable assembly to the robot
NOTICE
• After mounting is complete, check for any leaks.
• All leads (shielding gas, compressed air lines, and coolant hoses) must be mounted torsion-free and with sufficient
play.
WARNING
Risk of injury
Serious injuries may be caused by parts swirling around.
• When cleaning with compressed air, wear suitable protective clothing, in particular safety goggles.
®
iSTM mini for ABIROB G
1 2 3
1 Cover
2 Cylinder head screw M4 × 16
(7 pieces)
3 Cylinder head screw M3 × 6
(2 pieces)

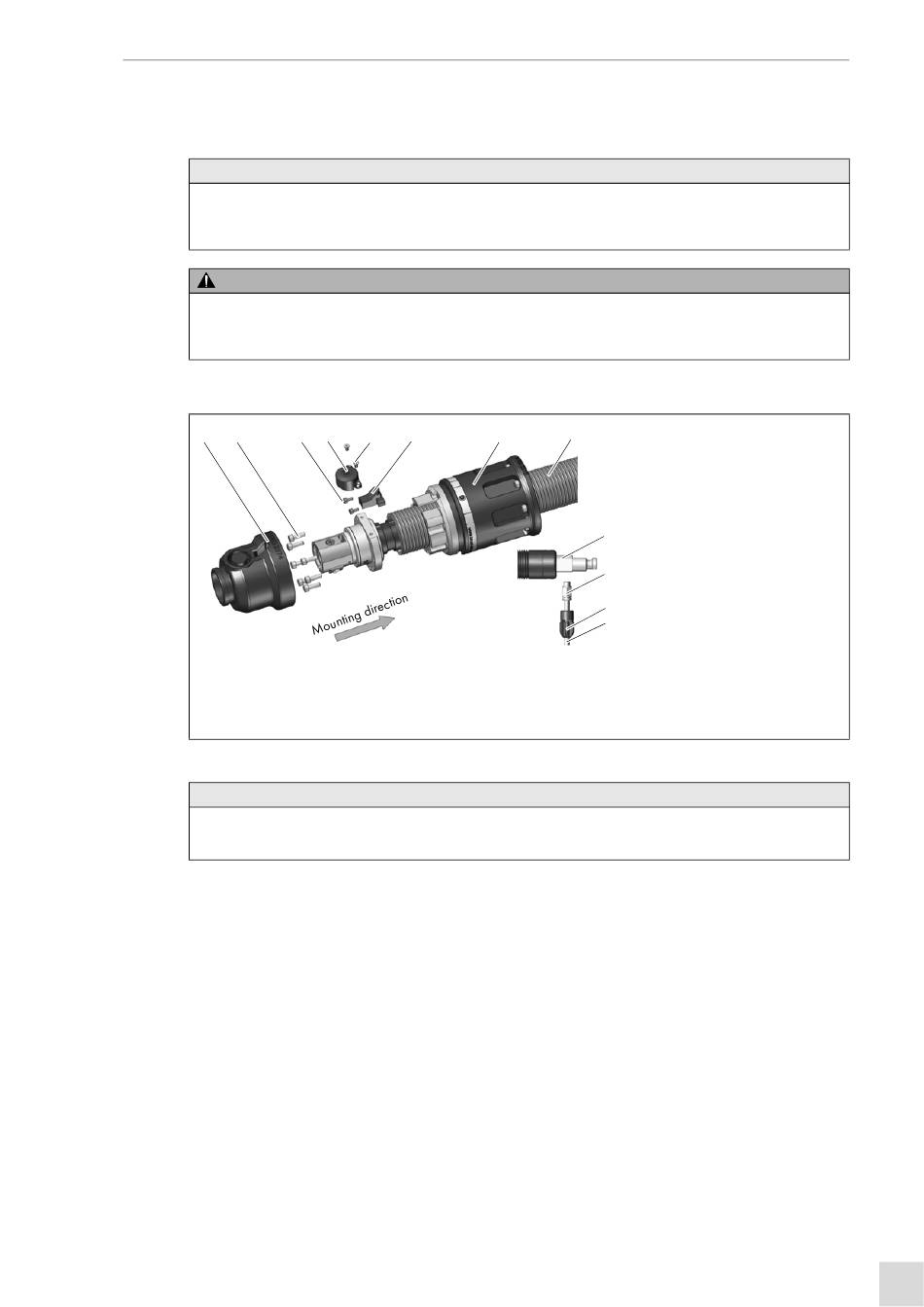

Fig. 11 Mounting the cable assembly iSTM mini for ABIROB
NOTICE
• The welding current port must be connected to the wire feeder.
 Operating instructions for the wire feeder
1 The cable assembly (8) is guided through the mounted iSTM mini welding torch interface (7). Mount the cable assembly
(8) in the mounting direction.
2 Disassemble the straight push-in fitting (10) if already mounted.
3 Mount the cable assembly (8) with seven cylinder head screws M4 × 16 (2) on the iSTM mini (7). Max. tightening
torque M = 4 Nm.
4 Mount the rear cover (6) on the iSTM mini with 2 cylinder head screws M3 × 6 (3).
5 Mount the front cover (4) with 2 countersunk screws DIN 965 M3 × 5 (5) on the cable assembly.
6 Mount the cover on the iSTM mini (7).
7 Tighten the push-in fitting Ø 6 using the screw-in aid AF11.
8 Insert the shielding gas hose and connect it to the shielding gas supply.
BAL.0523.0 • 2019-10-17
4 5 6 7
4 Front cover
5 Countersunk screw M3 × 5
(2 pieces)
6 Rear cover
7 iSTM mini
6 Commissioning
8
9
10
11
12
8 Cable assembly
9 Machine-side connector
10 Push-in fitting Ø 6/G1/8"
11 Screw-in aid AF11
12 Shielding gas hose Ø
®
G
6
