iSTM mini
®
iSTM mini for ABIROB W with wire brake
1 2
1 Protective cap
2 Cover
3 Cylinder head screw M4 × 16

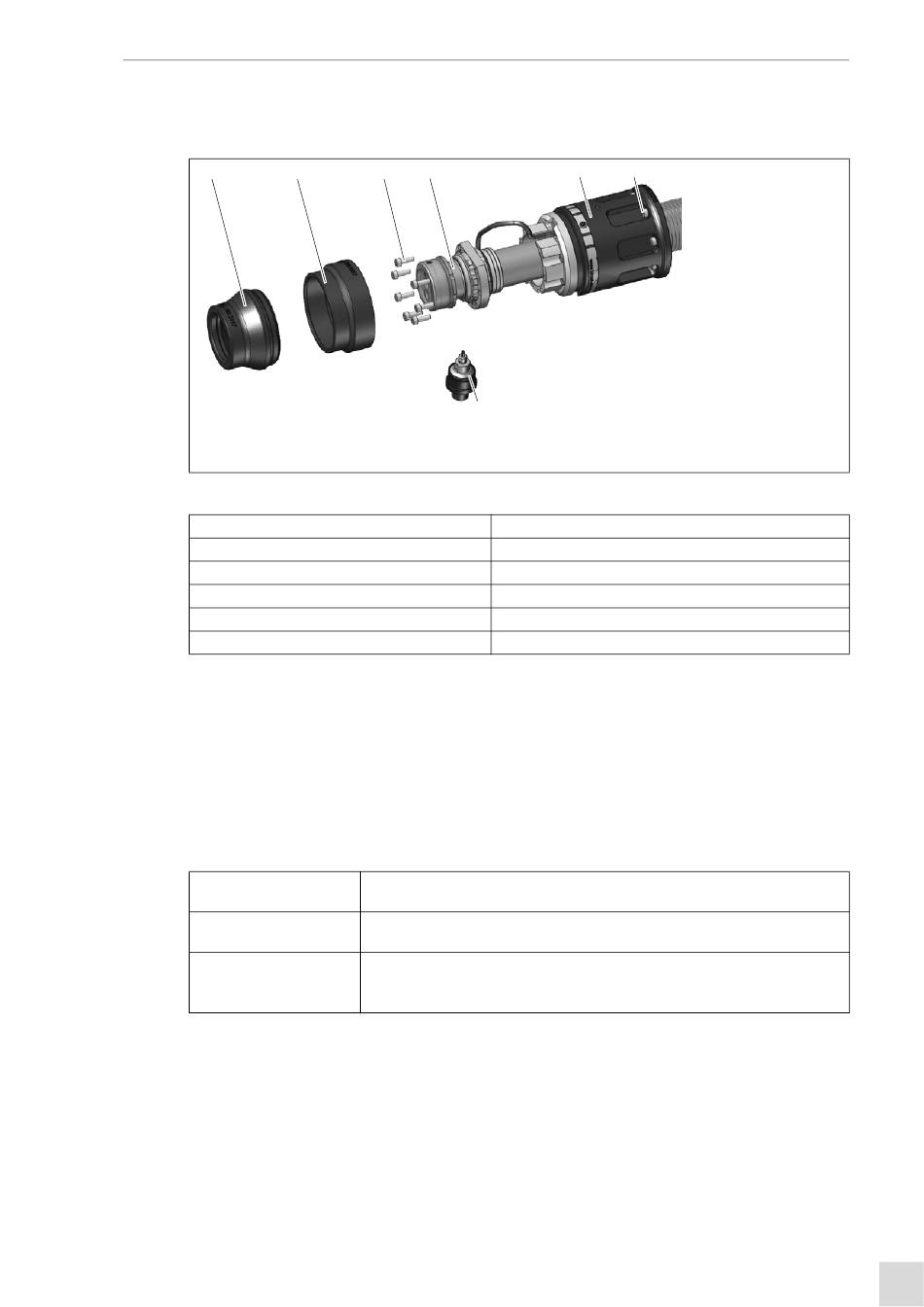

Fig. 7 Scope of delivery of iSTM mini for ABIROB
• Robot mount for iSTM mini
• Cable assembly for iSTM mini W
• Cover
• Protective cap
• Liner
• Wire brake
Tab. 11 Scope of delivery of iSTM mini for ABIROB
*Size and quantity of cylinder head screws depend on robot type.
Order the equipment parts and wear parts separately.
The order data and ID numbers for the equipment parts and wear parts can be found in the current product catalog. Contact
details for consultation and placing orders can be found online at www.binzel-abicor.com.
4.1 Transport
Although the items delivered are carefully checked and packaged, it is not possible to fully rule out the risk of transport
damage.
Goods-in inspection
In case of complaints
Packaging for returns
Tab. 12 Transport
4.2 Storage
Physical storage conditions in a closed environment:
 3.1 Technical data on page EN-5
BAL.0523.0 • 2019-10-17
3 4
7
4 iCAT mini W CAl complete
5 iSTM mini
6 Cylinder head screw M4 × 12
®
W with wire brake
• 8
Cylinder head screw M4 × 12
• 7
Cylinder head screw
• Düsofix silicone-free seal grease, 10 g tin
• Certificate of conformity
• Operating instructions
®
W with wire brake
Use the delivery note to check that everything has been delivered.
Check the delivery for damage (visual inspection).
If the delivery has been damaged during transport, contact the last carrier immediately.
Retain the packaging for potential inspection by the carrier.
Where possible, use the original packaging and the original packaging material. If you
have any questions concerning the packaging and/or how to secure an item during
shipment, please consult your supplier.
4 Scope of delivery
5 6
7 Wire brake
*
M4 × 16
