iSTM mini
®
iSTM mini for ABIROB W
3
2
1
1 Protective cap
2 Cover
3 Cylinder head screw M4 × 16 (7 pieces)

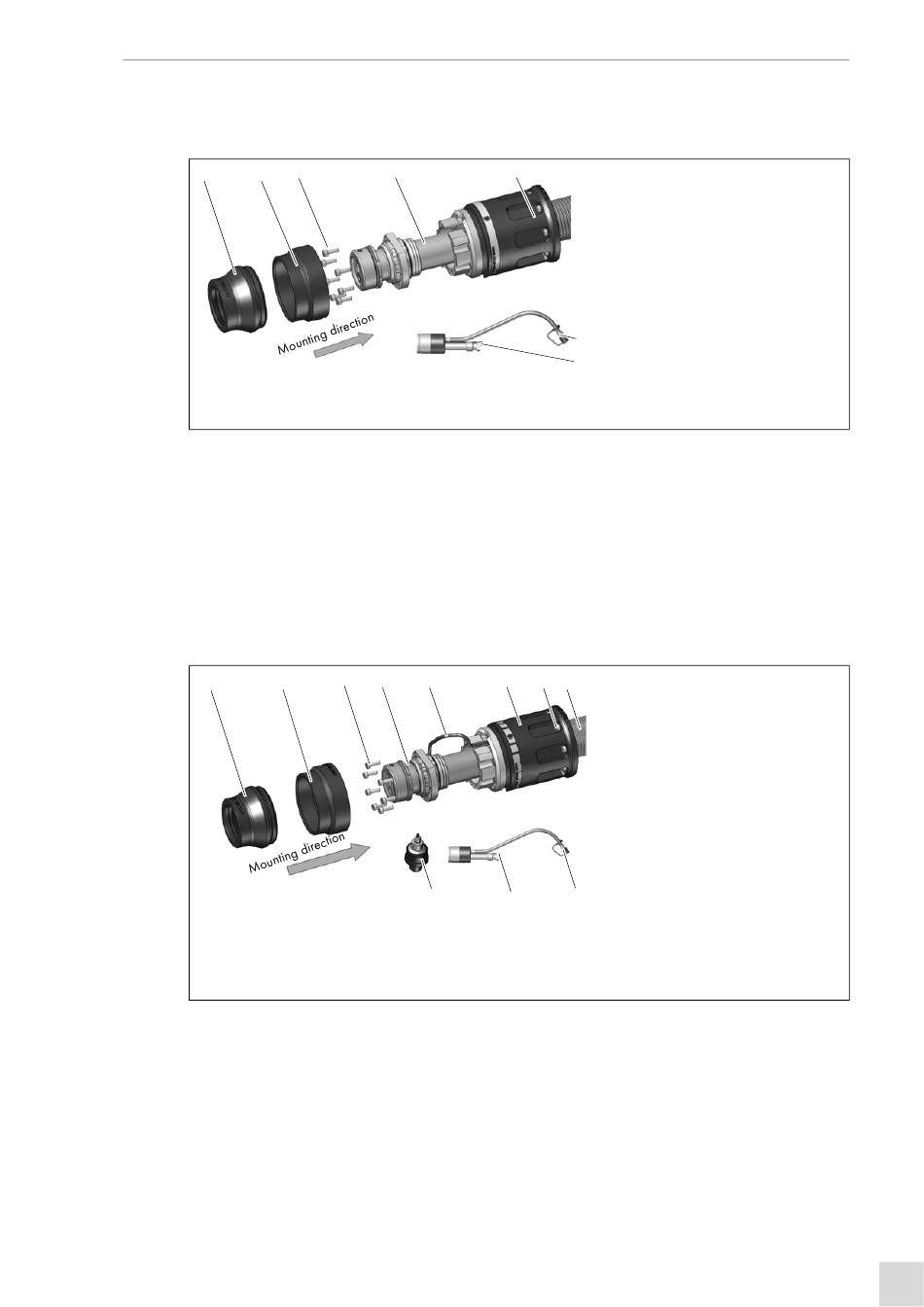

Fig. 13 Mounting the cable assembly iSTM mini for ABIROB
1 The cable assembly (4) is guided through the mounted iSTM mini welding torch interface (5). Mount the cable
assembly (4) in the mounting direction.
2 Mount the cable assembly (4) with seven cylinder head screws M4 × 16 (3) on the iSTM mini (5). Max. tightening
torque M = 4 Nm.
3 Mount the cover (2) and protective cap (1) on the iSTM mini (5).
4 Insert the shielding gas hose (7) and connect it to the shielding gas supply.
5 Connect the coolant lines (6).
®
iSTM mini for ABIROB W with Wire brake
1 2
1 Protective cap
2
Cover
3 Cylinder head screw M4 × 16 (7
pieces)
4 iCAT mini / iSTM mini W CAl complete
Fig. 14 Mounting the cable assembly iSTM mini for ABIROB
1 The cable assembly (8) is guided through the mounted iSTM mini welding torch interface (6). Mount the cable
assembly (8) in the mounting direction.
2 Mount the cable assembly (8) with seven cylinder head screws M4 × 16 (3) on the iSTM mini (6). Max. tightening
torque M = 4 Nm.
3 Mount the cover (2) and protective cap (1) on the iSTM mini (6).
4 Guide the compressed air hose (5) through the opening in the protective cap (1).
BAL.0523.0 • 2019-10-17
4 5
4
5
3 4 5 6
11 10
5 Compressed air-hose
6
iSTM mini
7 Cylinder head screw M4 × 12
8 Cable assembly
6
7
Cable assembly 6 Coolant lines (red + blue)
iSTM mini 7 Shielding gas hose Ø
®
W
7 8
9
9 Coolant lines (red + blue)
10 Shielding gas hose Ø
11 Wire brake
®
W with Wire brake
