NE216

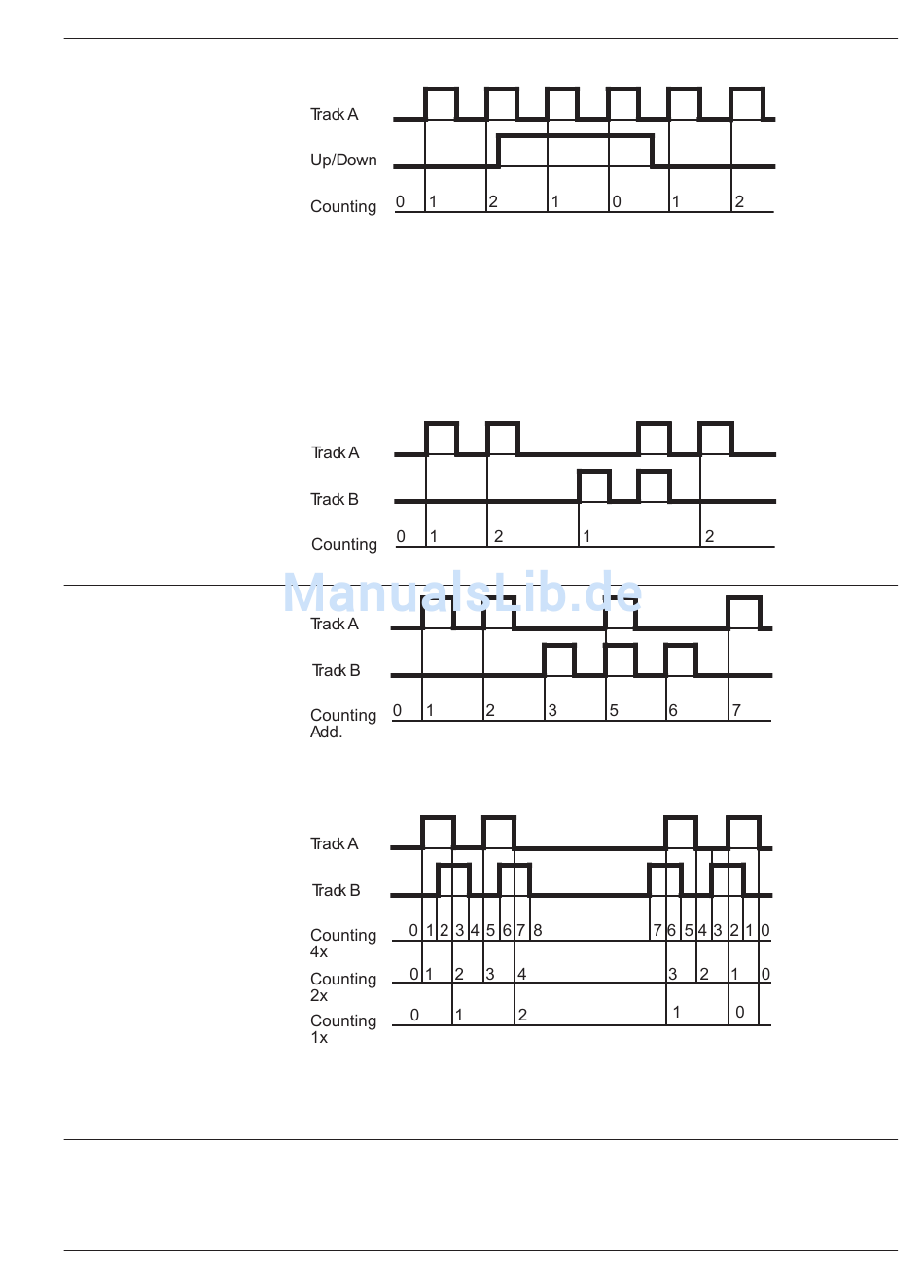

5.2 Counting modes for main counter and totalizer (input mode)
Counting input track A,
Reversal track B (Up/
Down)
The adding and/or subtrac-
ting counting directions are
automatically set when se-
lecting the operating mode
in programming line 21
(diagram for adding mode).
If necessary, it is possible
to use the entry track B for
reversal of direction count.
Programming line 30 to
digit 0.
Differential counting,
track A adding and track
B subtracting (A-B)
Signal duration and particu-
lar time at choice.
Programming line 30 to
digit 1.
Totaling track A adding
and track B adding (A+B)
The adding and/or subtrac-
ting count directions are
automatically set when se-
lecting the operating mode
in programming line 21.
Programming line 30 to
digit 2.
Up and down count with
two counting signals by
90° out of phase
The counting direction is
automatically recognized
on the basis of the 90°
leading or trailing phase
shift. The internal phase
discriminator does the
evaluation. Single, double
or quadruple evaluation is
possible.
Programming line 30 to
digits 3, 4 or 5.
