Baumer NE216 Betriebsanleitung Seite 36

NE216
Line 21
Line 22
Line 23
Line 24
Line 30
Line 31
Line 32
Line 33
36

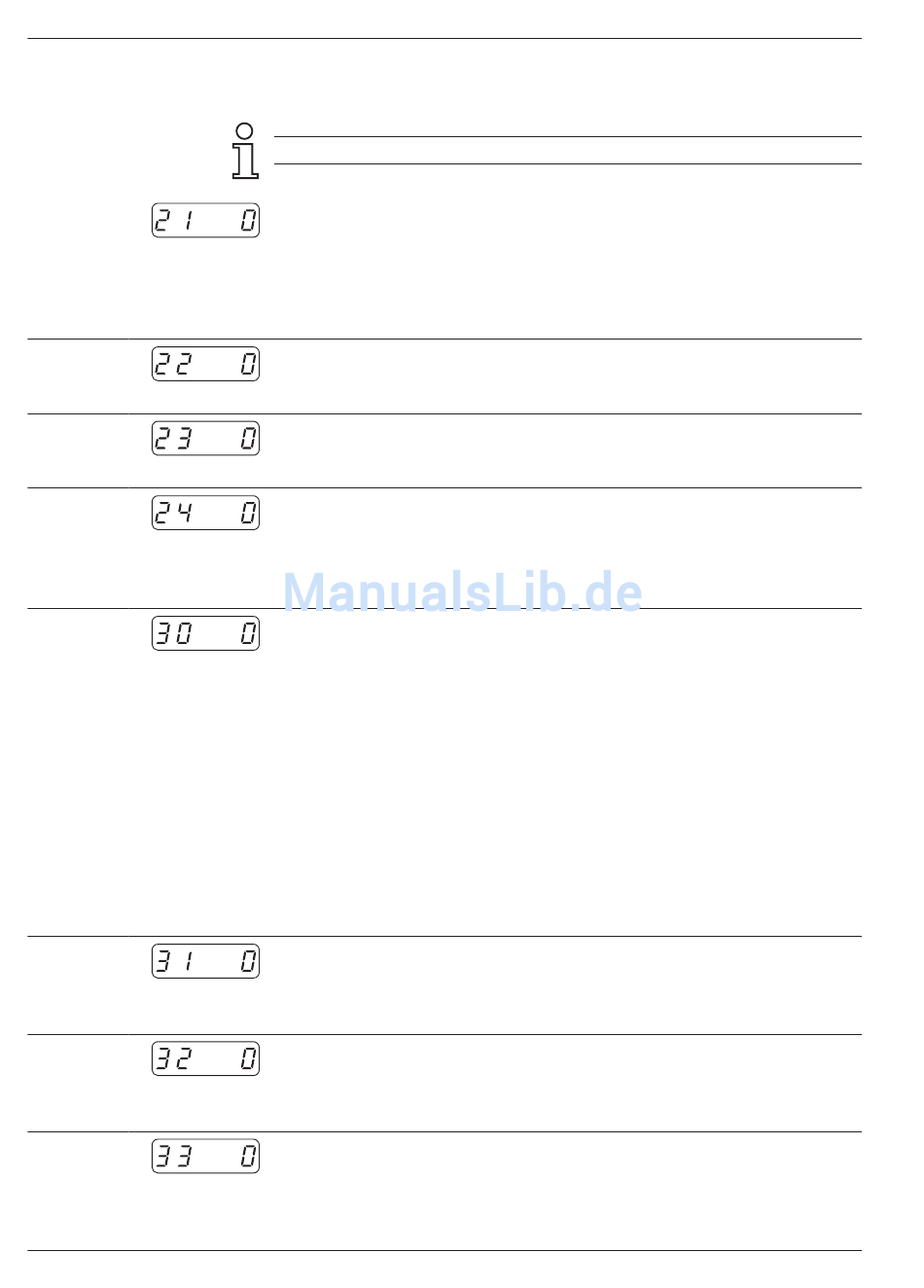

Programming field 3
All functions and values as well as interface parameters conditioned
by the machinery are programmed here.
Each factory setting is marked as such by *.
Operating modes main counter
0 * Adding, final signal at P2, reset to SC
1 Subtracting, final signal at SC; if programming with automatic
reset (Line 23), it is effected at SC
2 Subtracting, final signal at SC; if programming with automatic
reset (Line 23), it is effected at 0.
Preset mode
0 * Step preset
1 P1 - Trailing preset
Reset modes
0 * With automatic reset
1 Without automatic reset
Decimal point for PC, P1, P2, SC, tot
0 * No decimal point
1 0000.0
2 000.00
3 00.000
Counting mode
0 * Counting input track A, reversal track B
1 Subtraction track A adding and track B subtracting (A-B)
2 Totaling track A adding and track B adding (A+B)
3 Track A 90° B single evaluation
4 Track A 90° B double evaluation
5 Track A 90° B quadruple evaluation
•
In case of the counting mode „Track A 90° B" , the frequency of
Track A and B, Line 31 and 32, has to be adjusted to 10 kHz.
6 Time meter with preset. Counting while track A active. Track B
has no function.
7 Time meter with preset. Counting started via track A and stop-
ped via track B. Track A and B edge-triggered.
•
The time range is selected in line 43.
Frequency main counter track A
0 * 10 kHz
1 25 Hz
1 3 Hz
Frequency main counter track B
0 * 10 kHz
1 25 Hz
2 3 Hz
Input logic and operating threshold of signal inputs
0 * PNP Operating threshold 6 V
1 NPN Operating threshold 6 V, or for Namur without Ex. protection
2 PNP Operating threshold 3 V
3 NPN Operating threshold 3 V
