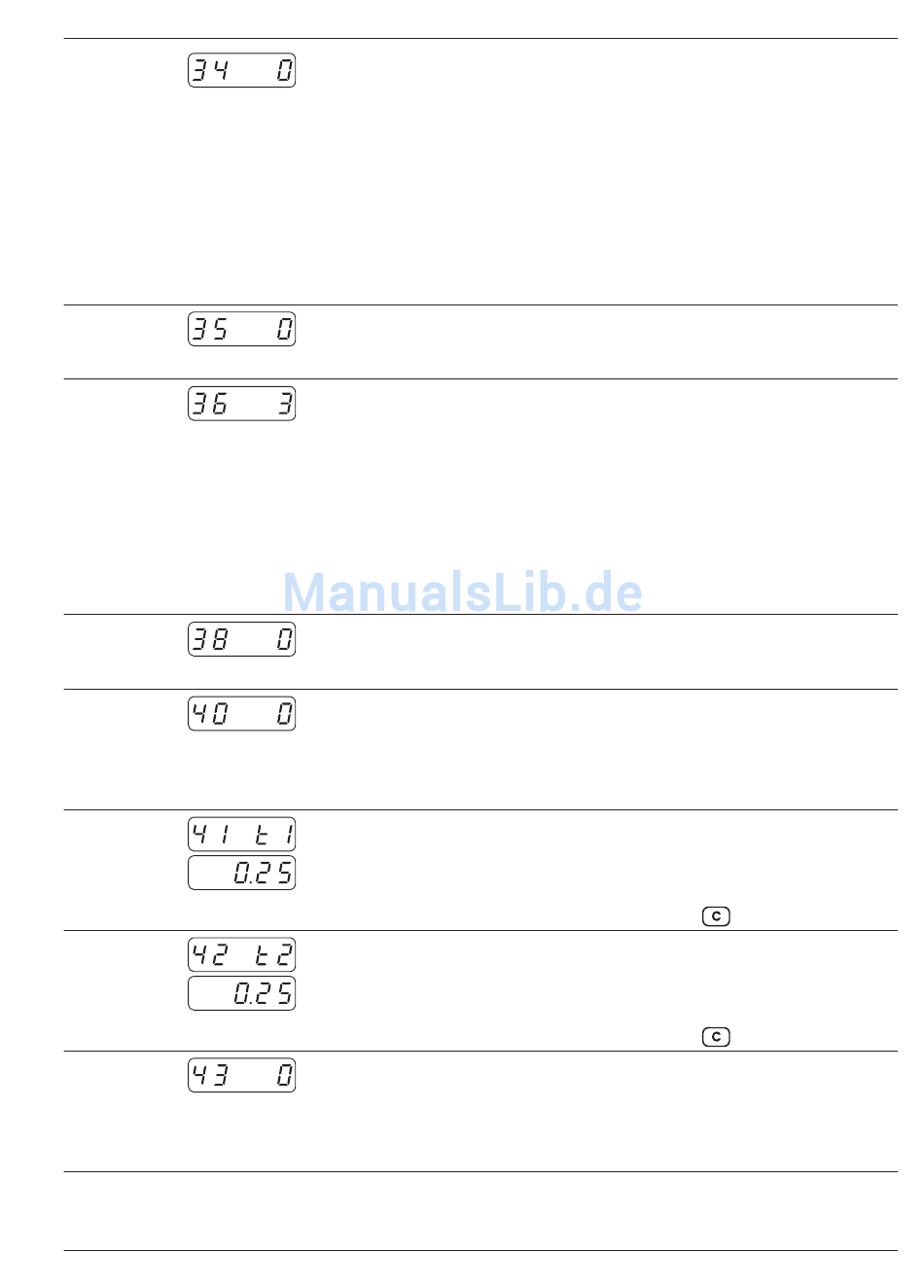

Line 34
Line 35
Line 36
Line 38
Line 40
Line 41
Line 42
Line 43
Function control input 1 (Contact 9 )
0 * PC - Main counter - Reset static
1
PC - Main counter - Reset edge-triggered
2
tot - Totalizer - Reset edge-triggered
3
Stop (PC - Main counter and tot - Totalizer)
4
Hold (PC - Main counter and tot - Totalizer)
5
Programming disabled
6
Keylock (preset change and programming disabled)
7
Print
8
Outputs ON
9
Outputs ON and PC principal counter - Reset edge-triggered
Minimum pulse duration for control input 1
0 * 30 ms
1
100 µs
Function control input 2 (Contact 10)
0
PC - Main counter - Reset static
1
PC - Main counter - Reset edge-triggered
2
tot - Totalizer - Reset edge-triggered
3 * Stop (PC - Main counter and tot - Totalizer)
4
Hold (PC - Main counter and tot - Totalizer)
5
Programming disabled
6
Keylock (Preset change and programming disabled)
7
Print
8
Outputs OFF
Take-over of presets P1, P2, SC
0 * Effective immediately
1
When resetting
Output logic
0 * Both outputs as normally open
1
P1 normally closed, P2 normally open
2
P1 normally open, P2 normally closed
3
Both outputs as normally closed
Output time P1
0,01 s Minimum signal duration
* 0,25 s
99,99 s Maximum signal duration
LAtCH = Latched signal (by pressing the
Output time P2
0,01 s Minimum signal duration
* 0,25 s
99,99 s Maximum signal duration
LAtCH = Latched signal (by pressing the
Time range hour counter
0 * 999 s 99/100 s
1
99 min 59 s 9/10 s
2
999 min 59 s
3
999 h 59 min
www.baumer.com
NE216
key)
key)
37
