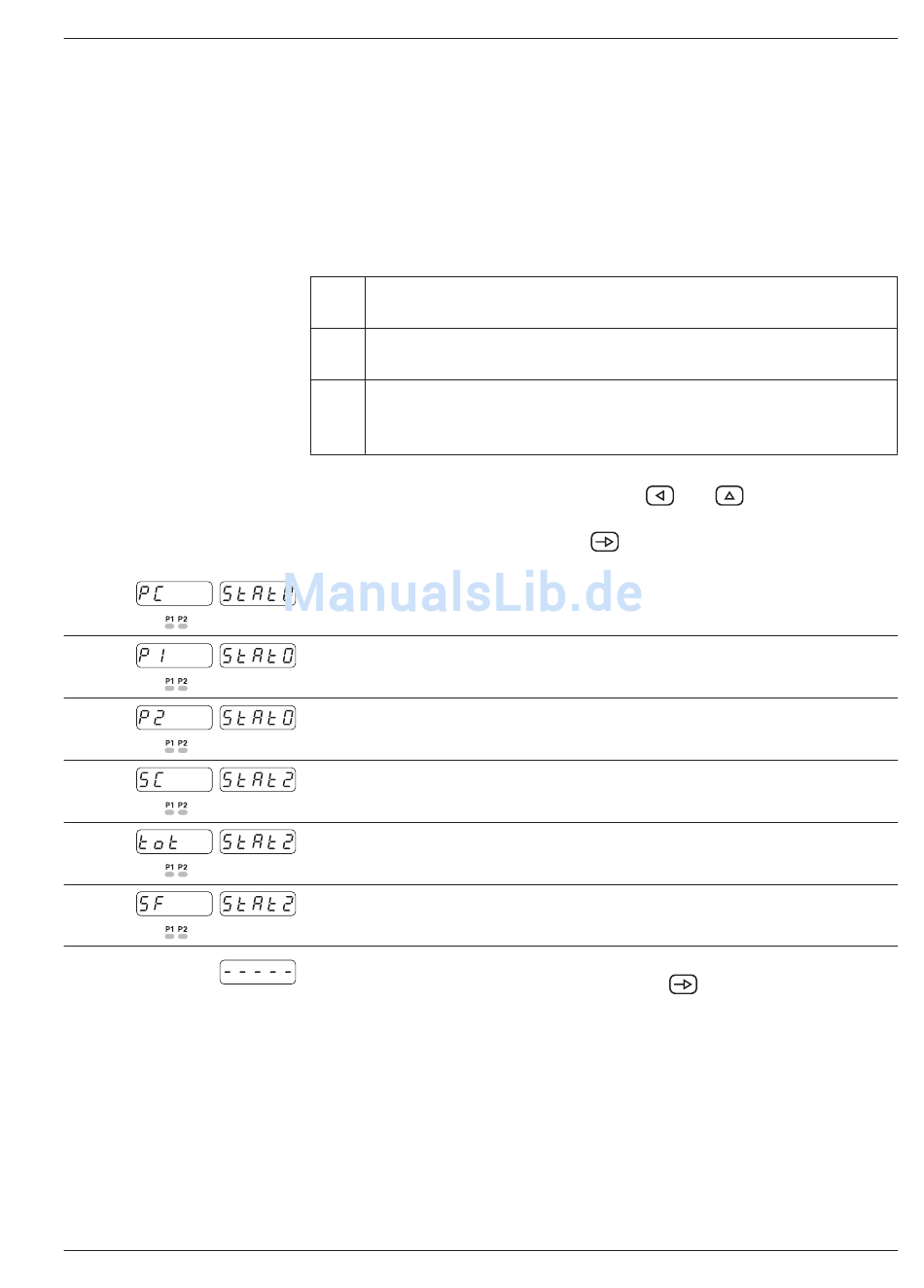

Modify status Enter corresponding status number via
Line 11
Line 12
Line 13
Line 14
Line 15
Line 17
Programming field 2
The individual operation parameters for operator access are disabled
or enabled here.
● „Stat" appears on the display. The denominations of the chosen
line „PC" , „P1" , „P2" , „tot" , „SC" and „SF" are displayed for one
second. Then the display jumps to StAt with the current status
value.
Meaning of the status numbers
0 It is possible to select, read and modify the operation para-
meter on the operator level. (free access)
1 It is possible to select and read the operation parameter on
the operator level. (display only)
2 It is impossible to select the operation parameter on the
operator level. It is corresponding function is however
sustained. (disabled)
Modified status number is automatically memorized when the next
programming line is selected via
PC - Main counter
P1 - Preset 1
P2 - Preset 2
SC - Start count
tot - Totalizer
SF - Scaling factor
The dash line indicates the end of the second programming field.
Switch to programming field 3 by pushing
www.baumer.com
and .
.
.
