Step 4:
Install the head on the shank at marked position.Insert the 3/4"-10 x 5"
hex bolt(#10) through the 3/4" conical washer(#11) and then through the
lower hole in the head channel.Rotate the head forward as far as it will
go. The ball should be vertical or tilted slightly back.If it is not,adjust set
screws(#13).Install the remaining 3/4"-10 x 5" hex bolt(#10) with 3/4"
conical washer(#11) through the upper slotted hole. Install a second 3/4"
conical washer(#11) on both bolts. Start 3/4"-10(#12) nylock nuts and
finger tighten only.
Step 5:
Tighten top 3/4"-10 x 5 hex bolt(#10) just enough to hold head tight
against the pin in the head channel. This bolt will be tightened later.
Step 6: Install spring bars

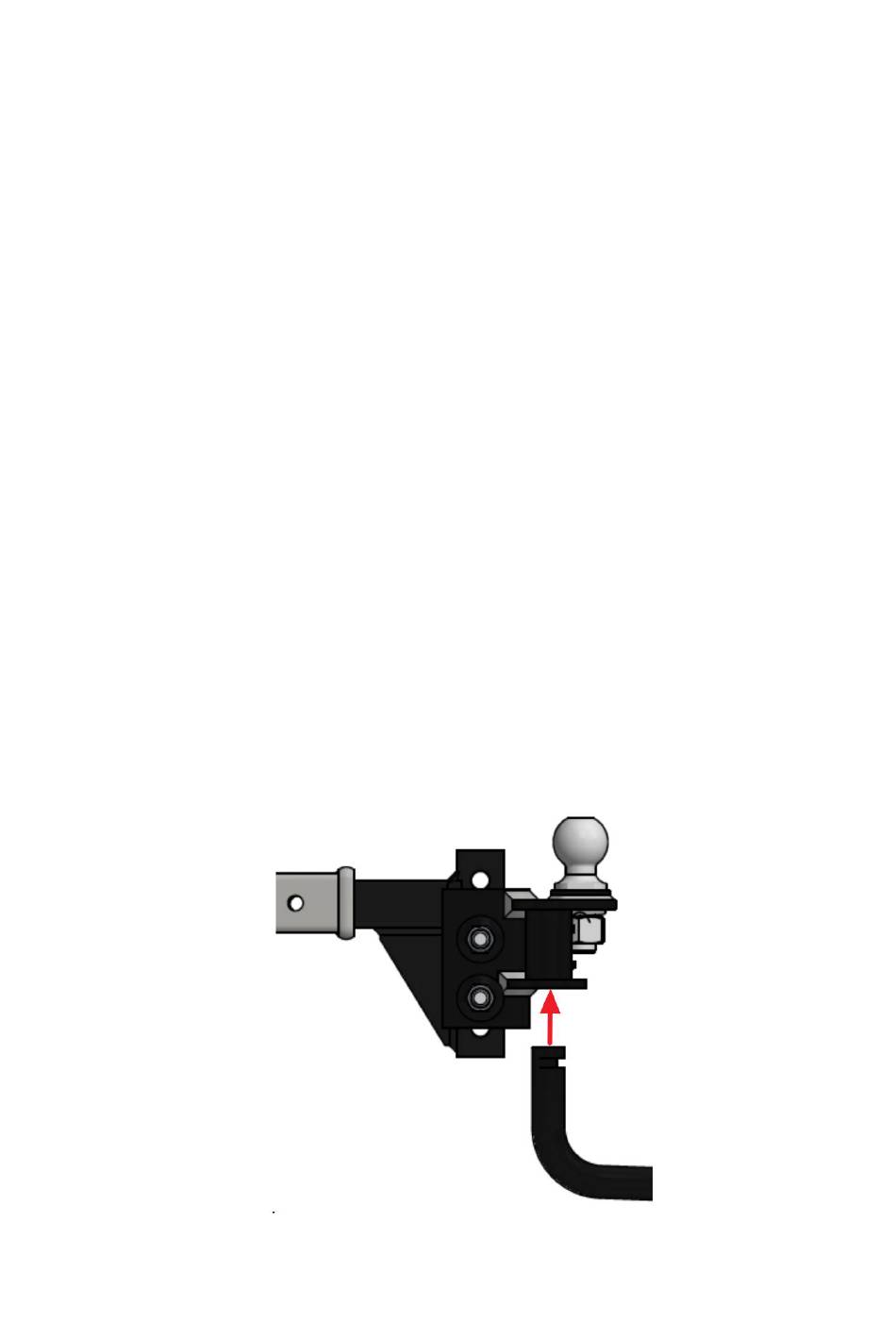

Apply a heavy grease on the round end of each spring bar and push the
end up into the head socket until you hear a click, as shown below. This
will indicate that the spring bar is locked into place. To release the spring
bar, lift up slightly on the spring bar and gently pull out on the retaining
pin in the hitch head. The spring bar will be dropped free of the hitch
head.
