LA 4060CP

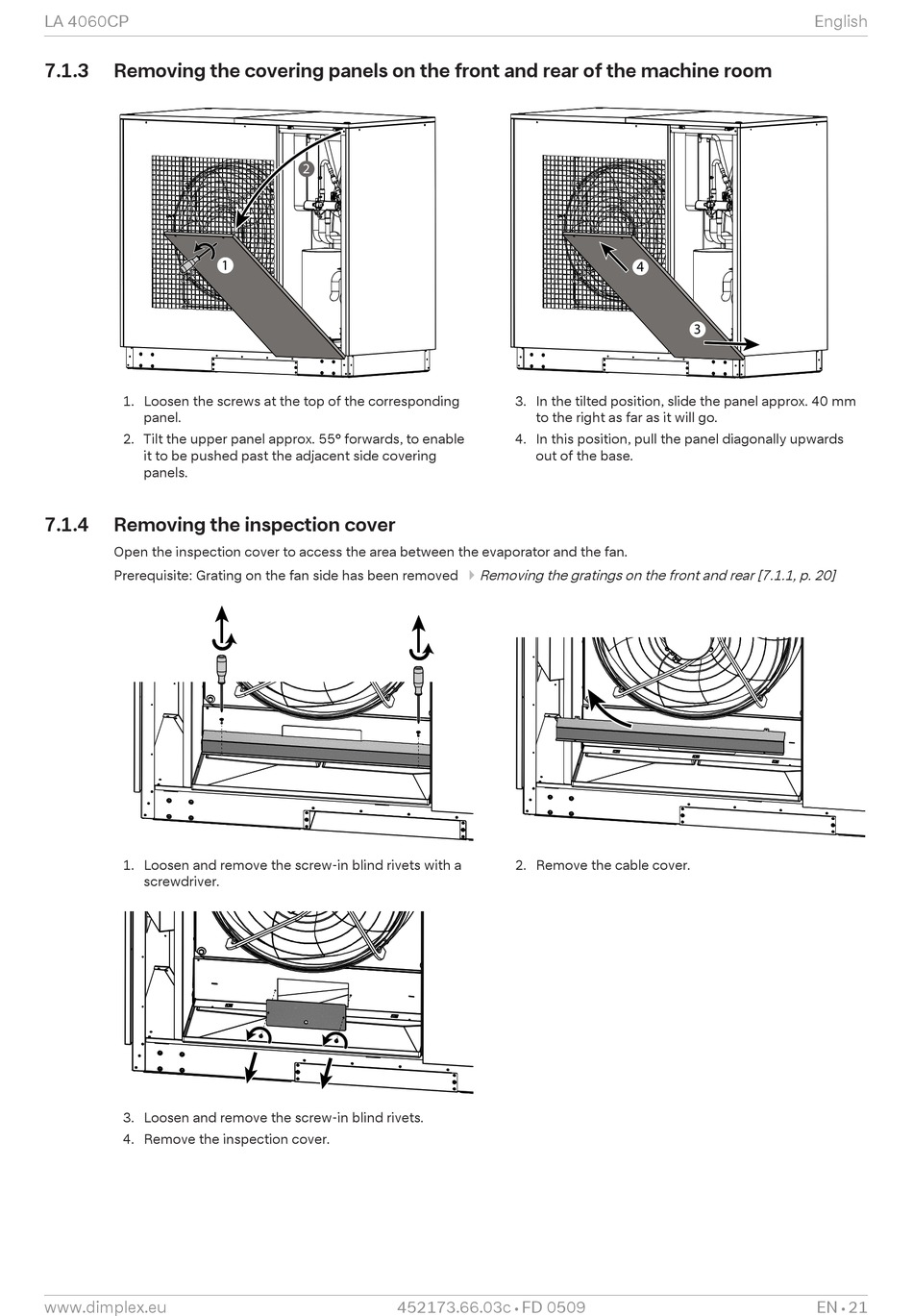

7.1.3

Removing the covering panels on the front and rear of the machine room

1. Loosen the screws at the top of the corresponding
panel.
2. Tilt the upper panel approx. 55° forwards, to enable
it to be pushed past the adjacent side covering
panels.
7.1.4

Removing the inspection cover

Open the inspection cover to access the area between the evaporator and the fan.
Prerequisite: Grating on the fan side has been removed } Removing the gratings on the front and rear [7.1.1, p. 20]
1. Loosen and remove the screw-in blind rivets with a
screwdriver.
3. Loosen and remove the screw-in blind rivets.
4. Remove the inspection cover.
www.dimplex.eu
2
1
3. In the tilted position, slide the panel approx. 40 mm
to the right as far as it will go.
4. In this position, pull the panel diagonally upwards
out of the base.
2. Remove the cable cover.
452173.66.03c FD 0509
•
4
3
English
EN 21
•
