LA 4060CP
8

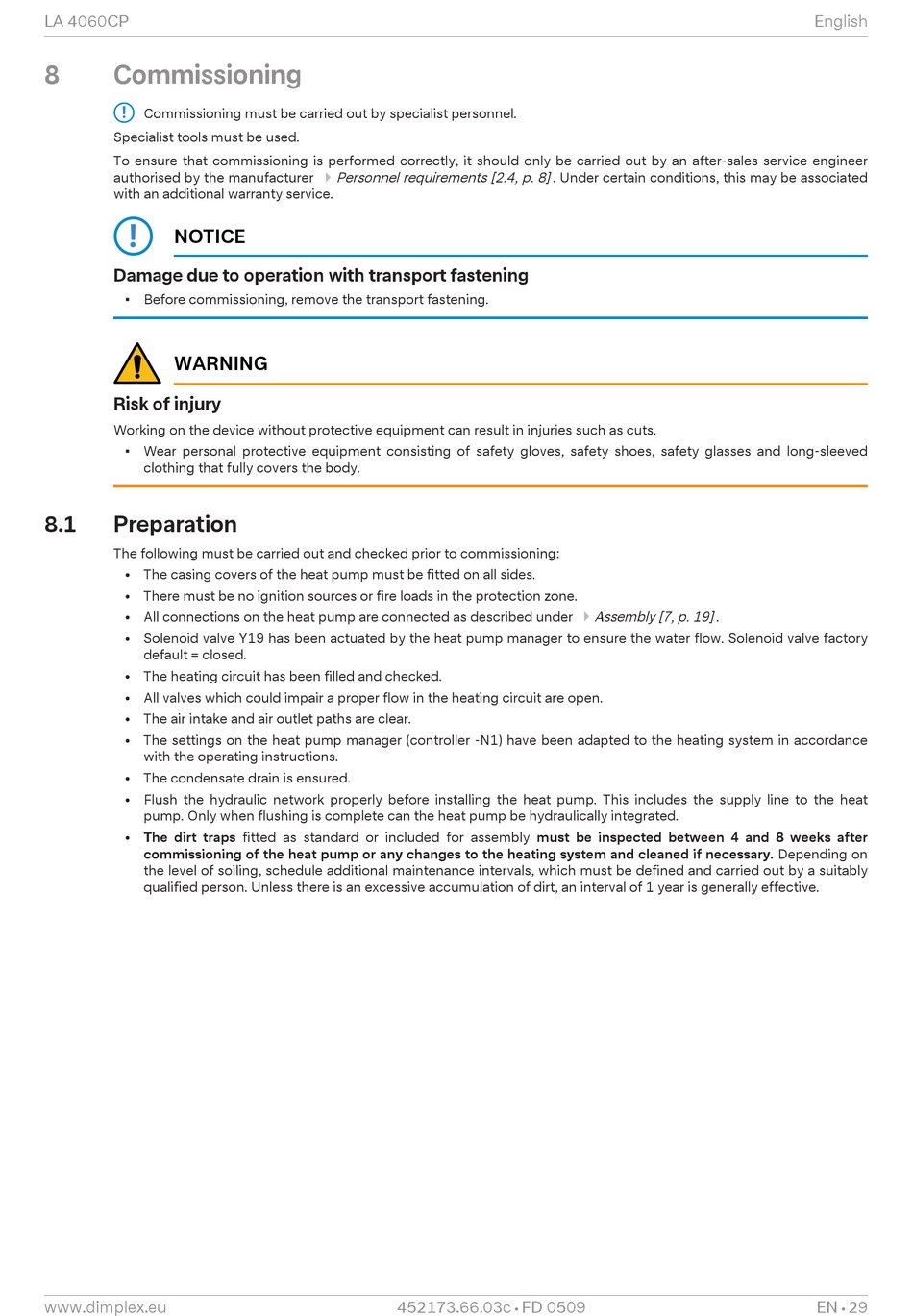

Commissioning

!
Commissioning must be carried out by specialist personnel.
Specialist tools must be used.
To ensure that commissioning is performed correctly, it should only be carried out by an after-sales service engineer
authorised by the manufacturer } Personnel requirements [2.4, p. 8] . Under certain conditions, this may be associated
with an additional warranty service.
!
NOTICE
Damage due to operation with transport fastening
▪ Before commissioning, remove the transport fastening.
WARNING
Risk of injury
Working on the device without protective equipment can result in injuries such as cuts.
▪ Wear personal protective equipment consisting of safety gloves, safety shoes, safety glasses and long-sleeved
clothing that fully covers the body.
8.1

Preparation

The following must be carried out and checked prior to commissioning:
• The casing covers of the heat pump must be fitted on all sides.
• There must be no ignition sources or fire loads in the protection zone.
• All connections on the heat pump are connected as described under } Assembly [7, p. 19] .
• Solenoid valve Y19 has been actuated by the heat pump manager to ensure the water flow. Solenoid valve factory
default = closed.
• The heating circuit has been filled and checked.
• All valves which could impair a proper flow in the heating circuit are open.
• The air intake and air outlet paths are clear.
• The settings on the heat pump manager (controller -N1) have been adapted to the heating system in accordance
with the operating instructions.
• The condensate drain is ensured.
• Flush the hydraulic network properly before installing the heat pump. This includes the supply line to the heat
pump. Only when flushing is complete can the heat pump be hydraulically integrated.
• The dirt traps fitted as standard or included for assembly must be inspected between 4 and 8 weeks after
commissioning of the heat pump or any changes to the heating system and cleaned if necessary. Depending on
the level of soiling, schedule additional maintenance intervals, which must be defined and carried out by a suitably
qualified person. Unless there is an excessive accumulation of dirt, an interval of 1 year is generally effective.
www.dimplex.eu 452173.66.03c FD 0509
•
English
EN 29
•
