Energy-efficient use of the heat pump

Correct design of the heat source system and the heating system is a prerequisite for energy-efficient operation of the
heat pump.
The efficiency of the heat pump depends to a great extent on its operating parameters. Simple changes to user
behaviour and the settings on the device can have a positive influence on efficiency. Here are just a few examples:
• Reduction of system temperature. For example, a 1 degree reduction in the flow temperature cuts the required
electrical energy by around 2.5 %
• Adjustment of temperature in domestic hot water cylinder
• Demand-controlled circulation pump (e.g. pulse regulation)
• Regular maintenance
4

Scope of supply

4.1

Basic device

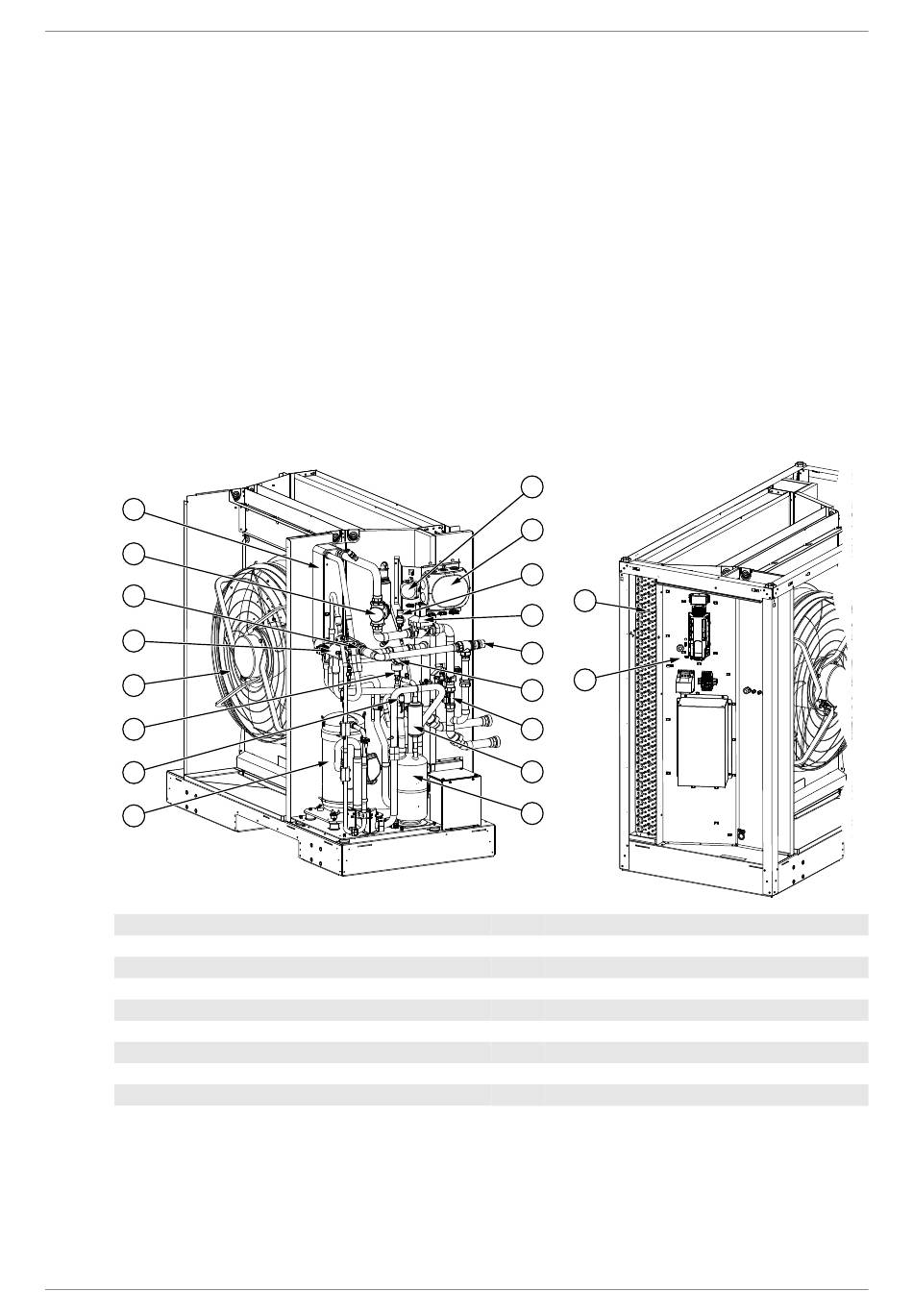

The heat pump contains the components listed below.
R290 (propane) is used as refrigerant.
1
2
3
4
5
6
7
8
1 Liquefier
2 Ventilator
3 Check valve
4 4-way reversing valve
5 Fan
6 Expansion valve
7 Collector
8 Compressor
9 Connection box M16
10 External connection box
EN 10
•
452173.66.03c FD 0509
•
9
10
11
18
12
13
19
14
15
16
17
11 Safety valve
12 Solenoid valve
13 Overflow valve
14 Dirt trap
15 Flow rate sensor
16 Filter dryer
17 Liquid separator
18 Evaporator
19 Switch box
LA 4060CP
