English

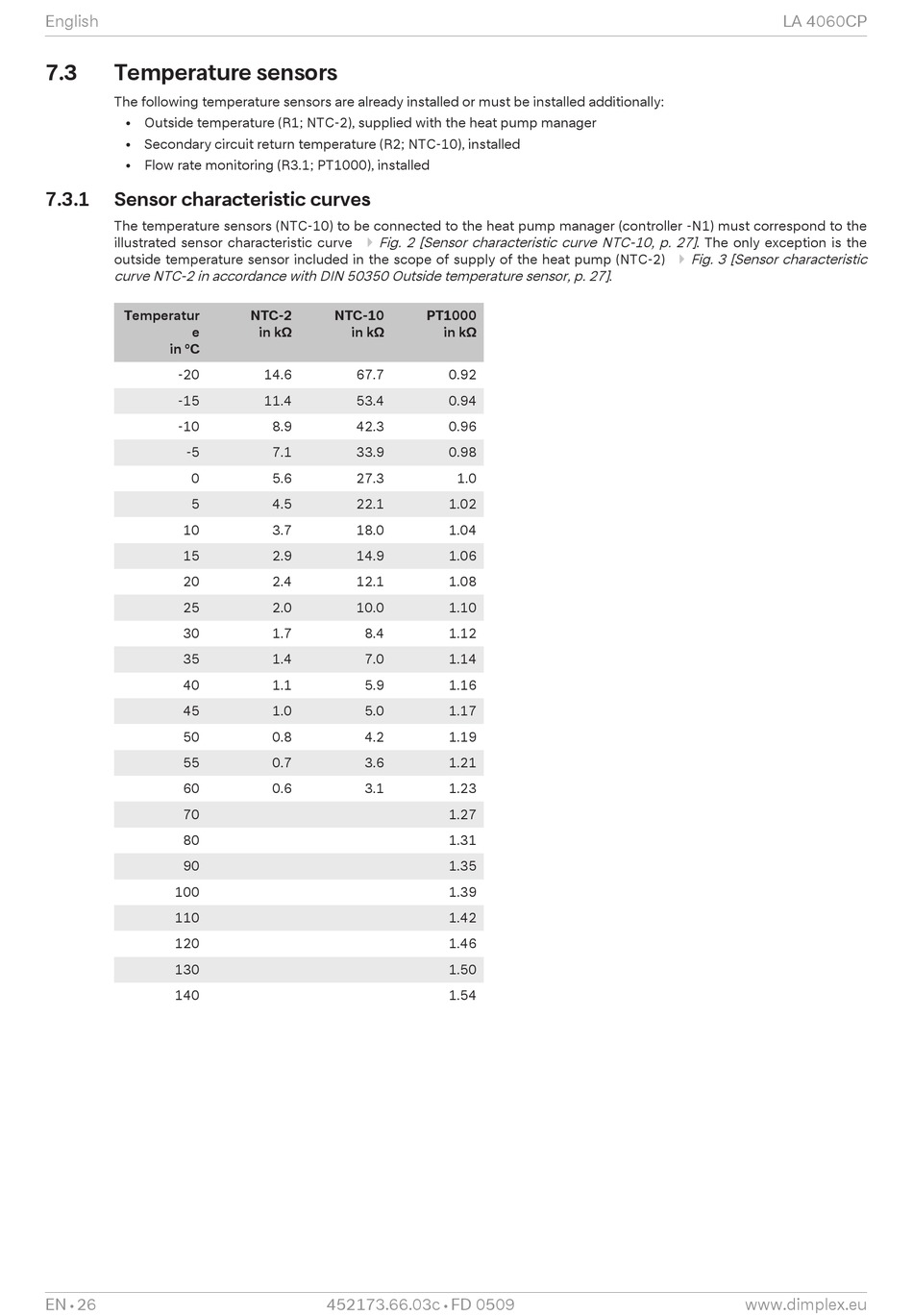

7.3

Temperature sensors

The following temperature sensors are already installed or must be installed additionally:
• Outside temperature (R1; NTC-2), supplied with the heat pump manager
• Secondary circuit return temperature (R2; NTC-10), installed
• Flow rate monitoring (R3.1; PT1000), installed
7.3.1

Sensor characteristic curves

The temperature sensors (NTC-10) to be connected to the heat pump manager (controller -N1) must correspond to the
illustrated sensor characteristic curve
outside temperature sensor included in the scope of supply of the heat pump (NTC-2)
curve NTC-2 in accordance with DIN 50350 Outside temperature sensor, p. 27] .
Temperatur
e
in °C
-20
-15
-10
-5
0
5
10
15
20
25
30
35
40
45
50
55
60
70
80
90
100
110
120
130
140
EN 26
•
}
Fig. 2 [Sensor characteristic curve NTC-10, p. 27] . The only exception is the
NTC-2 NTC-10
in kΩ in kΩ
14.6 67.7
11.4 53.4
8.9 42.3
7.1 33.9
5.6 27.3
4.5 22.1
3.7 18.0
2.9 14.9
2.4 12.1
2.0 10.0
1.7 8.4
1.4 7.0
1.1 5.9
1.0 5.0
0.8 4.2
0.7 3.6
0.6 3.1
452173.66.03c
PT1000
in kΩ
0.92
0.94
0.96
0.98
1.0
1.02
1.04
1.06
1.08
1.10
1.12
1.14
1.16
1.17
1.19
1.21
1.23
1.27
1.31
1.35
1.39
1.42
1.46
1.50
1.54
FD 0509
•
LA 4060CP
} Fig. 3 [Sensor characteristic
