LA 4060CP
7.2.1

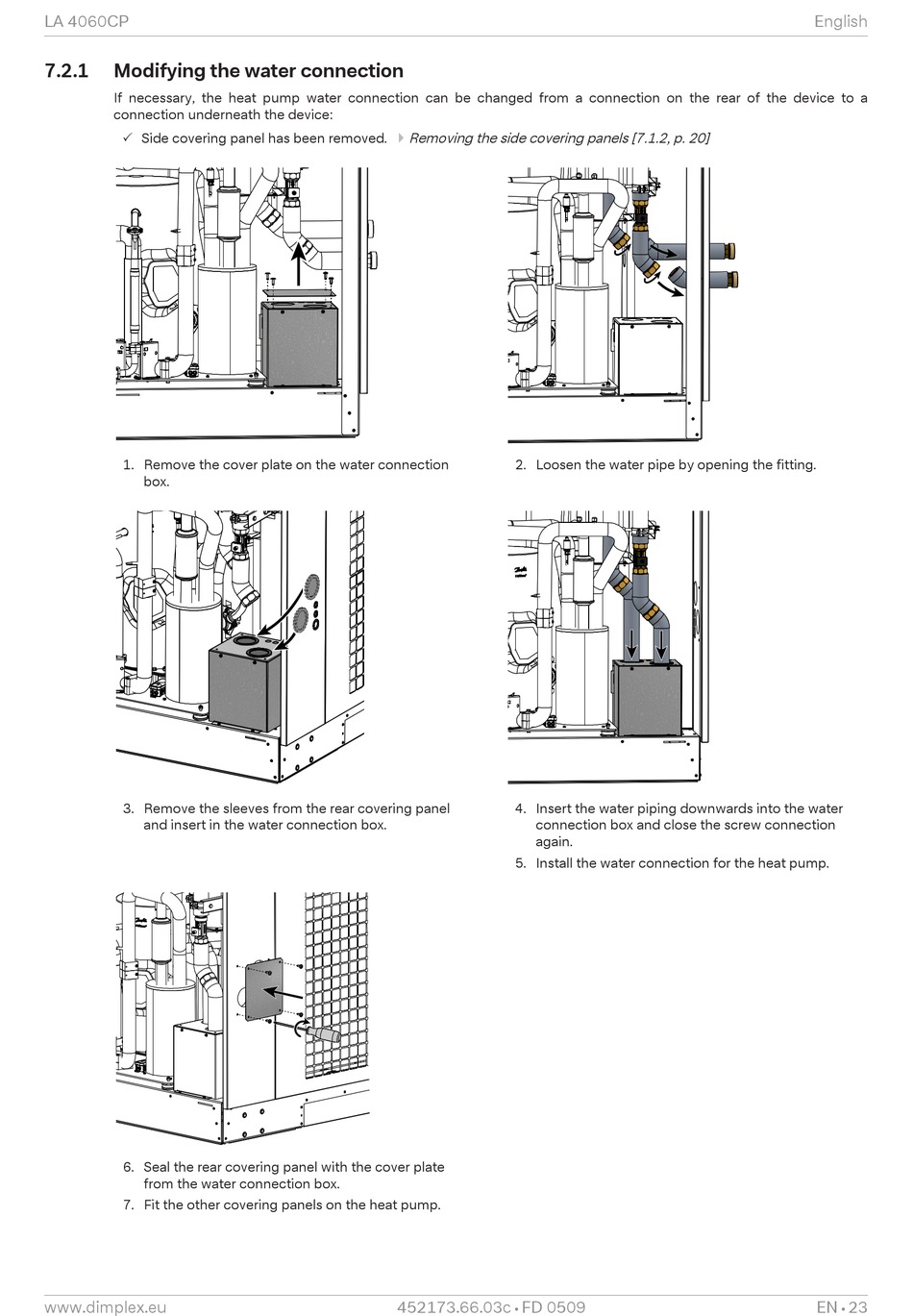

Modifying the water connection

If necessary, the heat pump water connection can be changed from a connection on the rear of the device to a
connection underneath the device:
P Side covering panel has been removed. } Removing the side covering panels [7.1.2, p. 20]
1. Remove the cover plate on the water connection
box.
3. Remove the sleeves from the rear covering panel
and insert in the water connection box.
6. Seal the rear covering panel with the cover plate
from the water connection box.
7. Fit the other covering panels on the heat pump.
www.dimplex.eu
2. Loosen the water pipe by opening the fitting.
4. Insert the water piping downwards into the water
connection box and close the screw connection
again.
5. Install the water connection for the heat pump.
