c) Never grind on the sides of a grinding disc. Lateral grinding can
cause the grindstone to break.
Residual Risks
m The machine has been built according to the state of the art and the
recognised technical safety requirements. However, individual residual
risks can arise during operation.
• Risk of injury for fingers and hands due to the rotating grinding tool.
• Hazard due to electrical power, with the use of improper electrical
connection cables.
• Furthermore, despite all precautions having been met, some non-ob-
vious residual risks may still remain.
• Residual risks can be minimised if the "safety instructions" and the "in-
tended use" are observed along with operating manual in its entirety.

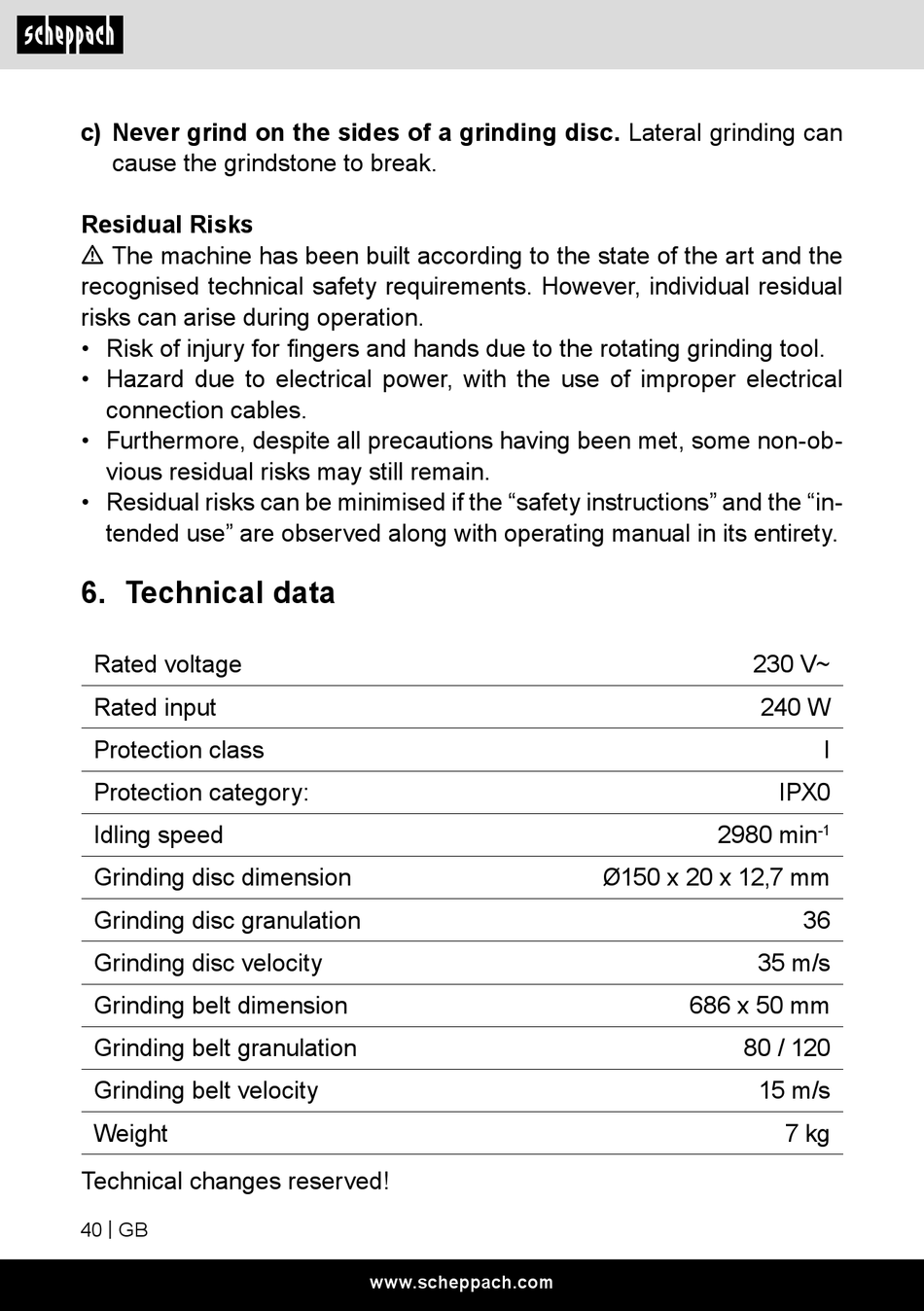

6. Technical data
Rated voltage
Rated input
Protection class
Protection category:
Idling speed
Grinding disc dimension
Grinding disc granulation
Grinding disc velocity
Grinding belt dimension
Grinding belt granulation
Grinding belt velocity
Weight
Technical changes reserved!
40 | GB
www.scheppach.com
230 V~
240 W
2980 min
Ø150 x 20 x 12,7 mm
35 m/s
686 x 50 mm
80 / 120
15 m/s
I
IPX0
-1
36
7 kg
