Remote Control Connection; Remote Control Receiver Placement; Remote Control - Create WIND ROUND Bedienungsanleitung

1. **Light
2. On / off button
3. Fan intensity control
4. Timer
5. Batteries (2 x AAA)
6. **Color temperature
control
7. **Fan intensity control
8. Inverse function

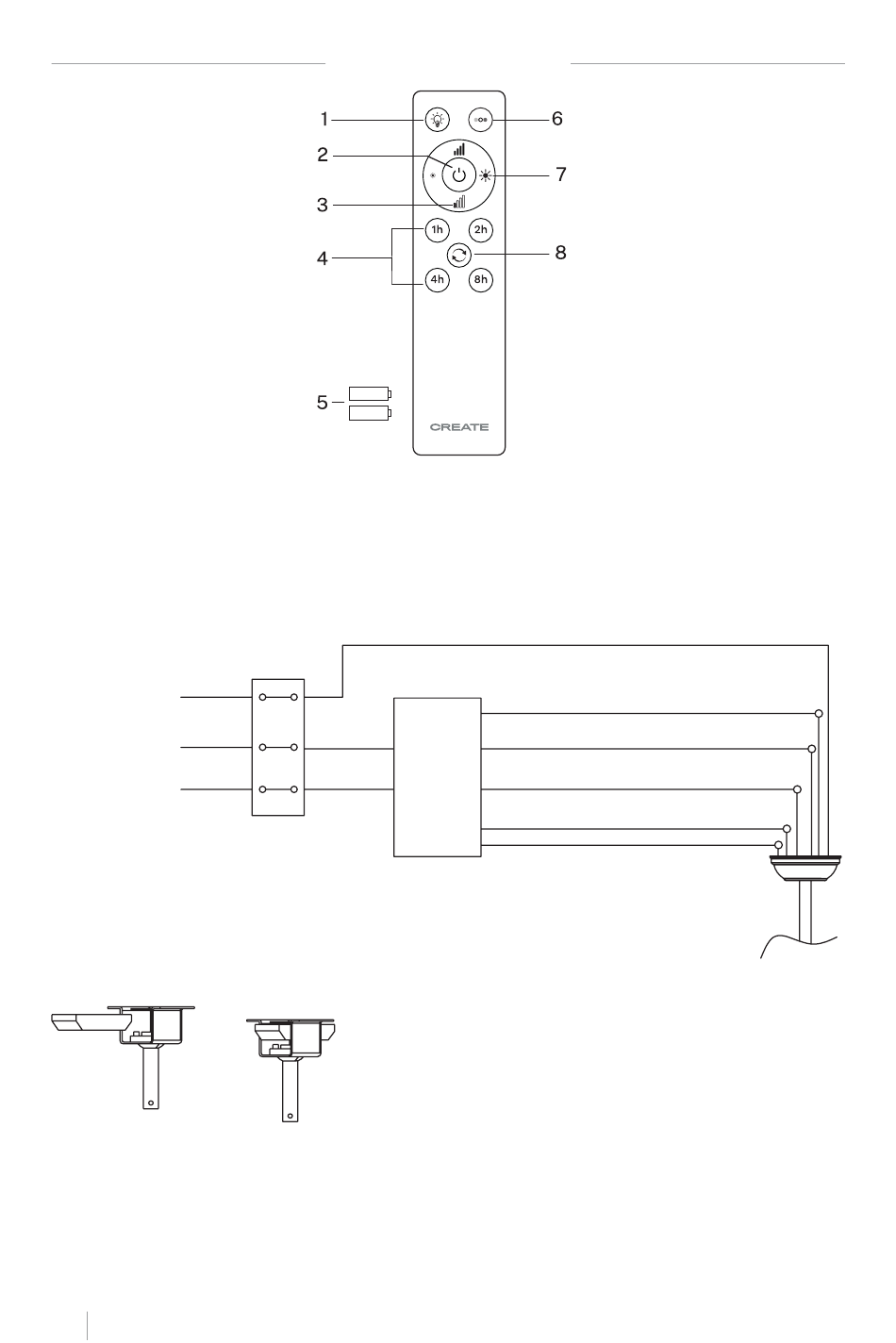

RE MO TE CON TROL CONNECT IO N
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is firm.
Ground wire
L
N
RE MO TE CON TROL RECE IVE R P L ACE M E N T
E NGL I SH
10

REMOTE CONTROL

Ground wire (green / yellow)
L input
(black)
Remote
control
receiver
Input N
(white)
** Function only available
when the LED board is
installed.
Neutral N (white)
L clear (blue)
DC motor L (gray)
DC motor L (pink)
DC motor L (red)
