IN STALL ATION OF T RI M AND CO NNECTI ON PA N E L

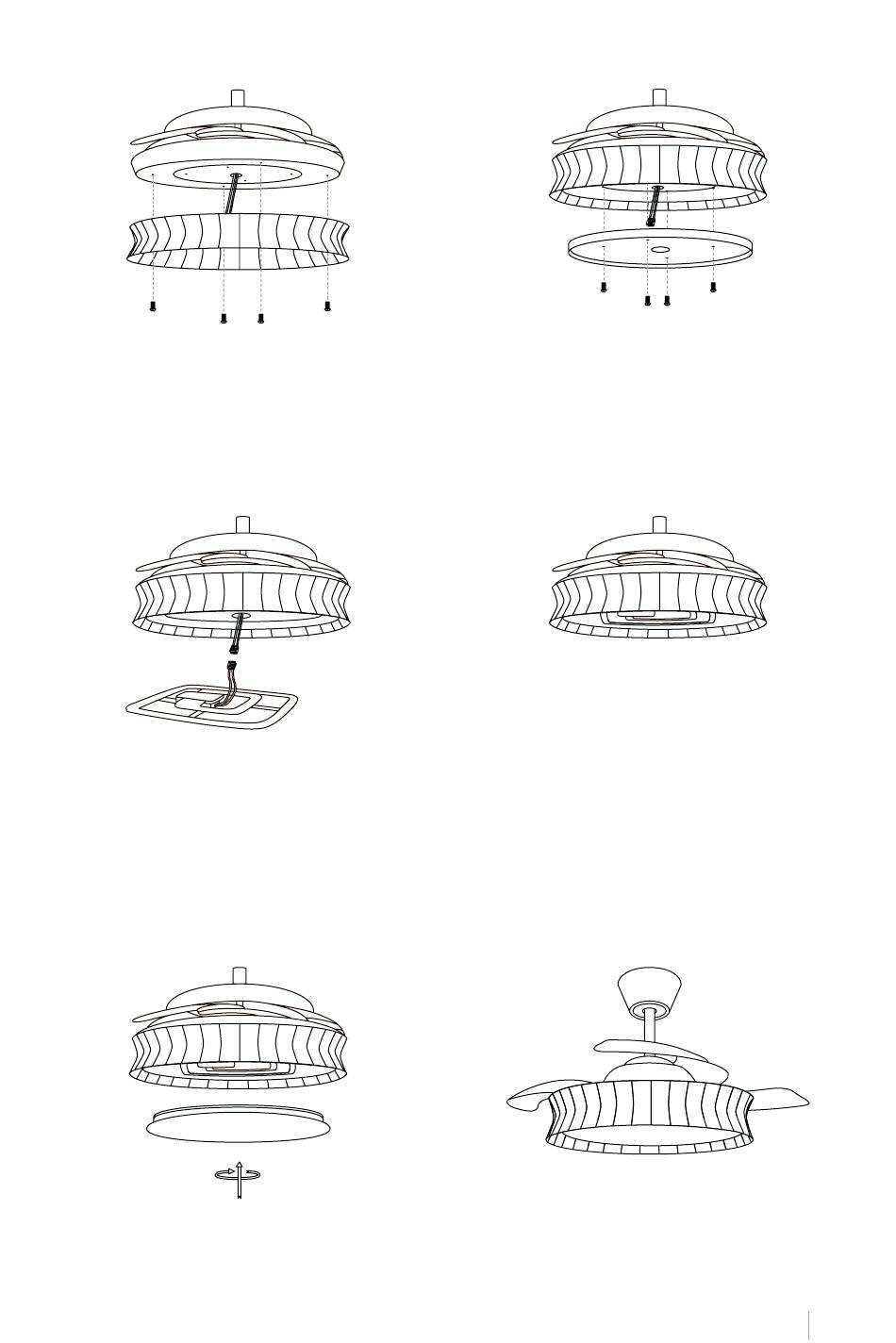

1. Position the decorative lamp shade by alig-
ning the holes with the holes in the motor.
Use the 4 screws to attach it to the motor
body. Before proceeding, make sure it is
securely fastened.
P L ACE M E N T OF TH E L IGH T PANE L
Connect the wires from the connection board with the wires from the LED panel. The LED
panel is magnetised so it attaches to the connection board by simply snapping the two pie-
ces together.
Note: While installing or removing the LED board, be careful not to touch the insulating tabs.
Do not over-tighten the screws or screw them in quickly as this may cause damage to the
insulating tabs.
AT TACH ME N T OF TH E L AMP SH AD E
Make sure that the slot in the lampshade is on the same line as the slot in the fan body, then
turn the lampshade slightly clockwise until it is tight and secure.
2. Remove the 4 screws from the central part
of the fan body. Screw the connection pa-
nel by aligning the holes with the holes in
the motor. Leave the blue and white wires
coming out of the central hole.
