USE AND MAINTENANCE
3.0 USE INSTRUCTIONS
Strictly comply with the following instructions to achieve the best performances.
ATTENTION
It is absolutely essential to disengage the tractor pto, lower the mowing machine, switch off the tractor, ensure that this is
at a complete standstill and remove the key before servicing, adjusting or preparating the implement for work. All assembly
operations must be carried out on a work bench.

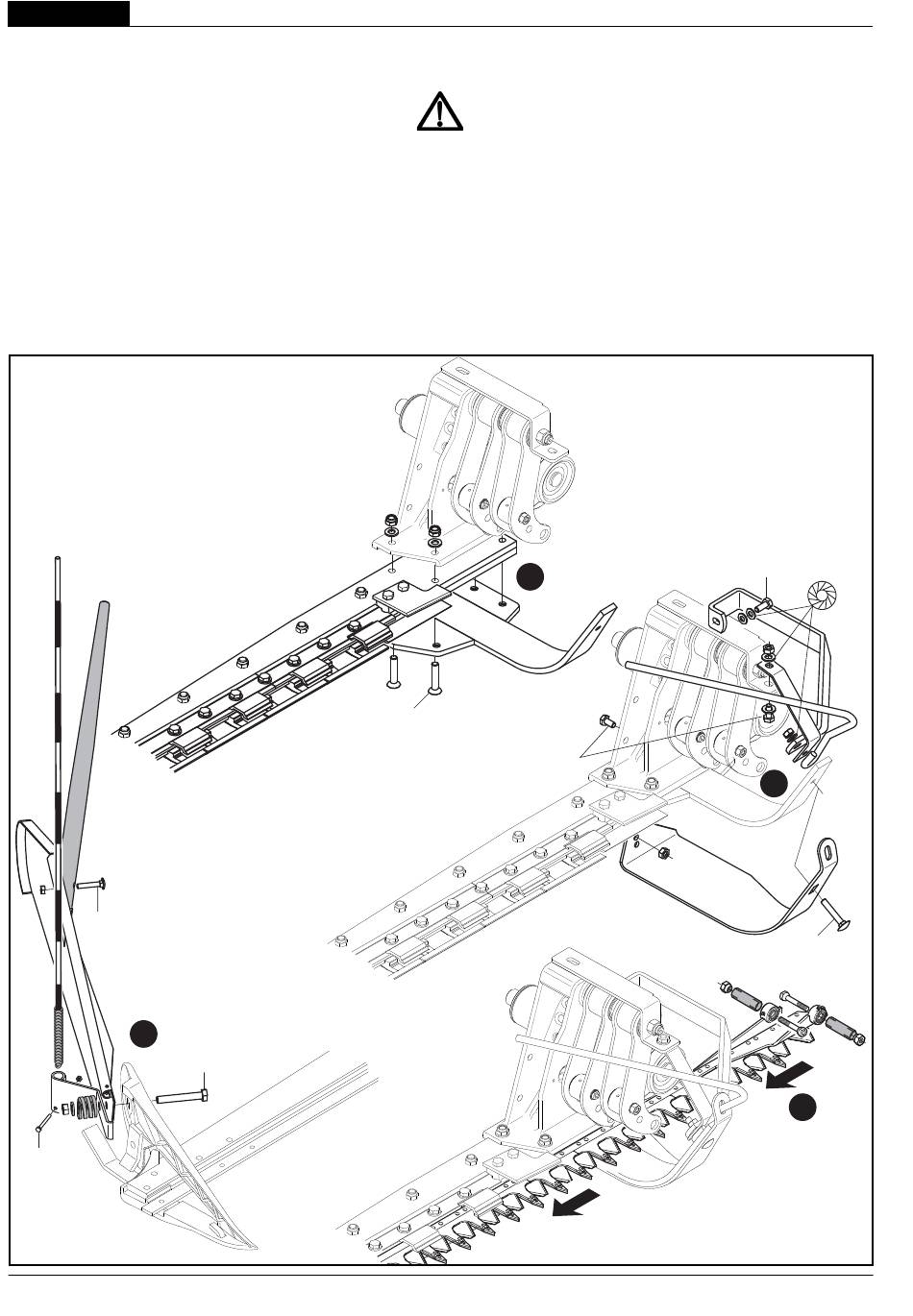

3.0.1 ATTACHING THE CUTTING ARM TO THE CHASSIS
M10 x 25
1
M12 x 60 (x4)
M10 x 25
2
M8 x 40
M10 x 60
4
M12 x 80
3
M4 x 35
Fig. 12

