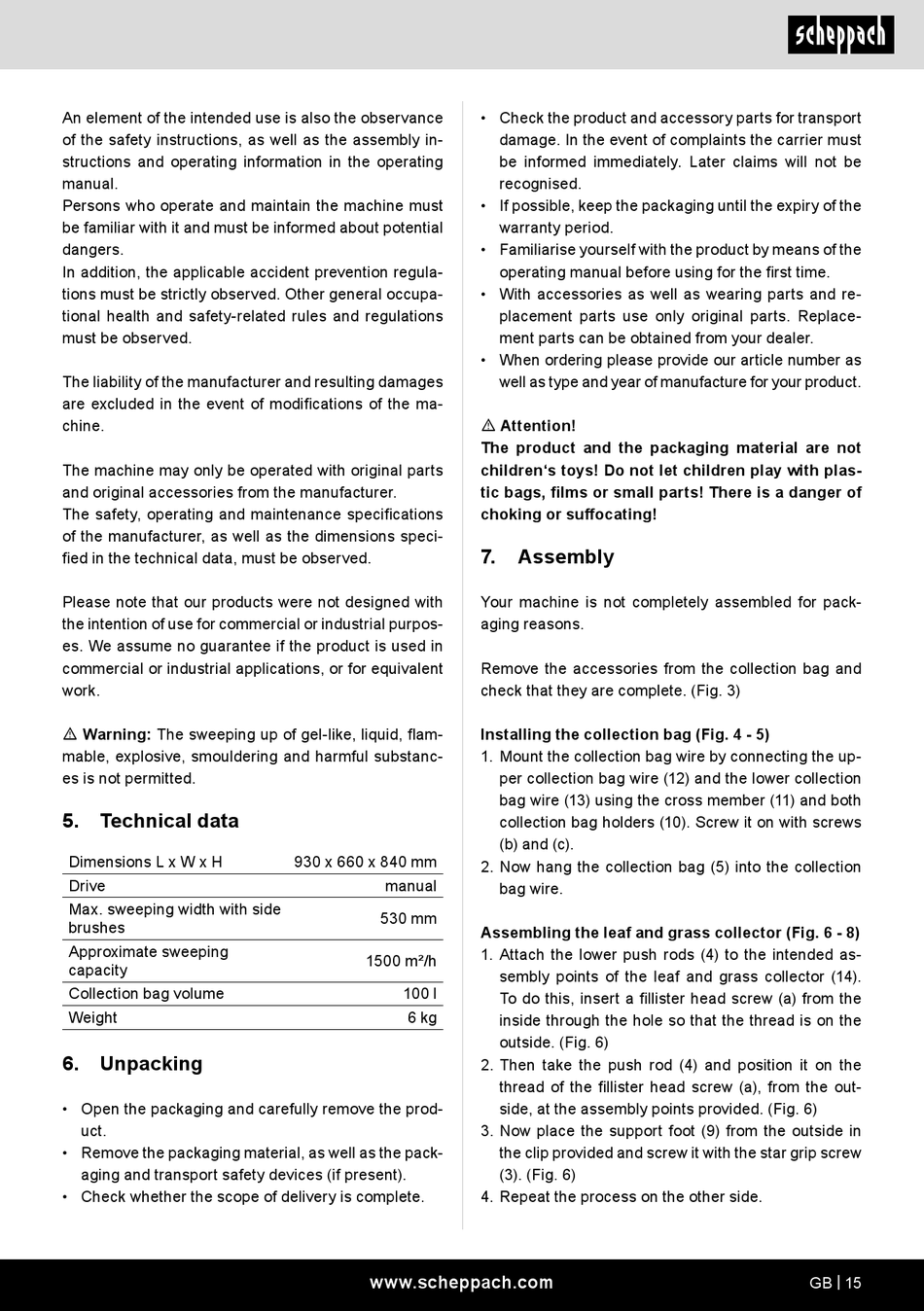

An element of the intended use is also the observance
of the safety instructions, as well as the assembly in-
structions and operating information in the operating
manual.
Persons who operate and maintain the machine must
be familiar with it and must be informed about potential
dangers.
In addition, the applicable accident prevention regula-
tions must be strictly observed. Other general occupa-
tional health and safety-related rules and regulations
must be observed.
The liability of the manufacturer and resulting damages
are excluded in the event of modifications of the ma-
chine.
The machine may only be operated with original parts
and original accessories from the manufacturer.
The safety, operating and maintenance specifications
of the manufacturer, as well as the dimensions speci-
fied in the technical data, must be observed.
Please note that our products were not designed with
the intention of use for commercial or industrial purpos-
es. We assume no guarantee if the product is used in
commercial or industrial applications, or for equivalent
work.
m Warning: The sweeping up of gel-like, liquid, flam-
mable, explosive, smouldering and harmful substanc-
es is not permitted.
5. Technical data
Dimensions L x W x H
Drive
Max. sweeping width with side
brushes
Approximate sweeping
capacity
Collection bag volume
Weight
6. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
930 x 660 x 840 mm
manual
530 mm
1500 m²/h
100 l
6 kg
www.scheppach.com
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your product.
m Attention!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
7.
Assembly
Your machine is not completely assembled for pack-
aging reasons.
Remove the accessories from the collection bag and
check that they are complete. (Fig. 3)
Installing the collection bag (Fig. 4 - 5)
1. Mount the collection bag wire by connecting the up-
per collection bag wire (12) and the lower collection
bag wire (13) using the cross member (11) and both
collection bag holders (10). Screw it on with screws
(b) and (c).
2. Now hang the collection bag (5) into the collection
bag wire.
Assembling the leaf and grass collector (Fig. 6 - 8)
1. Attach the lower push rods (4) to the intended as-
sembly points of the leaf and grass collector (14).
To do this, insert a fillister head screw (a) from the
inside through the hole so that the thread is on the
outside. (Fig. 6)
2. Then take the push rod (4) and position it on the
thread of the fillister head screw (a), from the out-
side, at the assembly points provided. (Fig. 6)
3. Now place the support foot (9) from the outside in
the clip provided and screw it with the star grip screw
(3). (Fig. 6)
4. Repeat the process on the other side.
GB | 15
