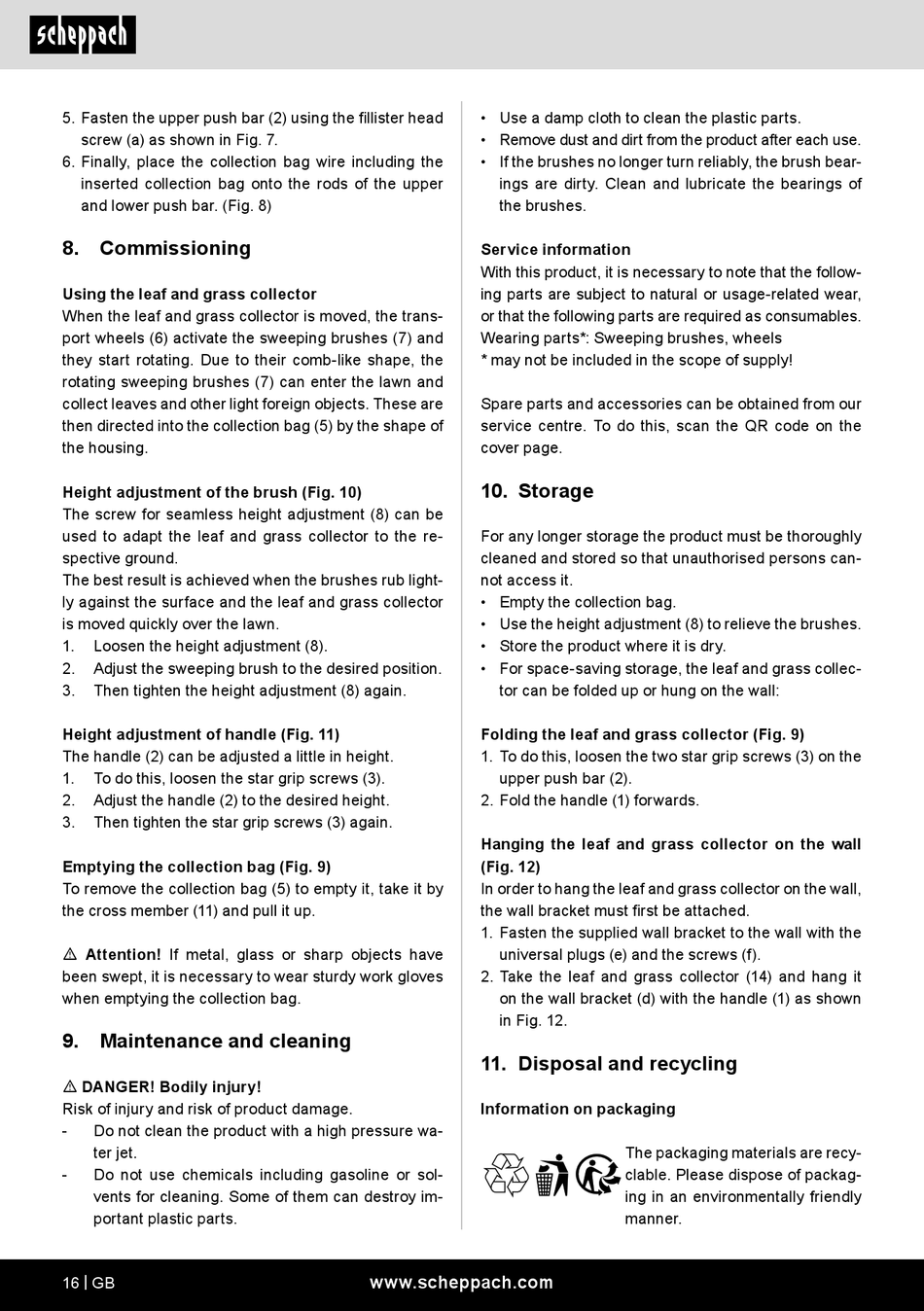

5. Fasten the upper push bar (2) using the fillister head
screw (a) as shown in Fig. 7.
6. Finally, place the collection bag wire including the
inserted collection bag onto the rods of the upper
and lower push bar. (Fig. 8)
8. Commissioning
Using the leaf and grass collector
When the leaf and grass collector is moved, the trans-
port wheels (6) activate the sweeping brushes (7) and
they start rotating. Due to their comb-like shape, the
rotating sweeping brushes (7) can enter the lawn and
collect leaves and other light foreign objects. These are
then directed into the collection bag (5) by the shape of
the housing.
Height adjustment of the brush (Fig. 10)
The screw for seamless height adjustment (8) can be
used to adapt the leaf and grass collector to the re-
spective ground.
The best result is achieved when the brushes rub light-
ly against the surface and the leaf and grass collector
is moved quickly over the lawn.
1.
Loosen the height adjustment (8).
2.
Adjust the sweeping brush to the desired position.
3.
Then tighten the height adjustment (8) again.
Height adjustment of handle (Fig. 11)
The handle (2) can be adjusted a little in height.
1.
To do this, loosen the star grip screws (3).
2.
Adjust the handle (2) to the desired height.
3.
Then tighten the star grip screws (3) again.
Emptying the collection bag (Fig. 9)
To remove the collection bag (5) to empty it, take it by
the cross member (11) and pull it up.
m Attention! If metal, glass or sharp objects have
been swept, it is necessary to wear sturdy work gloves
when emptying the collection bag.
9.
Maintenance and cleaning
m DANGER! Bodily injury!
Risk of injury and risk of product damage.
-
Do not clean the product with a high pressure wa-
ter jet.
-
Do not use chemicals including gasoline or sol-
vents for cleaning. Some of them can destroy im-
portant plastic parts.
16 | GB
• Use a damp cloth to clean the plastic parts.
• Remove dust and dirt from the product after each use.
• If the brushes no longer turn reliably, the brush bear-
ings are dirty. Clean and lubricate the bearings of
the brushes.
Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consumables.
Wearing parts*: Sweeping brushes, wheels
* may not be included in the scope of supply!
Spare parts and accessories can be obtained from our
service centre. To do this, scan the QR code on the
cover page.
10. Storage
For any longer storage the product must be thoroughly
cleaned and stored so that unauthorised persons can-
not access it.
• Empty the collection bag.
• Use the height adjustment (8) to relieve the brushes.
• Store the product where it is dry.
• For space-saving storage, the leaf and grass collec-
tor can be folded up or hung on the wall:
Folding the leaf and grass collector (Fig. 9)
1. To do this, loosen the two star grip screws (3) on the
upper push bar (2).
2. Fold the handle (1) forwards.
Hanging the leaf and grass collector on the wall
(Fig. 12)
In order to hang the leaf and grass collector on the wall,
the wall bracket must first be attached.
1. Fasten the supplied wall bracket to the wall with the
universal plugs (e) and the screws (f).
2. Take the leaf and grass collector (14) and hang it
on the wall bracket (d) with the handle (1) as shown
in Fig. 12.
11. Disposal and recycling
Information on packaging
www.scheppach.com
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
